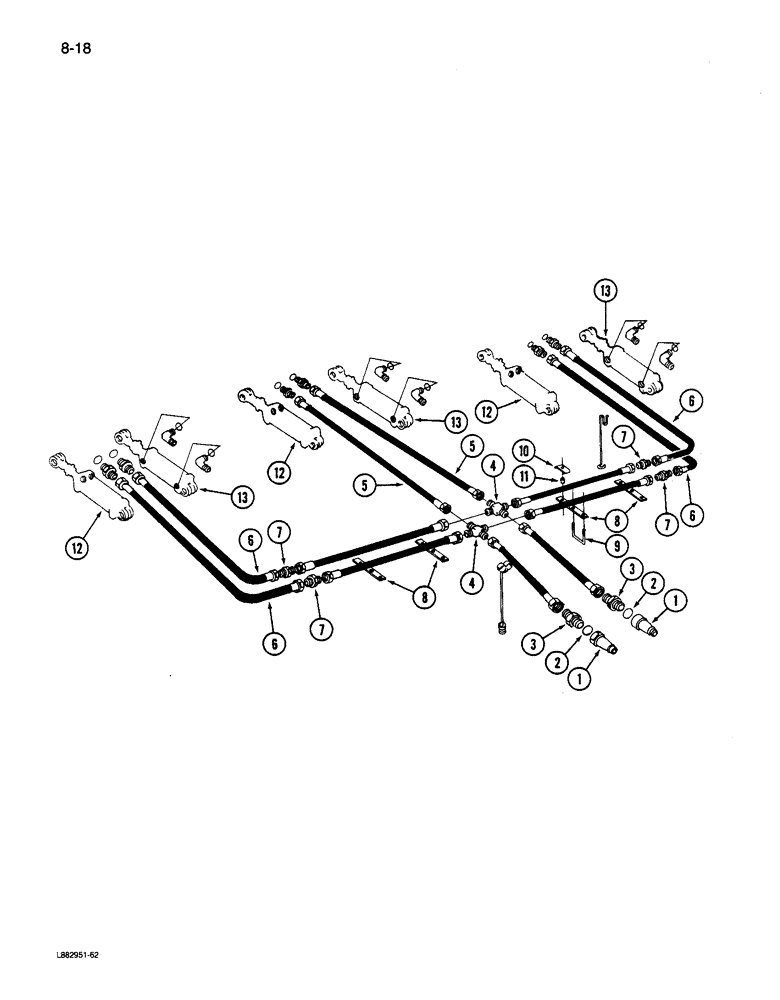

Запчасти Case IH 6200 (8-18) - HYDRAULIC LIFT SYSTEM THREE DRILL (08) - HYDRAULICS

1

395149R1

QUICK MALE COUPLING

COUPLER - hose, male (Optional with 544787R91)

2шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER - hose male (Optional with 395149R91)

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube

2шт.

3

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - short reducer, 1/2 tube 3/4-16 x 5/8 tube 7/8-1

2шт.

4

9403177

4 WAY CONNECTION,3/4"-16, 37 Degree

CROSS - 3/4-16 flared

2шт.

5

675984R91

HOSE

ASSEMBLY - 3/8 x 80 inch

2шт.

6

179411C1

HOSE

ASSEMBLY - 3/8 x 61 inch (Replaces 675987R91 16x6, 14x6)

4шт.

6

819992C1

HOSE

ASSEMBLY - 3/8 x 128 inch (24x7, 28x6)

4шт.

7

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - 3/8-16 inch flared

4шт.

8

819854C1

BAR

- hose support (Not 14x6)

4шт.

9

811627C1

BOLT

U-BOLT - hose support (Not 14x6)

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

8шт.

10

379045R1

CLAMP

- hose

4шт.

180085

SPRING

- hex, 5/16 NC x 1-3/4 inch

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

11

618631R1

SPACER

- hose clamp

4шт.

20893R1

WASHER

- flat, 11/32 x 1 x 7/64 inch (14x6)

4шт.

12

371291R97

CYLINDER

ASSEMBLY - lift (Replaced by 145353C91) (See Note B)

3шт.

363137R94

PACKAGE

KIT - service, O-ring and seal

1шт.

12

145353C91

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - lift (See Note B)

3шт.

79975C1

SEAL KIT

KIT - cylinder repair, O-ring and seal

1шт.

224311C1

KIT

- valve and transfer tube (replaces 1272597C91)

1шт.

61571C1

PIN

- headed, 1 x 3-1/4 inch

6шт.

520175R1

CLIP

PIN - hair

6шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER - 3/4-16 male x 7/8-14 inch female O-ring boss

6шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32 inch

4шт.

13

844025C92

CYLINDER

ASSEMBLY - hydraulic (See Note B)

2шт.

844042C91

PACKAGE

KIT - cylinder repair, O-ring and seal

1шт.

13

1272402C91

CYLINDER,Double Acting, 31.7mm Rod, 203.2mm Stroke

ASSEMBLY - hydraulic with O-ring ports (See Note B)

2шт.

79975C1

SEAL KIT

KIT - cylinder repair, O-ring and seal

1шт.

844098C91

COLLAR

- stroke control

3шт.

Ref #13 - 844098C91 is for 1 1/8" Rod.

1шт.
