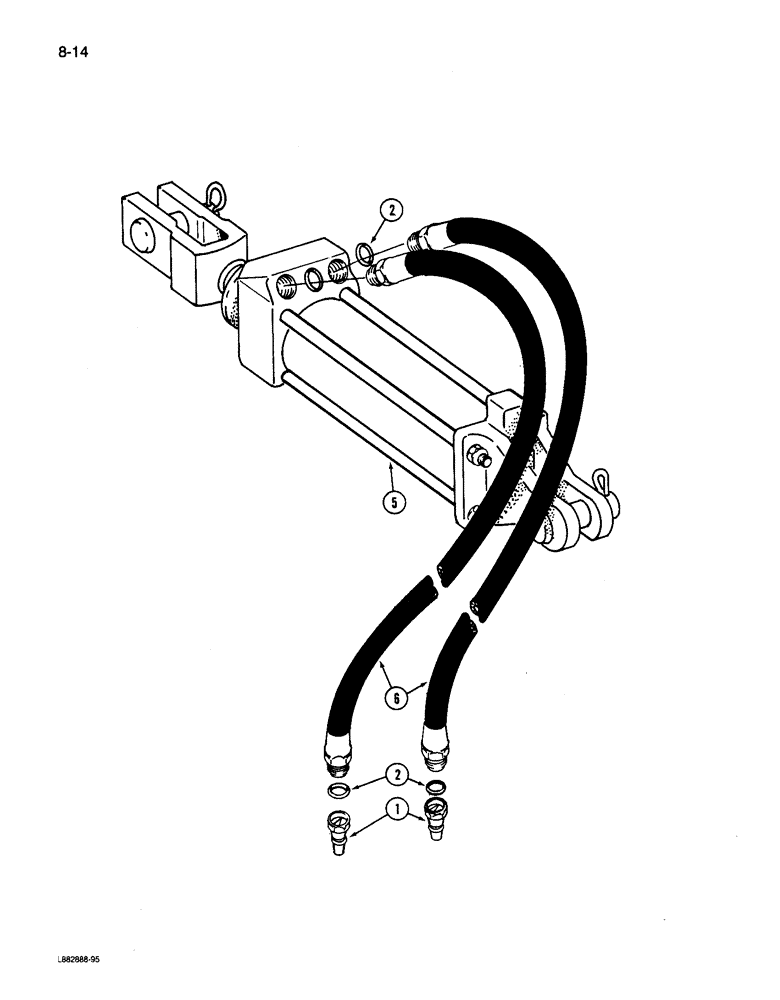

Запчасти Case IH 6200 (8-14) - HYDRAULIC LIFT SYSTEM SINGLE DRILL (08) - HYDRAULICS

1

395149R1

QUICK MALE COUPLING

COUPLER - hose, male (Optional with 544787R91)

2шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male (Optional with 395149R1)

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube

4шт.

5

371291R97

CYLINDER

ASSEMBLY - lift (Replaced by 145353C91) (See Note)

1шт.

363137R94

PACKAGE

KIT - service, O-ring and seal

1шт.

5

145353C91

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - lift (Replaces 371291R97) (See Note)

1шт.

79975C2

SEAL KIT

KIT - service, O-ring and seal

1шт.

224311C1

KIT

- valve and transfer tube (replaces 1272597C91)

1шт.

61571C1

PIN

- headed, 1 x 3-1/4 inch

1шт.

64560C1

HEADED PIN

PIN - headed, 1 x 3 inch

1шт.

520175R1

CLIP

PIN - hair, 2-1/4 inch

2шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER - 3/4-16 male x 7/8-14 inch female O-ring boss

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32 inch

2шт.

6

372570R91

HOSE ASSY.

HOSE - hydraulic, 152 inch long

2шт.
