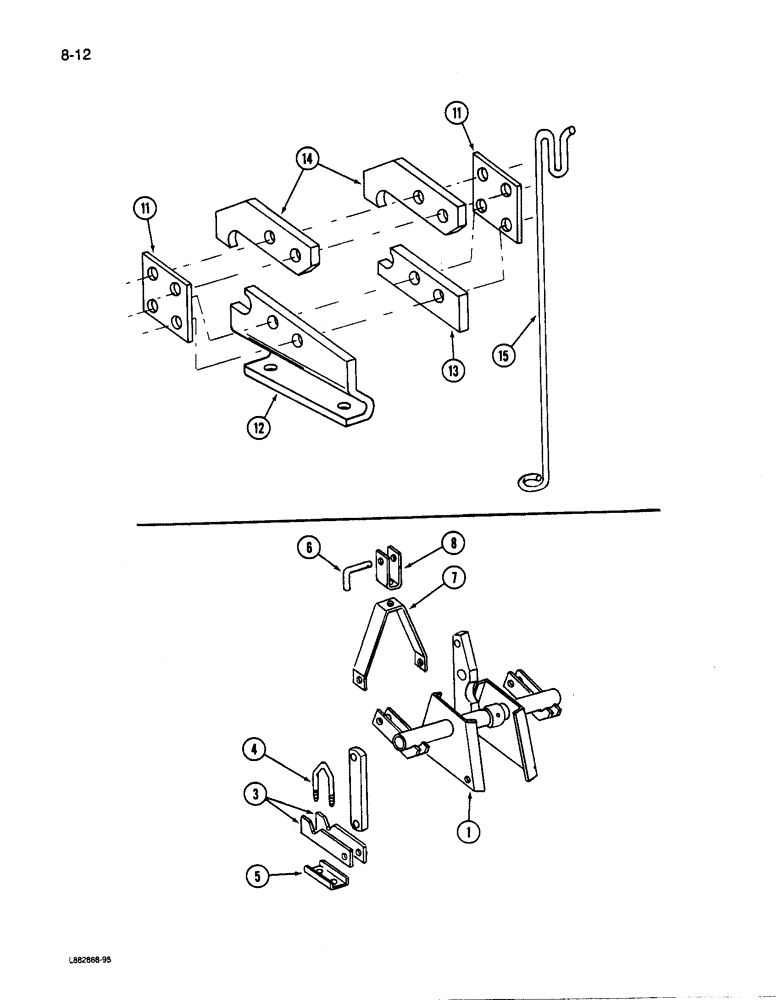

Запчасти Case IH 6200 (8-12) - HYDRAULIC LIFT, 14 X 6 AND 16 X 6, WITH REMOTE CONTROL HYDRAULICS (08) - HYDRAULICS

1

816382C3

ROCKSHAFT

- hydraulic lift

1шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

2

816391C1

BAR

- rockshaft connecting

2шт.

27-10161

CLEVIS PIN,5/8" x 1.610"

PIN - headed, 5/8 x 1-39/64 inch

2шт.

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

21782R1

WASHER

- flat, 21/32 1-1/2 x 3/64 inch

2шт.

3

816392C1

ARM

- rockshaft lift

4шт.

27-10161

CLEVIS PIN,5/8" x 1.610"

PIN - headed, 5/8 x 1-39/64 inch

2шт.

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 3/64 inch

2шт.

4

603392R1

BOLT,U, 5/8" - 11 x 3 9/16"

U-BOLT - lift arm clamp

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

5

603393R1

CHANNEL

- lift arm clamp

2шт.

6

600829R2

ROD

- cylinder lock

1шт.

520175R1

CLIP

PIN - hair

1шт.

7

816394C1

YOKE

- hydraulic lift lock

1шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

8

816395C1

YOKE

- rockshaft lock

1шт.

17585R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

- hex, 5/8 NC x 2-1/2 inch

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

11

819262C2

LEDGER PLATE

PLATE - mounting bracket tie, hyd. cyl. parts

2шт.

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch, hyd. cyl mounting parts

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Hyd. cylinder mounting parts 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC, hyd. cyl. mounting parts

2шт.

12

819247C1

BRACKET

- cylinder mounting, hyd. parts

1шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Hyd. cyl. mounting parts Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Hyd. cylinder mounting parts 1/2"

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

Hyd. cyl. mounting parts 1/2"-13, G5

2шт.

13

819248C1

BAR

- cylinder mounting, hyd. parts

1шт.

14

819383C1

RETAINER

- cylinder, hyd. mounting parts

2шт.

21957R1

HEADED PIN,5/8" x 2"

PIN - headed, 5/8 x 2 inch, hyd. cyl. mounting parts

1шт.

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), , Hyd. cyl. mounting parts 3/16" x 1"

1шт.

15

651793R2

SUPPORT

ROD - hose support, hyd. cyl. mounting parts

1шт.

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Hyd. cyl. mounting parts Hex, 5/8"-11 x 2", G5

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Hyd. cylinder mounting parts 5/8"

1шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch, hyd. cyl. mounting parts

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC, hyd. cyl. mounting parts

1шт.
