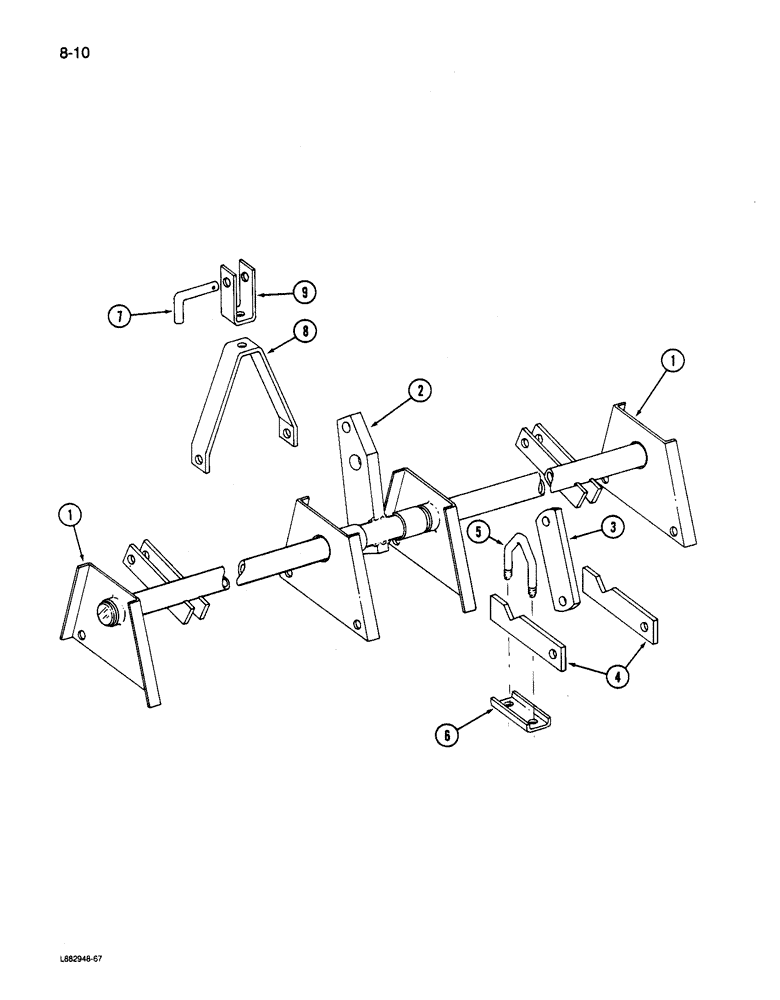

Запчасти Case IH 6200 (8-10) - HYDRAULIC LIFT, WITH REMOTE CONTROL HYDRAULICS (08) - HYDRAULICS

1

816381C1

BRACKET

- hydraulic cylinder rockshaft

2шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

2

816383C3

ROCKSHAFT

- hydraulic lift (20x6 and 16x8)

1шт.

2

819074C1

SHAFT

ROCKSHAFT - hydraulic lift (24x6, 28x6 and 20x7)

1шт.

2

819069C1

SHAFT

ROCKSHAFT - hydraulic lift (24x7)

1шт.

3

816391C1

BAR

- rockshaft connecting

2шт.

27-10161

CLEVIS PIN,5/8" x 1.610"

PIN - headed, 5/8 x 1-39/64 inch

2шт.

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 3/64 inch

2шт.

4

816392C1

ARM

- rockshaft lift

4шт.

27-10161

CLEVIS PIN,5/8" x 1.610"

PIN - headed, 5/8 x 1-39/64 inch

2шт.

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 3/64 inch

2шт.

5

603392R1

BOLT,U, 5/8" - 11 x 3 9/16"

U-BOLT - lift arm clamp

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

6

603393R1

CHANNEL

- lift arm clamp

2шт.

7

600829R2

ROD

- cylinder lock

1шт.

520175R1

CLIP

PIN - hair

1шт.

8

816394C1

YOKE

- hydraulic lift lock

1шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

9

816395C1

YOKE

- rockshaft lock

1шт.

17585R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

- hex, 5/8 NC x 2-1/2 inch

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

1шт.

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.
