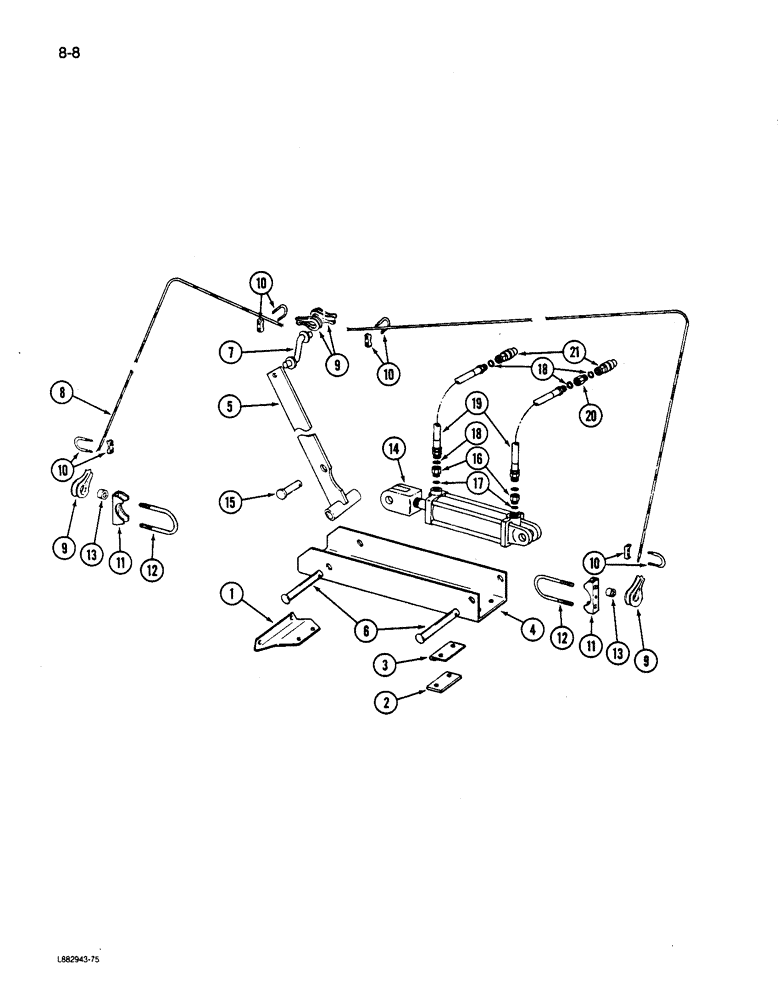

Запчасти Case IH 6200 (8-08) - MARKER HYDRAULIC SYSTEM, CABLE CONTROLLED MARKER (08) - HYDRAULICS

1

819050C1

SUPPORT

- cylinder channel

1шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

2

819042C1

BAR

- cylinder channel spacer

1шт.

3

819081C1

SUPPORT

- cylinder channel spacer

1шт.

4

819051C1

CHANNEL

- cylinder

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

5

819049C1

ARM

- cable crank

1шт.

6

651029R1

HEADED PIN,1" x 6 5/8"

PIN - headed, 1 x 6-5/8 inch

2шт.

471194R1

AXLE PIN

PIN - hair

2шт.

614451R1

WASHER

- flat, 1-1/32 x 1-3/4 x 3/32 inch

2шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

1шт.

7

819969C1

ROD

- cable crank

1шт.

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 3/64 inch

4шт.

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

8

819052C2

CABLE

- 25 foot marker lift

1шт.

8

819053C1

CABLE

- 18 foot marker lift

1шт.

9

819054C1

EYE

THIMBLE - cable 3/16 inch

4шт.

10

819055C1

CLAMP

- cable, 3/16 inch

8шт.

11

549902C91

CLAMP

SADDLE - marker tube clamp

2шт.

12

596521R2

BOLT,U, 5/16" - 24 x 3 3/4"

U-BOLT - marker disc tube

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

- 11/32 x 3/4 x 3/64 inch

8шт.

129-122

NUT,5/16"-24, G5

4шт.

13

86224H

SPACER,1/4" Pipe x 3/8"

4шт.

14

145209C92

CYLINDER

ASSEMBLY - marker lift (Replaced by 1272145C91) (See Note)

1шт.

14

1272145C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - marker lift (Replaces 145209C92) (See Note)

1шт.

79975C1

SEAL KIT

KIT - cylinder repair, O-ring and seal (See Note)

1шт.

145572C1

KIT

- cylinder repair, O-ring and seal (See Note)

1шт.

15

64560C1

HEADED PIN

PIN - headed, 1 x 3 inch

1шт.

520175R1

CLIP

PIN - hair

1шт.

16

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER - 3/4-16 male x 7/8-14 inch female O-ring boss

2шт.

17

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32 inch

2шт.

18

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube

5шт.

19

486946R1

HOSE

ASSEMBLY - hydraulic, 230 inches long

2шт.

20

484723R1

LOCK VALVE

VALVE ASSEMBLY - restrictor

1шт.

21

395149R1

QUICK MALE COUPLING

COUPLER - hose, male (Optional with 544787R91)

2шт.

21

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male (Optional with 395149R1)

2шт.
