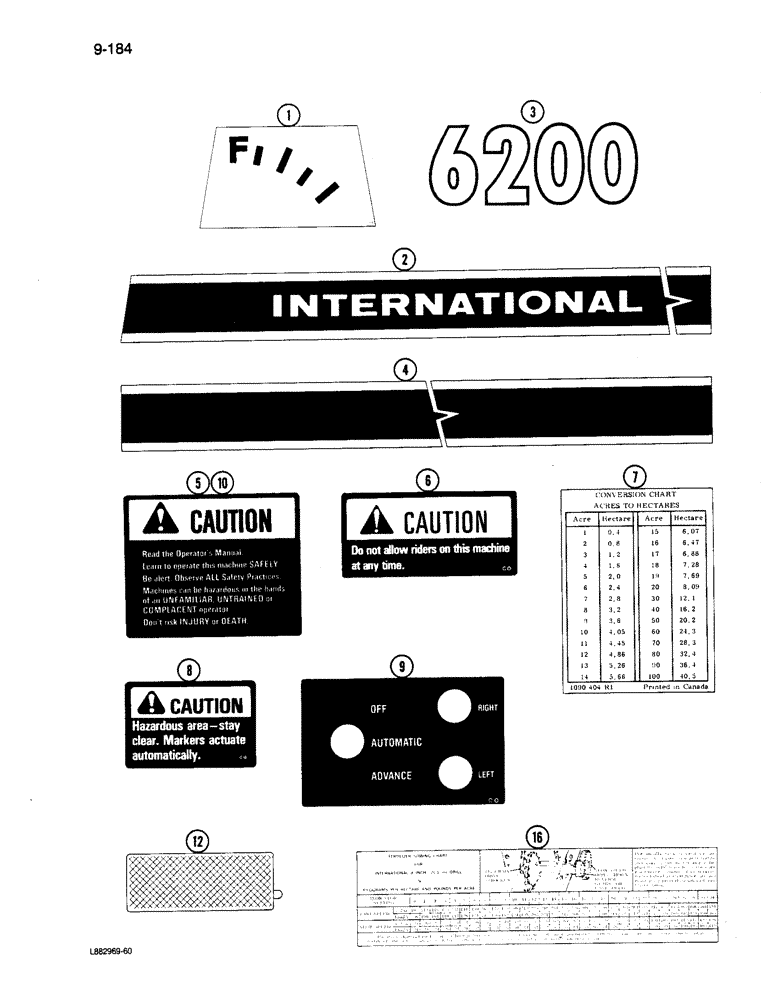

Запчасти Case IH 6200 (9-184) - DECALS, INTERNATIONAL (09) - CHASSIS/ATTACHMENTS

840969C91

PACKAGE

KIT - decal

1шт.

1

2753805R1

DECAL

- fertilizer level

1шт.

2

818284C1

DECAL

- International stripe

1шт.

3

NSS

NOT SOLD SEPARAT

DECAL - model designation (see Figure 9-186 Ref. 22)

1шт.

4

818203C1

DECAL

- stripe

1шт.

5

61907C1

DECAL

- general warning

1шт.

6

819809C2

DECAL

- caution, no riders

1шт.

7

1090404R1

DECAL

- acre to hectare chart

1шт.

8

113116C1

CAUTION DECAL,Caution Stay Clear Markers Actuate Automaticlly

DECAL - caution

2шт.

9

149483C1

PRODUCT GRAPHIC

DECAL - control panel

1шт.

10

71483C1

PRODUCT GRAPHIC

DECAL - general warning, French

1шт.

10

71484C1

PRODUCT GRAPHIC

DECAL - general warning, Spanish

1шт.

12

175311C1

REFLECTOR

- red

2шт.

12

174732C1

REFLECTOR

- amber

1шт.

16

1097323R2

PRODUCT GRAPHIC

CHART - grain sowing, 6 inch

1шт.

16

1097324R2

PRODUCT GRAPHIC

CHART - grain sowing, 7 inch

1шт.

16

1097325R1

PRODUCT GRAPHIC

CHART - grain sowing, 8 inch

1шт.

16

1097257R2

PRODUCT GRAPHIC

CHART - sunflower sowing, all sizes

1шт.

16

1090193R3

PRODUCT GRAPHIC

CHART - fertilizer sowing, 6 inch

1шт.

16

1090194R3

INSTRUCTION

CHART - fertilizer sowing, 7 inch

1шт.

16

1090352R2

DECAL

CHART - fertilizer sowing, 8 inch

1шт.

16

1090195R3

PRODUCT GRAPHIC

CHART - grass seed sowing, 6 inch

1шт.

16

1090196R5

INSTRUCTION

CHART - grass seed sowing, 7 inch

1шт.

16

1097194R2

INSTRUCTION

CHART - pesticide sowing

1шт.

16

1097195R2

INSTRUCTION

CHART - herbicide application

1шт.
