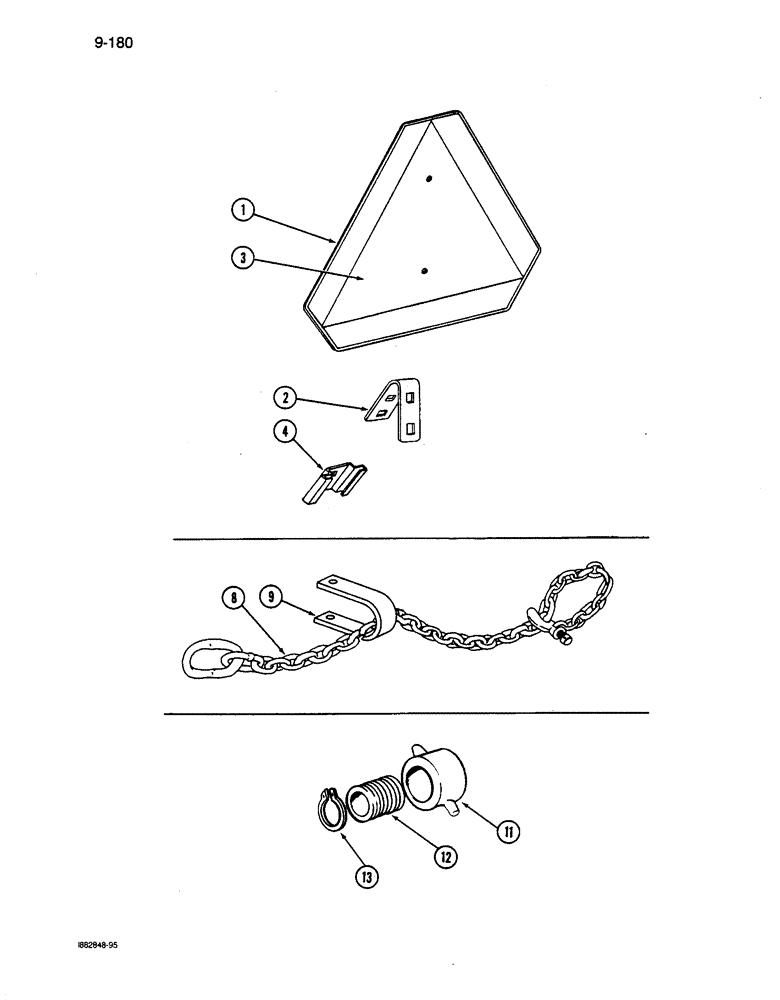

Запчасти Case IH 6200 (9-180) - SMV EMBLEM (09) - CHASSIS/ATTACHMENTS

1

407220R1

PRODUCT GRAPHIC

KIT - slow moving vehicle

1шт.

2

819998C1

SUPPORT

- slow moving vehicle emblem

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

3

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

DECAL - SMV emblem

1шт.

4

398976R1

BRACKET

- SMV mounting

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

8

100682C2

CHAIN (AG)

CHAIN ASSEMBLY - safety

1шт.

61913C92

PACKAGE

KIT - clevis and hardware, safety chain

1шт.

9

148558C1

CLEVIS

- safety chain

1шт.

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5, Safety chain

1шт.

26512R1

WASHER

- flat, 25/32 x 2 x 11/64 inch, safety chain

1шт.

20033R1

LOCK NUT

NUT - hex lock, 5/8 inch NC, safety chain

1шт.

844098C91

COLLAR

ASSEMBLY - stroke control (See Note)

1шт.

11

844034C1

NO LONGER SERVICED

COLLAR - cylinder stroke control

1шт.

12

844037C1

SLEEVE

- cylinder stroke control, collar

1шт.

13

844041C1

RETAINER

- stroke control sleeve, collar

1шт.

844098C91 Stroke Control Collar is used on 1 1/8" rod. Use 145254C1 for 1 1/4" rod.

1шт.
