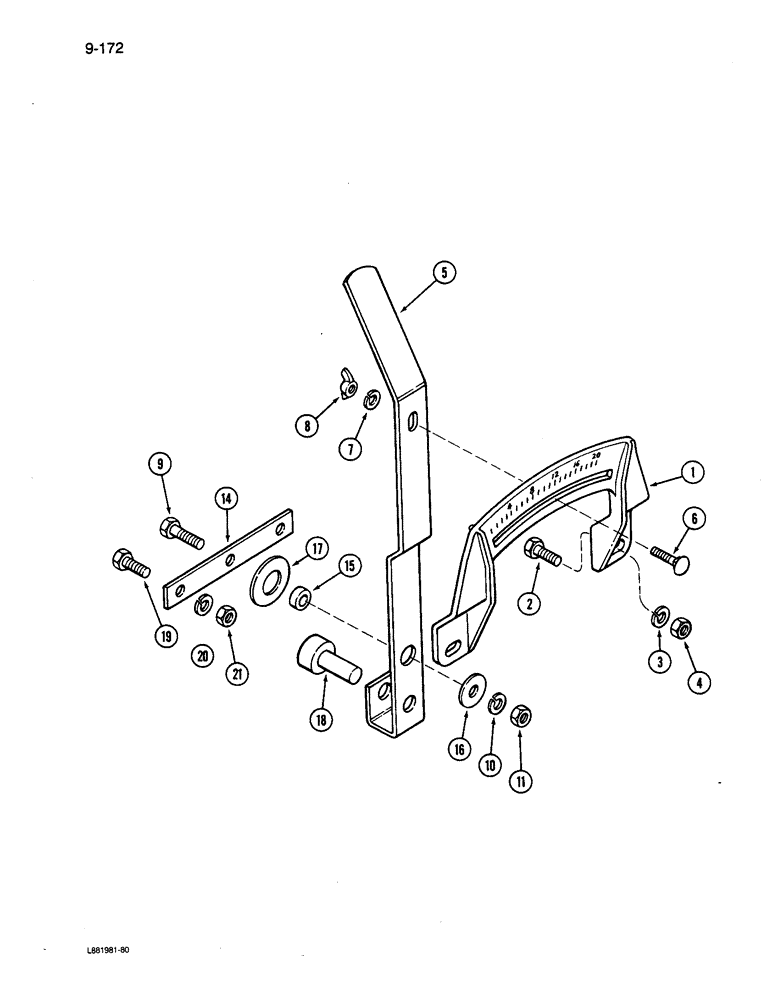

Запчасти Case IH 6200 (9-172) - GRASS SEED ATTACHMENT, FEED INDICATOR (09) - CHASSIS/ATTACHMENTS

1

815627C1

INDICATOR

- grass seed feed

2шт.

2

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

3

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

120377

NUT,3/8" - 16, Gr 5

4шт.

5

815628C2

CONTROL LEVER

LEVER - shifter

2шт.

6

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 1 inch

2шт.

7

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 inch NC

2шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

10

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

11

120377

NUT,3/8" - 16, Gr 5

2шт.

14

815629C1

BAR

BRACE - reinforcing

2шт.

15

95944C1

BUSHING

SPACER - lever pivot

2шт.

16

619856R1

WASHER

- flat, 13/32 x 1 x 1/16 inch

2шт.

17

151401C1

BELLEVILLE WASHER

WASHER - special

2шт.

18

815630C1

PIN,25.4mm OD x 42.16mm L

- feed shifter

2шт.

19

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

20

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

21

120377

NUT,3/8" - 16, Gr 5

1шт.
