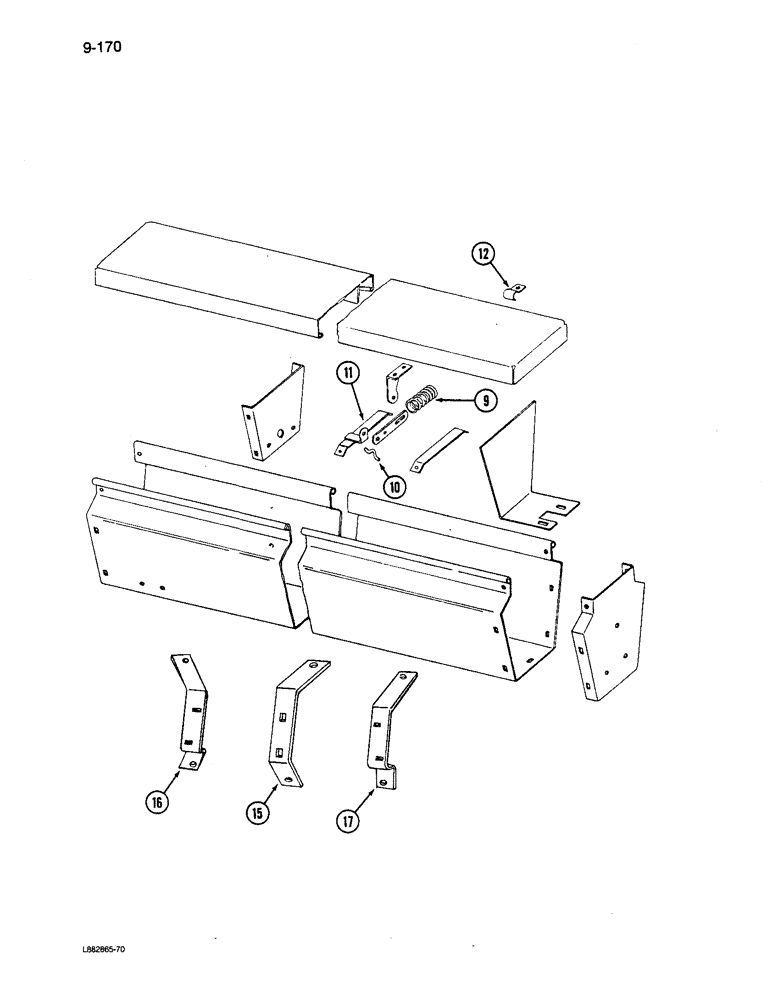

Запчасти Case IH 6200 (9-170) - GRASS SEED ATTACHMENT, HOPPER, CONTD (09) - CHASSIS/ATTACHMENTS

9

6628

SPRING

- cover

1шт.

10

N32114

LINCH PIN

LOCK - spring

1шт.

11

815616C1

BRACKET

- cover

1шт.

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

104066

RIVET,But Hd, 3/16" x 9/32"

- 3/16 x 3/8 inch

1шт.

23039R1

WASHER

- flat, 13/64 x 7/8 x 3/64 inch

1шт.

12

815618C1

CLAMP

- cover hinge (5 used 14x6 and 16x6)

1шт.

12

815618C1

CLAMP

- cover hinge (7 used 20x6, 24x6, 28x6, 20x7, 24x7) (replaces 815618)

1шт.

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120376

NUT,5/16"-18, G5

3шт.

15

816339C1

BRACE

- hopper support, intermediate (2 used 14x6, 16x6, 20x6, 24x6, 20x7)

1шт.

15

816339C1

BRACE

- hopper support, intermediate (4 used 24x7, 28x6)

1шт.

16

818267C1

SUPPORT

BRACE - hopper support end, left

1шт.

17

818268C1

SUPPORT

BRACE - hopper support end, right

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(8 used 13x7, 16x7, 18x7, 20x6, 24x6, 16x8, 21x7, 12 used 20x8 and 16x10) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

21309R1

WASHER

- flat, 13/32 x 7/8 x 11/64 inch

1шт.

178374R1

WASHER

- flat, 17/32 x 1-1/4 x 3/64 inch

2шт.
