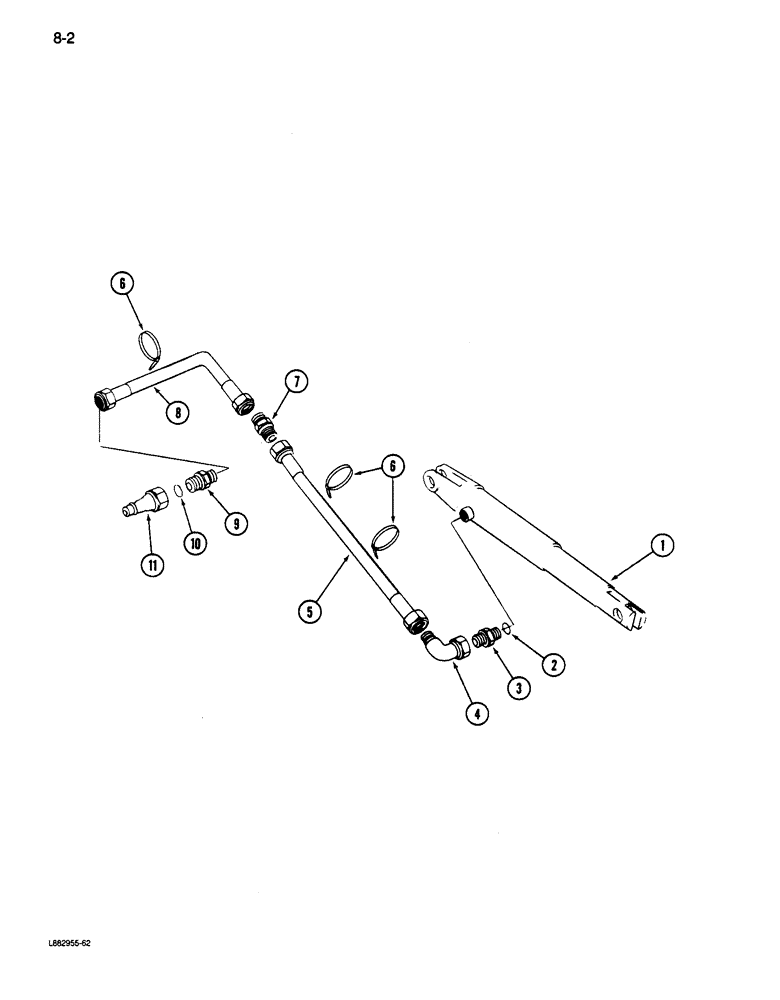

Запчасти Case IH 6200 (8-02) - MARKER HYDRAULICS, MANUAL TYPE (08) - HYDRAULICS

1

548207R93

CYLINDER ASSY.

CYLINDER ASSEMBLY - marker lift (Replaced by 145622C91)(See Note B)

1шт.

461181R92

SEAL KIT

KIT - O-ring and seal, service

1шт.

1

145622C91

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 204.7mm Stroke

CYLINDER ASSEMBLY - marker lift (See Note B)

1шт.

145682C1

SEALING RING

KIT - O-ring and seal, service

1шт.

1

841038C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - marker lift (See Note B)

1шт.

843147C1

SEAL KIT

KIT - O-ring and seal, service

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

3

324273R1

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - short reducer, 1/2 inch 3/4-16 thread to 3/8 inch

1шт.

4

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel, 1/2 inch tube 3/4-16 thread

1шт.

5

119743C1

HOSE

ASSEMBLY - 1/2 x 69 inch

1шт.

6

58556C1

CABLE TIE

STRAP - harness and hose retaining

1шт.

7

9402788

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - 5/8-16 inch flared

1шт.

8

58140C1

HOSE ASSY.

HOSE ASSEMBLY - 1/2 x 160 inch (14x6, 16x6)

1шт.

9

841009C1

UNION

- restrictor

1шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube

1шт.

11

395149R1

QUICK MALE COUPLING

COUPLER - hose, male (Optional with 544787R91)

1шт.

11

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male (Optional with 395149R1)

1шт.
