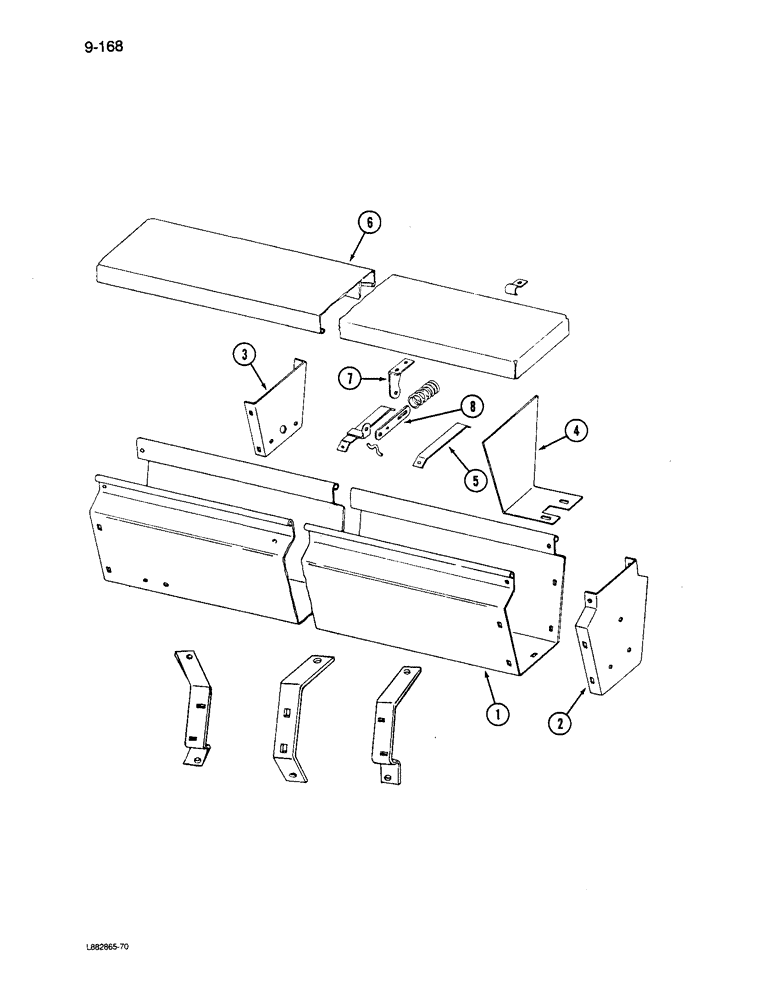

Запчасти Case IH 6200 (9-168) - GRASS SEED ATTACHMENT, HOPPER (09) - CHASSIS/ATTACHMENTS

1

816854C2

HOPPER

- grass seed (14 x 6)

1шт.

1

816855C2

HOPPER

- grass seed (16 x 6)

1шт.

1

816780C2

HOPPER

- grass seed (20 x 6)

1шт.

1

816781C2

HOPPER

- grass seed (24 x 6)

1шт.

1

816913C2

HOPPER

- grass seed (28 x 6)

1шт.

1

816857C2

HOPPER

- grass seed (20 x 7)

1шт.

1

816858C2

HOPPER

- grass seed (24 x 7)

1шт.

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120376

NUT,5/16"-18, G5

6шт.

2

819060C2

PANEL, SIDE

PANEL - hopper end

2шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

BOLT - pan head, 1/4 NC x 1/2 inch

4шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT - round head square neck, 5/16 NC x 1/2 inch

8шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

4шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

120376

NUT,5/16"-18, G5

12шт.

3

815597C1

PLATE

BAFFLE - hopper (14x6, 16x6, 20x6, 24x6, 20x7)

2шт.

3

815597C1

PLATE

BAFFLE - hopper (28x6, 24x7)

4шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT - round head square neck, 5/16 NC x 1/2 inch

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

4

815598C1

BAFFLE

- grass seed (4 used 14x6, 16x6; 5 used 20x6; 7 used 24x6, 28x6, 20x7, 24x7)

1шт.

5

815599C1

BRACKET

BRACE - hopper (14x6, 16x6)

2шт.

5

815599C1

BRACKET

BRACE - hopper (20x6, 24x6, 28x6, 20x7, 24x7)

4шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch (1 per brace)

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (1 per brace)

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

6

816859C1

COVER

- hopper (14 x 6)

1шт.

6

816860C1

COVER

- hopper (16 x 6)

1шт.

6

816778C1

COVER

- hopper (20 x 6)

1шт.

6

816779C1

COVER

- hopper (24 x 6, 20 x 7)

1шт.

6

816861C1

COVER

- hopper (24 x 7, 28 x 6)

1шт.

7

815615C1

SUPPORT

BRACKET - cover spring

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

BOLT - pan head, 1/4 NC x 1/2 inch

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

8

N32052

BAR

BRACKET - cover spring

1шт.

104066

RIVET,But Hd, 3/16" x 9/32"

- 3/16 x 3/8 inch

1шт.

23039R1

WASHER

- flat, 13/64 x 7/8 x 3/64 inch

1шт.
