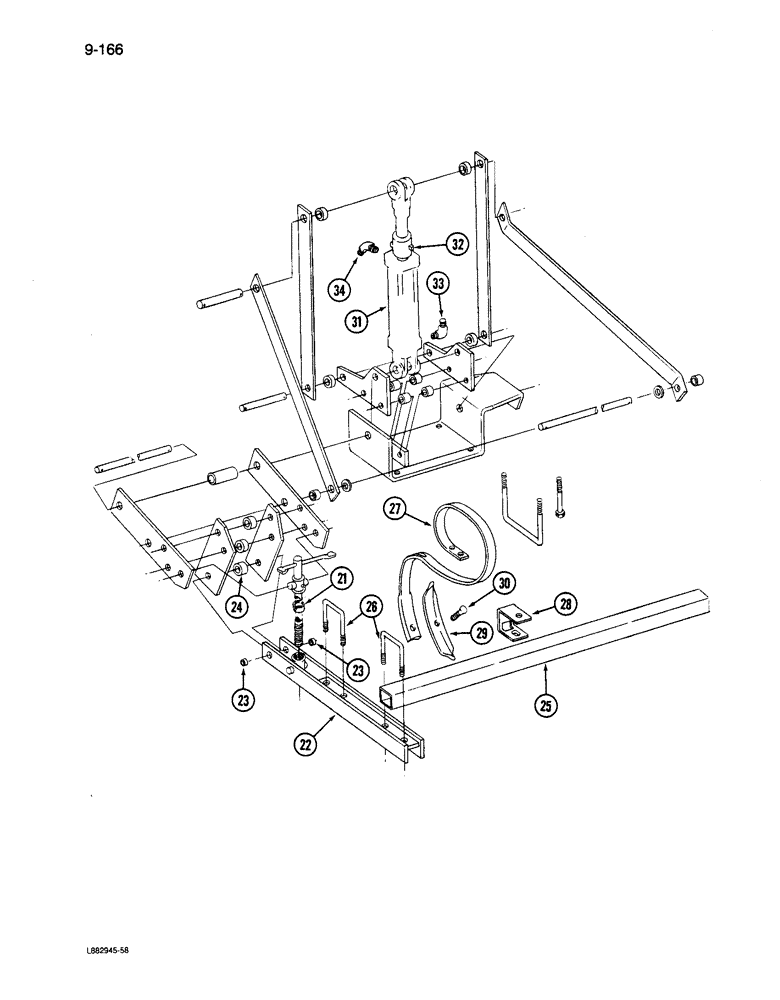

Запчасти Case IH 6200 (9-166) - TRACK ERASER, CONTD (09) - CHASSIS/ATTACHMENTS

21

590303R1

COLLAR CLAMP

COLLAR - levelling screw

4шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN - headed, 5/16 x 1-7/8 inch

4шт.

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

22

817721C1

SUPPORT

- tine tube

4шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING - grease, 90 degree, 1/8 inch

4шт.

23

817747C1

SPACER

- tine support pivot

8шт.

24

817749C1

SPACER

- tine pivot bolt plate

4шт.

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

4шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

25

817746C1

TUBE

SUPPORT - tine

4шт.

26

817754C1

BOLT,U, 1/2" - 13 x 90 mm

U-BOLT - tine support

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

16шт.

27

734553R2

TINE

SHANK - tine (For 9 inch spacing)

12шт.

27

734553R2

TINE

SHANK - tine (For 6 inch spacing)

16шт.

28

100275C1

CLAMP

- shank (1 per shank)

1шт.

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

29

811191C1

POINT

- 1-3/8 inch reversible chisel

1шт.

30

4138544C1

BOLT - tool mounting (1 per shank)

1шт.

20803R1

WASHER

- flat, 13/32 x 1 x 7/64 inch

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

31

844025C92

CYLINDER

ASSEMBLY - hydraulic with pipe thread ports (See Cylinder 1 parts catalog for component breakdown)

2шт.

844042C91

PACKAGE

KIT - cylinder repair, O-ring and seal

1шт.

31

1272402C91

CYLINDER,Double Acting, 31.7mm Rod, 203.2mm Stroke

ASSEMBLY - hydraulic with O-ring ports (See Cylinder 1 catalog for component breakdown)

2шт.

79975C1

SEAL KIT

KIT - cylinder repair, O-ring and seal

1шт.

32

145254C1

COLLAR ASSY.

COLLAR - cylinder stroke control

2шт.

Ref #32 - Is for 1 1/4" Rod.

1шт.

33

817762C1

ELBOW

- flow restrictor

2шт.

34

310254C1

ELBOW,45 Degree, 3/4-14" 37 Degree x 1/2"-14, NPTF

- 45 degree, 3/4-16 flared x 1/2 inch pt

2шт.
