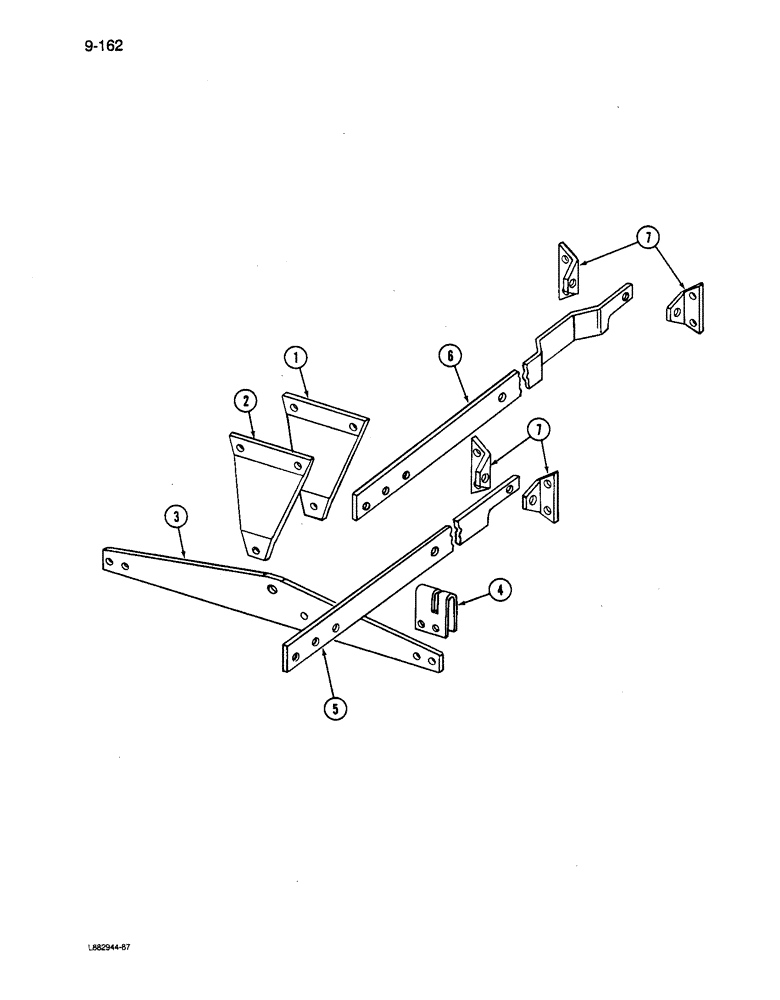

Запчасти Case IH 6200 (9-162) - REAR SUSPENSION PRESS WHEEL GANG, 14 X 6 AND 16 X 6 (09) - CHASSIS/ATTACHMENTS

1

816173C1

SUPPORT

- evener bar inner

2шт.

2

816174C1

SUPPORT

- evener bar outer

2шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

3

816175C1

BAR

- evener (14x6)

2шт.

3

816176C1

BAR

- evener (16x6)

2шт.

PO28401

HEADED PIN,3/4" x 2 1/16"

PIN - headed, 3/4 x 2-1/16 inch

2шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 3/32 inch

1шт.

4

816616C1

CLEVIS

- drawbar

4шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

23273R1

PIN

- headed, 5/8 x 3-1/2 inch

4шт.

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

4шт.

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 3/64 inch

1шт.

5

819225C1

BAR

DRAWBAR - press wheel (14x6)

3шт.

5

819225C1

BAR

DRAWBAR - press wheel (16x6)

4шт.

6

819226C2

BAR

DRAWBAR - press wheel (14x6)

1шт.

7

819141C1

ANGLE

- gang drawbar support

8шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

16шт.

21957R1

HEADED PIN,5/8" x 2"

PIN - headed, 5/8 x 2 inch

4шт.

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

16шт.
