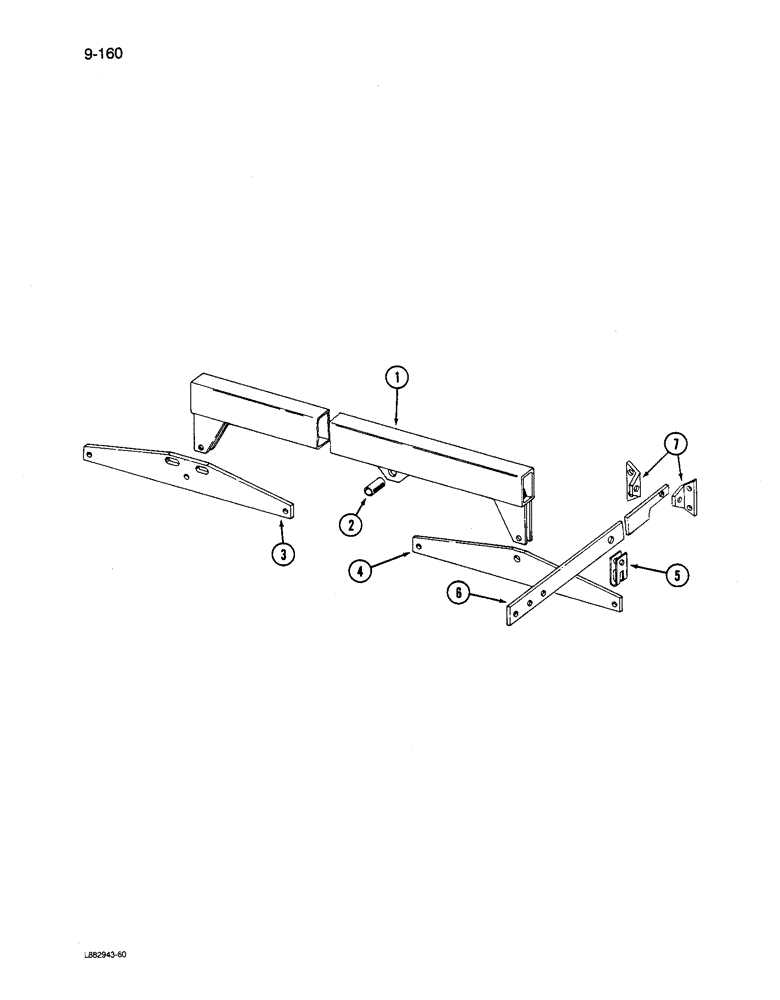

Запчасти Case IH 6200 (9-160) - REAR SUSPENSION PRESS WHEEL GANG, 20 X 6, 24 X 6, 28 X 6, 20 X 7, 24 X 7 AND 16 X 8 (09) - CHASSIS/ATTACHMENTS

1

816163C1

TUBE

SUPPORT - equalizer (20x6 and 16x8)

2шт.

1

816164C1

TUBE

SUPPORT - equalizer (24x6)

2шт.

1

816165C1

TUBE

SUPPORT - equalizer (20x7)

2шт.

1

816166C1

TUBE

SUPPORT - equalizer (28x6 and 24x7)

2шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

2

111892H

SPACER,3/4" Pipe x 2 1/8"

- equalizer support pivot

2шт.

3

816177C1

BAR

- center evener (20x6)

1шт.

3

816178C1

BAR

- center evener (24x6)

1шт.

3

816179C1

BAR

- center evener (20x7)

1шт.

3

816180C1

BAR

- center evener (24x7)

1шт.

3

816898C1

BAR

- center evener (28x6)

1шт.

3

819088C1

BAR

- center evener (16x8)

1шт.

4

816181C1

BAR

- outer evener (20x6)

2шт.

4

816182C1

BAR

- outer evener (24x6)

2шт.

4

816183C1

BAR

- outer evener (20x7)

2шт.

4

816184C1

BAR

- outer evener (24x7)

2шт.

4

816899C1

BAR

- outer evener (28x6)

2шт.

4

819116C1

BAR

- outer evener (16x8)

2шт.

540851R1

HEADED PIN,1/2" x 1 7/8", G5

PIN - headed, 3/4 x 1-7/8 inch

4шт.

21753R1

WASHER

- flat, 25/32 x 1-1/2 x 1/16 inch

4шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

4шт.

5

819143C1

CLEVIS

- drawbar

6шт.

21899R1

HEADED PIN

PIN - headed, 1/2 x 2-1/2 inch

6шт.

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

6шт.

178374R1

WASHER

- flat, 17/32 x 1-1/4 x 3/64 inch

12шт.

27-10161

CLEVIS PIN,5/8" x 1.610"

PIN - headed 5/8 x 1-39/64 inch

6шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

6шт.

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

6шт.

6

819142C1

BAR

DRAWBAR - press wheel

6шт.

7

819141C1

ANGLE

- gang drawbar support

12шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

24шт.

21957R1

HEADED PIN,5/8" x 2"

PIN - headed, 5/8 x 2 inch (20x6, 24x6, 28x6, 20x7)

6шт.

21957R1

HEADED PIN,5/8" x 2"

PIN - headed, 5/8 x 2 inch (16x8)

4шт.

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

24шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

24шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

1шт.
