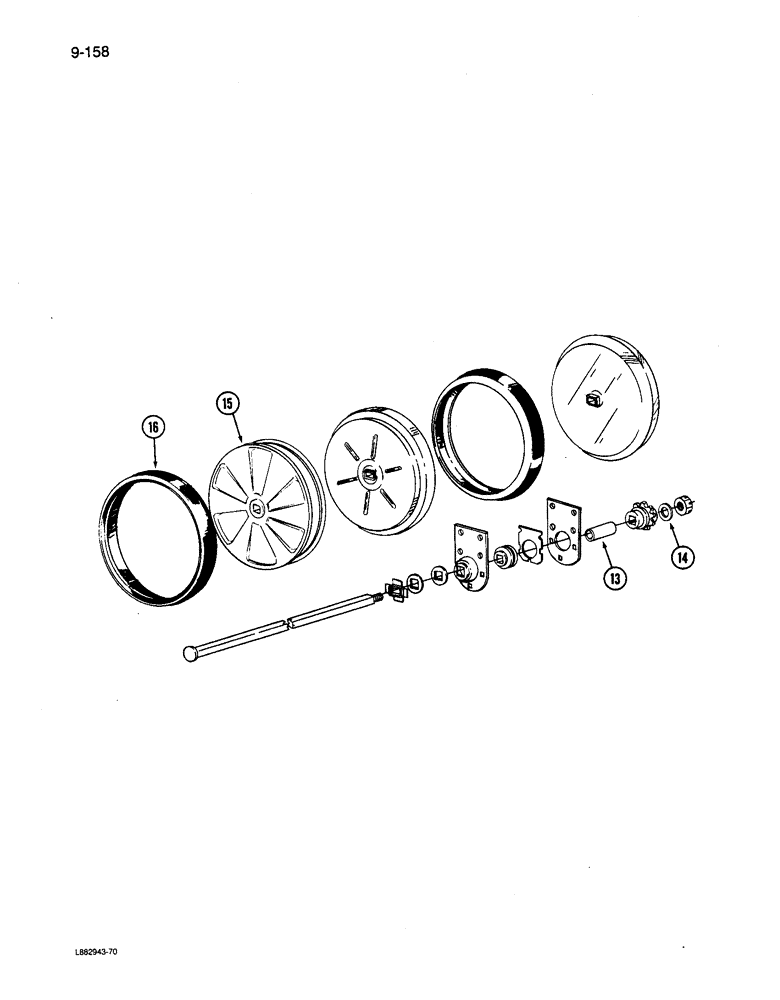

Запчасти Case IH 6200 (9-158) - GANG PRESS WHEEL, CONTD (09) - CHASSIS/ATTACHMENTS

13

843275C1

SPACER

- gang, 15/32 inch (Replaces 594650R2 - 24x7)

2шт.

13

843278C1

SPACER

- gang, 39/64 inch (Replaces 816155C2 - 20x7)

6шт.

13

843278C1

SPACER

- gang, 39/64 inch (Replaces 816155C2 - 14x6, 16x6)

8шт.

13

843278C1

SPACER

- gang, 39/64 inch (20x6, 24x6, 28x6)

12шт.

13

843279C1

SPACER

- gang, 45/64 inch (Replaces 606107R2 - 16x8)

2шт.

13

843280C1

SPACER

- gang, 15/16 inch (Replaces 603840R2 - 16x8)

2шт.

13

843281C1

SPACER

- gang, 1-5/32 inch (Replaces 818413C1 - 24x7)

12шт.

13

843283C1

SPACER

- gang, 1-15/64 inch (Replaces 594653R2 and 606108R2 - 20x7, 16x8)

4шт.

13

843288C1

SPACER

- gang, 1-11/16 inch (Replaces 605521R2 - 16x8)

2шт.

13

843289C1

SPACER

- gang, 1-53/64 inch (Replaces 818414C1 - 20x7)

4шт.

13

843290C1

SPACER

- gang, 1-15/16 inch (Replaces 608993R2 - 16x8)

2шт.

13

843292C1

SPACER

- gang, 2-7/16 inch (Replaces 608994R2 - 16x8)

2шт.

13

843293C1

SPACER

- gang, 2-5/8 inch (Replaces 818415C1 - 24x6)

14шт.

13

843293C1

SPACER

- gang, 2-5/8 inch (Replaces 818415C1 - 28x6)

18шт.

13

843295C1

SPACER

- gang, 2-49/64 inch (Replaces 818416C1 - 14x6)

7шт.

13

843295C1

SPACER

- gang, 2-49/64 inch (Replaces 818416C1 - 16x6)

9шт.

13

843298C1

SPACER

- gang, 2-13/16 inch (Replaces 816158C2 - 20x6)

10шт.

13

843301C1

SPACER

- gang, 3- 5/8 inch (Replaces 818417C1 - 24x7)

14шт.

13

843306C1

SPACER

- gang, 3-31/32 inch (Replaces 818418C1 - 20x7)

10шт.

13

843310C1

SPACER

- gang, 4-21/32 inch (Replaces 818419C1 - 16x8)

6шт.

14

25540R1

WASHER,1 1/16" x 2" x .134", HDN

- flat, 1-1/16 x 2 x 1/8 inch

1шт.

15

841171C1

WHEEL

ASSEMBLY - 3x20 heavy duty (1 per furrow opener)

1шт.

ref #15 (P/N 841171C1) - TS 145-89 metal wheel only

1шт.

15A 843264C91 Wheel & Tire TS 145-89

1шт.

16

843188C1

TYRE/TIRE

TIRE - zero pressure heavy duty

1шт.
