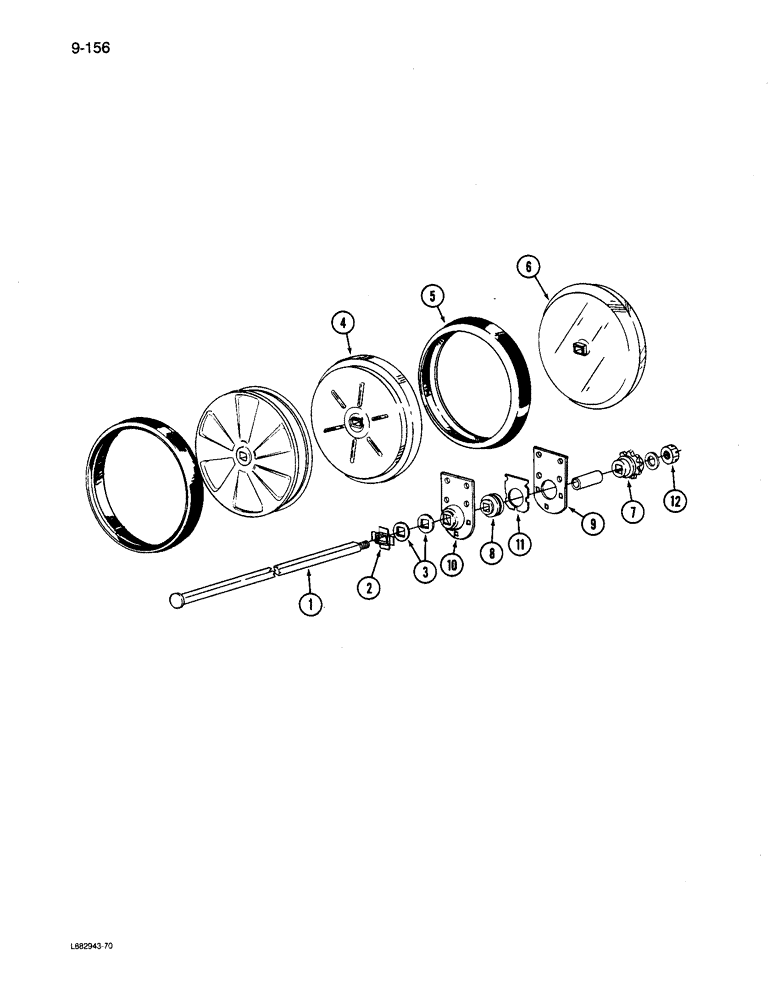

Запчасти Case IH 6200 (9-156) - GANG PRESS WHEEL (09) - CHASSIS/ATTACHMENTS

1

816146C3

BOLT,Wheel, 1" - 8 x 42.1"

- gang arbor, left and right (14x6)

2шт.

1

816147C3

SPECIAL BOLT,1" - 8 x 48.1"

BOLT - gang arbor, left and right (16x6)

2шт.

1

816148C3

BOLT,Wheel, 1" - 8 x 36 1/2"

- gang arbor, left and right (20x6)

2шт.

1

816149C3

BOLT,1" - 8 x 49.4"

- gang arbor, center (20x6)

1шт.

1

819093C3

BOLT,1" - 8

- gang arbor, left and right (16x8)

2шт.

1

819094C3

BOLT,1" - 8

- gang arbor, center (16x8)

1шт.

1

816150C3

BOLT,Wheel, 1" - 8 x 47.3"

- gang arbor, left, right and center (24x6)

3шт.

1

816151C3

BOLT,Wheel, 1" - 8 x 41 1/2"

- gang arbor, left and right (20x7)

2шт.

1

816152C3

BOLT,Wheel, 1" - 8 x 56.4"

- gang arbor, center (20x7)

1шт.

1

816153C3

BOLT,Wheel, 1" - 8 x 54.3"

- gang arbor, left, right and center (24x7)

3шт.

1

816901C3

BOLT,Wheel, 1" - 8 x 53.4"

- gang arbor, left and right (28x6)

2шт.

1

816900C3

BOLT,Wheel, 1" - 8 x 59.6"

- gang arbor, center (28x6)

1шт.

137263

STRIP

3/16" x 2" (1 per gang bolt)

1шт.

2

816154C1

SQ HOLE WASHER

- lock, tab (If equipped, 1 per bolt)

1шт.

3

1279012C1

SQ HOLE WASHER,32.5mm ID x 70mm OD x 3mm Thk

- press wheel spacer

1шт.

4

816189C2

WHEEL,501.65mm OD x 82.55mm W

ASSEMBLY - 3x20 shielded press (1 per furrow opener, not with endwise transport)

1шт.

4A - 816188C92 Wheel & tire

1шт.

5

816195C2

TYRE/TIRE

TIRE - 3x20 press wheel oval

1шт.

6

605082R92

WHEEL

- 2-1/4x20 shielded round rim (1 per furow opener)

1шт.

7

603902R2

SPROCKET ASSY.

SPROCKET - main drive, 10 tooth

1шт.

8

818112C91

BALL BEARING,33.02mm ID x 84.95mm OD x 36.51mm W

- press wheel gang (14x6, 16x6)

4шт.

8

818112C91

BALL BEARING,33.02mm ID x 84.95mm OD x 36.51mm W

- press wheel (20x6, 24x6, 20x7, 24x7, 28x6, 16x8)

6шт.

9

819896C1

RETAINER

- gang bearing (1 per bearing)

1шт.

10

819897C1

FLANGE

- gang bearing (1 per bearing)

1шт.

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, 1/4 PT x 17/32 inch (1 per bearing)

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

11

819951C1

GASKET

- gang bearing (2 per bearing)

1шт.

12

427649

SLOTTED NUT,1"-8, G5

NUT - slotted, 1 inch NC (1 per gang bolt)

1шт.
