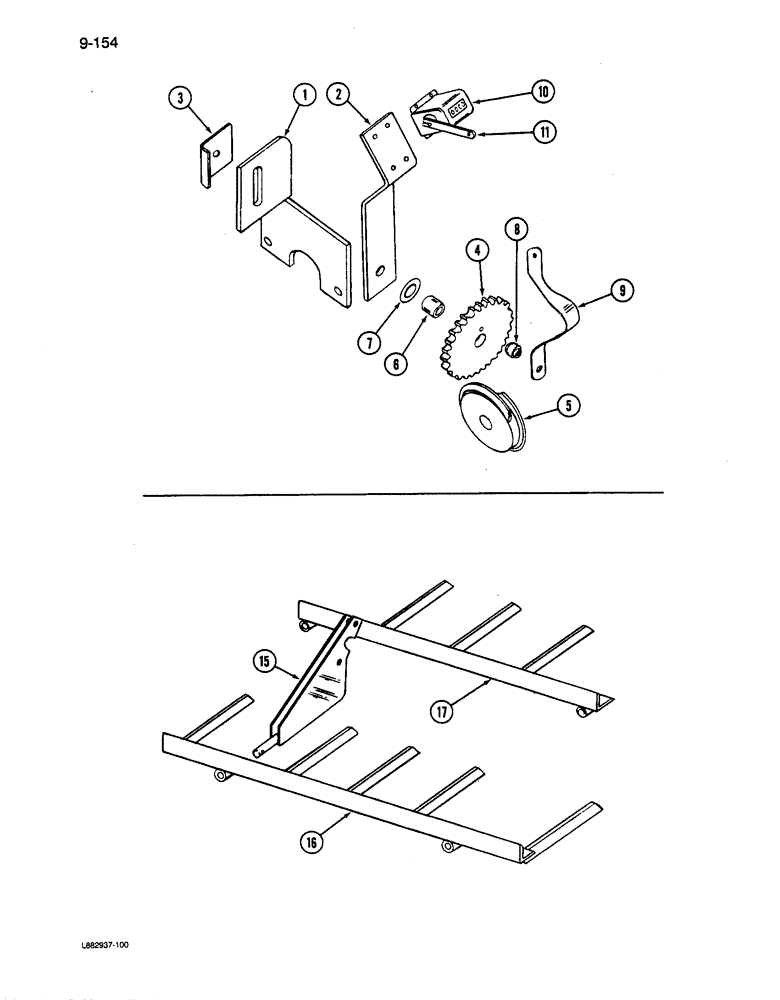

Запчасти Case IH 6200 (9-154) - COUNTER (09) - CHASSIS/ATTACHMENTS

1

818048C1

SUPPORT

- acreage counter

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

2

818047C1

SUPPORT

- counter

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

1шт.

3

818045C1

SUPPORT

- counter gear

1шт.

4

815182C1

GEAR

- counter 24 tooth (28x6 and 24x7)

1шт.

4

818049C1

GEAR

- counter 46 tooth (14x6)

1шт.

4

815186C1

GEAR

- counter 41 tooth (16x6)

1шт.

4

815184C1

GEAR

- counter 30 tooth (20x6 and 16x8)

1шт.

4

596941R1

GEAR

- counter 28 tooth (24x6 and 20x7)

1шт.

5

818050C1

GEAR

- acreage counter worm

1шт.

24709R1

HEADED PIN,3/8" x 1 3/4"

PIN, HEADED, 3/8" x 1 3/4"

1шт.

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

6

209381H1

SPACER

- gear

1шт.

7

21753R1

WASHER

- flat, 25/32 x 1-1/2 x 1/16 inch

1шт.

8

609534R2

SPACER

- counter spring

1шт.

132852

SCREW,Sl Rnd Hd, #10 - 24 x 1 1/4"

- slotted round head machine, No. 10-24 x 1-1/4 inch

1шт.

607893R1

WASHER

- flat, 13/64 x 1/2 x 3/64 inch

1шт.

9

598970R1

SPRING

- counter

1шт.

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

10

609535R91

COUNTER

ASSEMBLY - acreage

1шт.

145-351

RIVET,But Hd, 1/8" x 7/16"

- brass, 1/8 x 7/16 inch

4шт.

11

816878C1

ARM

- acreage counter

1шт.

15

816620C2

SUPPORT

- stone kicker frame (14x6, 16x6)

4шт.

15

816620C2

SUPPORT

- stone kicker frame (20x6, 24x6, 28x6, 20x7, 24x7 16x8)

6шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

(2 per support), stone kicker frame Hex, 1/2"-13 x 1 3/4", G5

1шт.

46

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 3/32 inch, stone kicker frame

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex, flange lock, 1/2 inch, stone kicker frame

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), (1 per support), stone kicker frame 1/4" x 1 1/2"

1шт.

16

816624C2

FRAME

- stone kicker (14x6)

2шт.

16

816625C2

FRAME

- stone kicker (16x6)

2шт.

16

816625C2

FRAME

- stone kicker (24x6)

3шт.

16

816626C2

FRAME

- stone kicker (20x6)

2шт.

16

816631C2

FRAME

- stone kicker (24x7)

3шт.

16

816629C2

FRAME

- stone kicker outer (20x7)

2шт.

16

816915C2

FRAME

- stone kicker outer (28x6)

2шт.

16

819130C1

FRAME

- stone kicker outer (16x8)

2шт.

17

816627C2

FRAME

- stone kicker center (20x6)

1шт.

17

816630C2

FRAME

- stone kicker center (20x7)

1шт.

17

816914C2

FRAME

- stone kicker center (28x6)

1шт.

17

819138C1

FRAME

- stone kicker center (16x8)

1шт.
