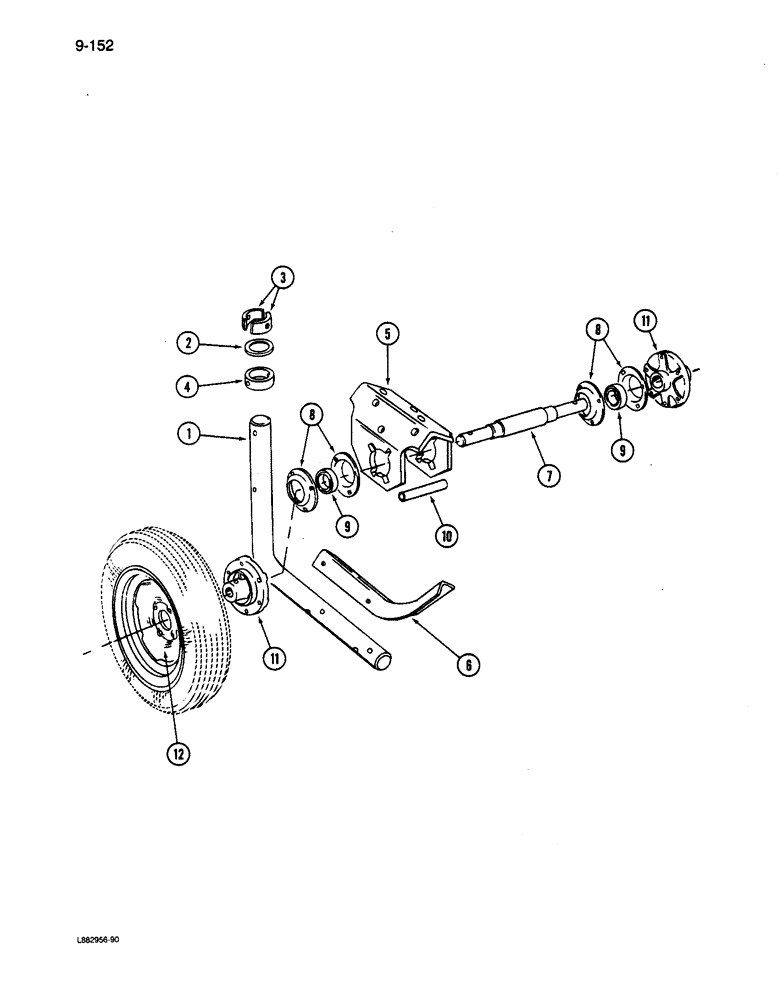

Запчасти Case IH 6200 (9-152) - CASTER WHEEL AXLE, 20 X 6, 24 X 6, 28 X 6, 20 X 7, 24 X 7, 16 X 8 (09) - CHASSIS/ATTACHMENTS

1

816556C4

SHANK

- axle

1шт.

2

521159R1

WASHER

- flat, 2-5/16 x 3 x 3/32 inch

1шт.

3

819447C1

CLAMP

- shank locking

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex, 3/8 NC x 3 inch

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

1шт.

4

816007C2

SPACER

BUSHING - axle shank lock collar

1шт.

19356R1

PIN,3/8" x 3", Coiled

1шт.

5

819449C1

CARRIER

- axle and bearing

1шт.

6

816557C2

ANGLE

- stone kicker

1шт.

23061R1

BOLT,Hex, 5/8" - 11 x 4", Gr 8

- hex, 5/8 NC x 4 inch grade 8

4шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

- flange lock, 5/8 inch NC

4шт.

7

843369C1

AXLE

- wheel (Replaces 819448C2)

1шт.

8

663562R1

FLANGE

- bearing

4шт.

18503R1

BOLT,Hex, 1/2" - 13 x 7 1/2", Gr 5

- HEX, 1/2 NC x 7-1/2 inch

2шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/2 inch

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex, flange lock, 1/2 inch

6шт.

9

818370C91

SPHERICAL BEARING,40mm ID x 80mm OD x 26.92mm W

- wheel (Replaces 819259C91)

2шт.

10

27797R1

SPACER,1/2" Pipe x 5"

- standard, 1/2 x 5 inch

2шт.

11

816559C3

HUB

- wheel

2шт.

816576C1

PIN

- caster wheel hub

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

4шт.

12

481344R91

WHEEL

- 14x8 KB (For 8.5L-14 4 ply Wl tubeless and 9.5 L-14 6 ply l-1 tube type)

2шт.

617918R1

BOLT,9/16" - 18 x 1 15/32"

- wheel

12шт.

810768C1

VALVE

- tubeless tire steel

2шт.

Jan 90 New Style in D1091.

1шт.

Pkg available from wholegoods 2804403R1.

1шт.
