Запчасти Case IH 6200 (9-150) - CASTER WHEEL AXLE, 14 X 6, 16 X 6 (09) - CHASSIS/ATTACHMENTS

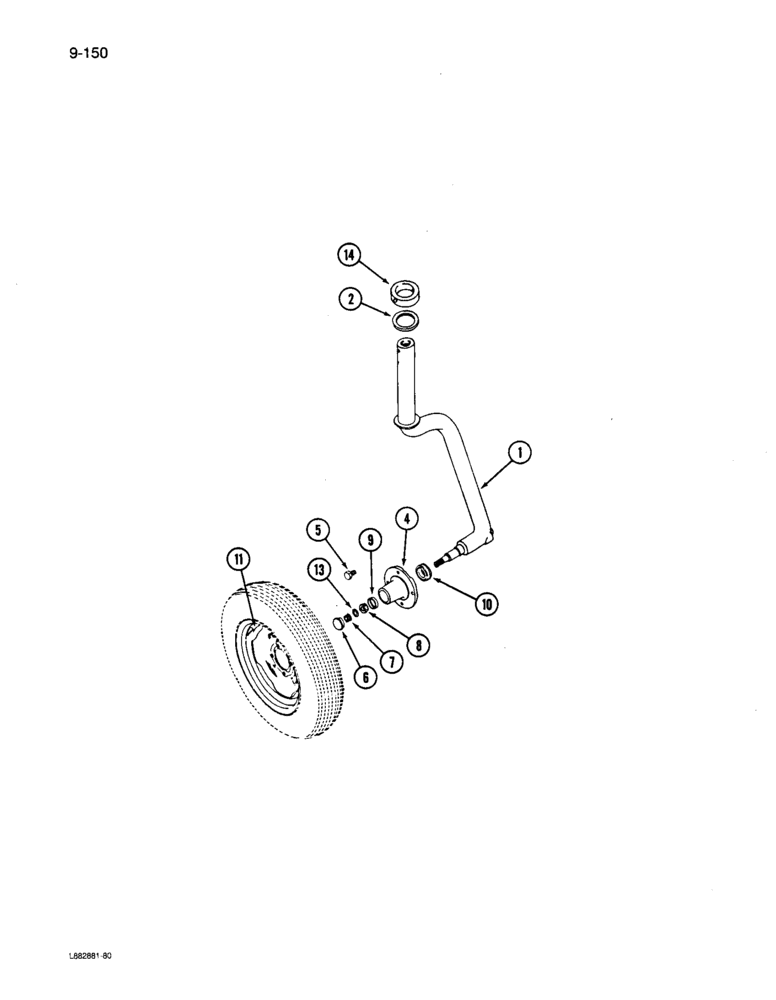

Схема запчастей Case IH 6200 - (9-150) - CASTER WHEEL AXLE, 14 X 6, 16 X 6 (09) - CHASSIS/ATTACHMENTS
14
13
7
6
11
1
10
8
5
9
2
4

Артикул

Название

Примечание

Количество

1

619931R91

AXLE

ASSEMBLY - caster wheel

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

2

22811R1

WASHER

- flat, 2-1/32 x 2-3/4 x 1/16 inch

1шт.

4

591535R1

HUB

- caster wheel (Replaces 919353R1)

1шт.

5

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

- hex conical, 1/2 NF x 15/16 inch

4шт.

6

602959R1

PLUG

CAP - hub

1шт.

7

427640

SLOTTED NUT,3/4"-16, G5

NUT - hex slotted, 3/4 inch NF

1шт.

8

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - bearing, outer

1шт.

8

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

9

651814R1

BEARING CUP

CUP - bearing, outer

1шт.

10

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

- spindle inner, with seal

1шт.

11

455169R92

WHEEL

- 15 x 4-1/2 KB (For 7.60-15 4 ply l1 tubeless tire)

1шт.

810769C1

VALVE

- tubeless tire steel

1шт.

13

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 3/32 inch

2шт.

14

619930R1

BUSHING

- axle lock collar

1шт.

19356R1

PIN,3/8" x 3", Coiled

1шт.

Выбрано товаров: 16
