Запчасти Case IH 6200 (4-10) - ROW MARKER VALVE (04) - ELECTRICAL SYSTEMS

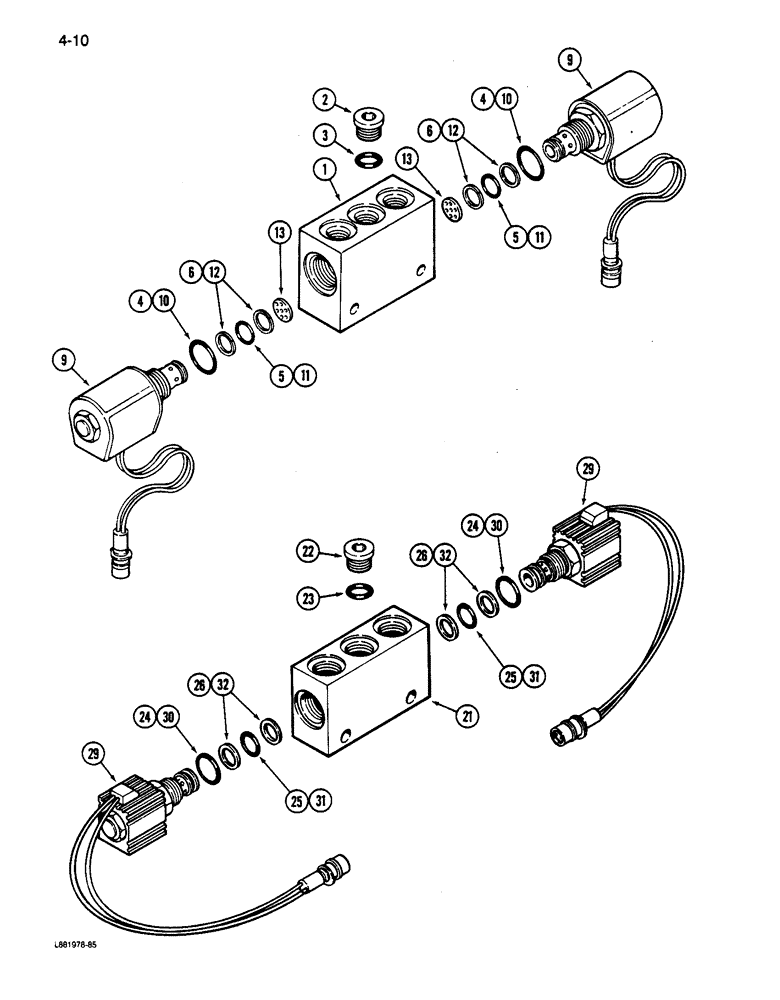

Схема запчастей Case IH 6200 - (4-10) - ROW MARKER VALVE (04) - ELECTRICAL SYSTEMS
9
21
30
5
31
13
2
4
4
11
25
11
25
23
29
3
26
6
9
31
10
12
32
30
22
24
1
29
6
13
12
32
24
26
5
10

Артикул

Название

Примечание

Количество

149988C92

VALVE

ASSEMBLY - row marker (Modular Controls)(Includes Ref 1 through 12) (Replaces 149986C91 and 149988C91)

1шт.

149988C91

VALVE

ASSEMBLY - row marker (Modular Conctrols) (Order 149988C92)

1шт.

1

145317C2

VALVE BODY

BODY ASSEMBLY - valve

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - 9/16-18 inch O-ring boss

1шт.

145316C1

REPAIR KIT

KIT - seal, valve assembly

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

2шт.

5

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

2шт.

6

NSS

NOT SOLD SEPARAT

WASHER - backup

4шт.

9

149989C91

VALVE

ASEMBLY - solenoid

2шт.

1272308C1

SEAL KIT

KIT - seal, solenoid valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.

13

145294C1

DISC - orifice (Used with 14988C91 only)

2шт.

149986C91

VALVE

ASSEMBLY - row marker (Waterman) (Order 149988C92)

1шт.

21

71984C3

VALVE BODY

BODY ASSEMBLY - valve

1шт.

22

NSS

NOT SOLD SEPARAT

PLUG - valve body

1шт.

142443C2

SET

KIT - seal, valve assembly

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

2шт.

25

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

2шт.

26

NSS

NOT SOLD SEPARAT

WASHER - backup

4шт.

29

149987C91

VALVE

ASSEMBLY - solenoid (Order 149988C92)

2шт.

30

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve (Order 142443C2)

1шт.

31

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve (Order 142443C2)

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER - backup (Order 142443C2)

2шт.

Выбрано товаров: 27
