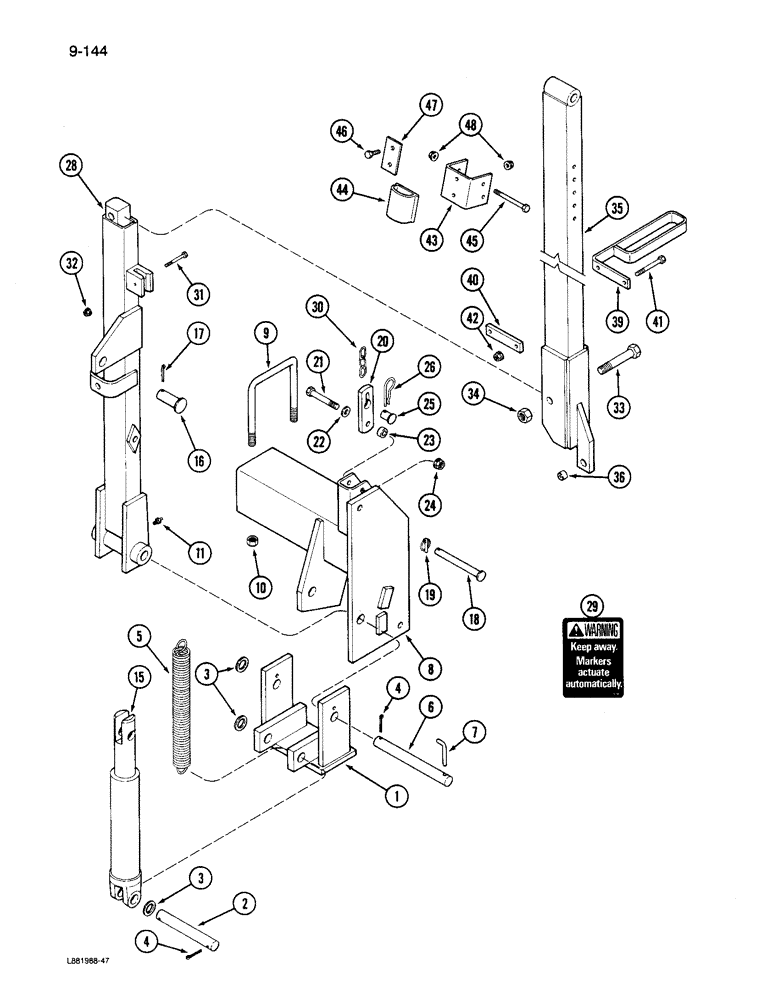

Запчасти Case IH 6200 (9-144) - DISC MARKER, FOLDING, CONTINUED (09) - CHASSIS/ATTACHMENTS

1

1279633C1

HITCH BRACKET

BRACKET - cylinder pivot

2шт.

2

1279644C1

PIVOT PIN,25.4mm OD x 183mm L

PIN - cylinder pivot

2шт.

3

591715R1

WASHER

- flat, 1-1/32 x 1-1/2 x 1/16 inch

6шт.

4

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

6шт.

5

1277583C1

COIL SPRING

SPRING - pivot arm

2шт.

6

1279638C1

PIVOT PIN,25.4mm OD x 237mm L

PIN - marker pivot

2шт.

7

471323R1

LINCH PIN

PIN - pivot lock

2шт.

8

1279624C1

HITCH BRACKET

BRACKET ASSEMBLY - pivot, left

1шт.

8

1279625C1

HITCH BRACKET

BRACKET ASSEMBLY - pivot, right (Dual markers)

1шт.

9

1279639C1

U-BOLT,5/8" - 11 x 4.96" W x 6.50" L

- pivot bracket, 5/8 inch NC

4шт.

10

129-107

NUT,5/8"-11, G5

8шт.

11

66584D

FITTING

- grease

1шт.

15

REF

INSTRUCTION

CYLINDER - marker lift (See Page 8-3)

2шт.

16

22964R1

HEADED PIN,1" x 2 7/16"

PIN - headed, 1 x 2-7/16 inch

2шт.

17

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

18

97488C1

HEADED PIN

PIN - clevis, 5/8 x 5-3/4 inch

2шт.

19

A33497

LINCH PIN,4.76mm OD Pin

PIN - snap lock, 3/16 inch diameter

2шт.

20

125789C1

BAR

- chain pivot

2шт.

21

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

2шт.

22

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

2шт.

23

546587R1

SPACER

- bar

2шт.

24

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- flange lock, 1/2 inch NC

2шт.

25

22090R1

HEADED PIN

PIN - clevis, 3/4 x 7/8 inch

4шт.

26

520175R1

CLIP

PIN - hair

4шт.

28

1279737C92

ARM

- pivot, left (Includes Ref. 29)(Shown)

1шт.

28

1279738C92

ARM

- pivot, right

1шт.

29

1254154C1

DECAL,Warning Keep Away Markers Actuate

- caution, marker

1шт.

30

1279713C1

CHAIN (AG)

CHAIN - marker

2шт.

31

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 x 2-1/4 inch

2шт.

32

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

33

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

34

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

2шт.

35

1279722C2

SUPPORT TUBE

TUBE ASSEMBLY - long(28-34 foot)(Includes Ref. 36)

2шт.

35

1279706C2

TUBE

ASSEMBLY - short(20-28 foot)

2шт.

36

1960316C1

SHEAR BOLT BUSHING

BUSHING - tube (Replaces 1279018C1)

1шт.

39

90817C1

GUIDE

BRACKET - chain guide

2шт.

40

90923C1

PLATE

STRAP - retaining

2шт.

41

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

42

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

43

1279835C1

SUPPORT

BRACKET - stop

2шт.

44

1279725C1

STOP

PAD - stop

2шт.

45

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

46

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

47

1976546C1

BAR

- marker bumper backup

2шт.

48

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

8шт.

See page 38 of the Hyd Fold Marker Book. This book missing many part numbers for the markers.

1шт.
