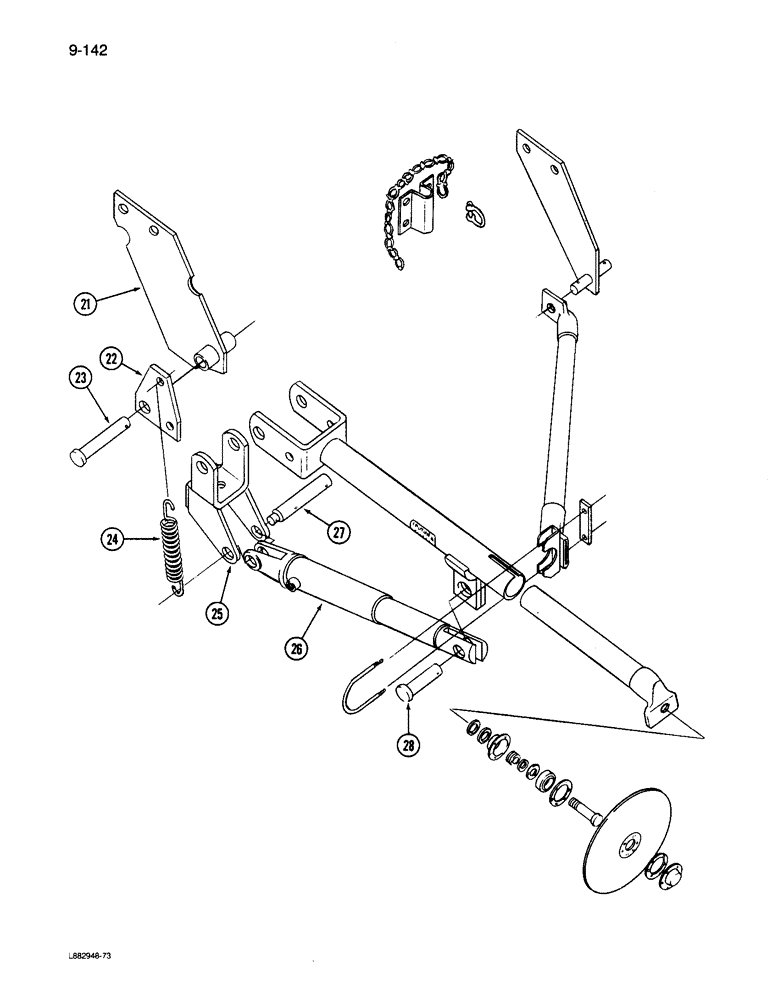

Запчасти Case IH 6200 (9-142) - DISC MARKER, HYDRAULIC CONTROLLED (09) - CHASSIS/ATTACHMENTS

21

817689C1

PIVOT

- marker front

1шт.

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

22

817697C1

PLATE

- spring anchor

1шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

23

23318R1

HEADED PIN,3/4" x 5"

PIN - headed, 3/4 x 5-1/4 inch

1шт.

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 3/32 inch

2шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

1шт.

24

819861C1

COIL SPRING

SPRING - cylinder helper

1шт.

25

817796C1

ANCHOR

- cylinder pivot

1шт.

26

548207R93

CYLINDER ASSY.

CYLINDER ASSEMBLY - marker lift (Replaced by 145622C91, see Cylinder 1 catalog for component breakdown)

1шт.

461181R92

SEAL KIT

KIT - O-ring and seal, service

1шт.

26

145622C91

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 204.7mm Stroke

CYLINDER ASSEMBLY - marker lift (See Cylinder 1 catalog for component breakdown)

1шт.

145682C1

SEALING RING

KIT - O-ring and seal, service

1шт.

26

841038C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - marker lift (Cessna optional, see Cylinder 1 catalog for component breakdown)

1шт.

843147C1

SEAL KIT

KIT - O-ring and seal, service

1шт.

27

817696C1

PIVOT PIN

PIN - cylinder pivot

1шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

1шт.

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

2шт.

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

28

22964R1

HEADED PIN,1" x 2 7/16"

PIN - headed, 1 x 2-7/16 inch

1шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

1шт.
