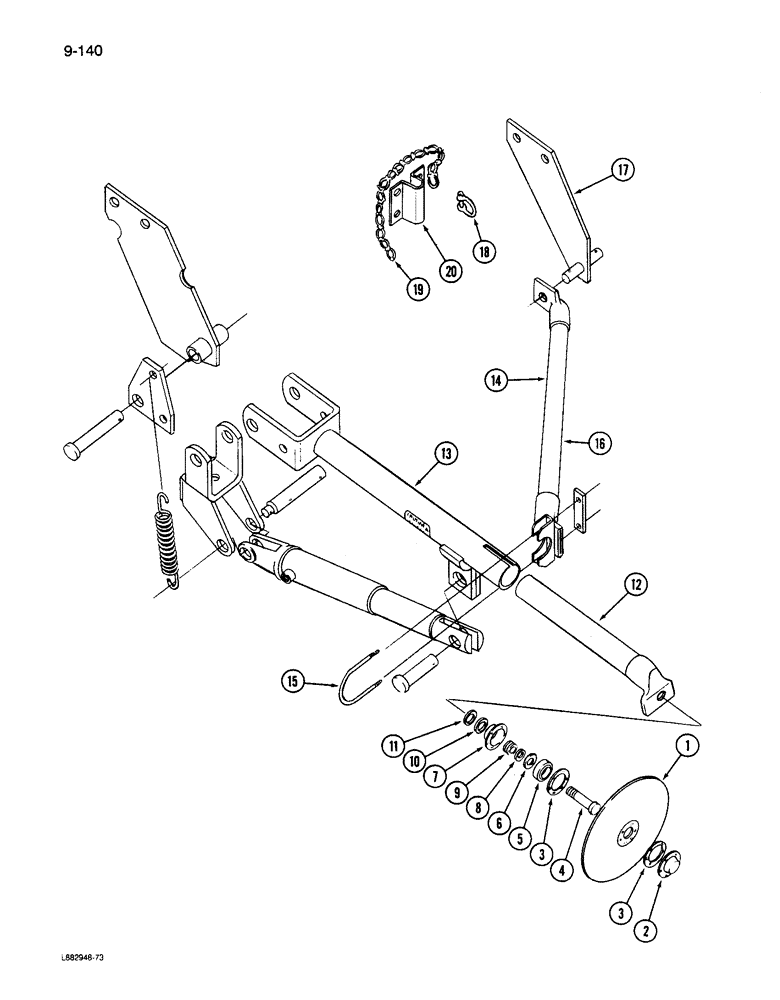

Запчасти Case IH 6200 (9-140) - DISC MARKER, HYDRAULICALLY CONTROLLED (09) - CHASSIS/ATTACHMENTS

815746C92

DISC

ASSEMBLY - marker

1шт.

1

603004R2

PLOW DISC

DISC - marker

1шт.

2

602990R1

CAP

- disc

1шт.

3

602992R1

GASKET

- bearing retainer

2шт.

4

602987R1

BOLT

BOLT - disc

1шт.

425-110

- hex, 5/8 inch NF

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

5

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

- disc

1шт.

6

602994R1

FLANGE

- dirt seal

1шт.

7

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

- bearing

1шт.

990322R91

RIVET

- binding head, 1/4 x 1/2 inch

6шт.

8

464628R1

SEAL

- dirt (Replaces 602993R1)

1шт.

9

602988R1

SPACER

- seal retainer

1шт.

10

591714R1

WASHER

- flat, 23/32 x 1-1/4 x 3/64 inch

1шт.

11

21712R1

WASHER

- flat, 23/32 x 1-1/2 x 7/64 inch

1шт.

12

596516R11

TUBE,1767.8, 33 mm Length

- disc telescoping

1шт.

13

840907C91

SUPPORT TUBE

TUBE - marker

1шт.

113116C1

CAUTION DECAL,Caution Stay Clear Markers Actuate Automaticlly

DECAL - caution

2шт.

14

817795C1

BRACE

- marker support

1шт.

15

596521R2

BOLT,U, 5/16" - 24 x 3 3/4"

U-BOLT - marker disc tube

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

129-122

NUT,5/16"-24, G5

2шт.

16

816581C1

BAR

- u-bolt clamping

1шт.

17

816472C1

PIVOT

- marker rear

1шт.

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 3/32 inch

1шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

1шт.

18

819167C1

SHACKLE

- chain, 1/4 inch

1шт.

19

NSS

NOT SOLD SEPARAT

CHAIN - marker lock-up (See Note)

1шт.

20

818491C1

SUPPORT

- lock-up chain

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20803R1

WASHER

- flat, 13/32 x 1 x 7/64 inch

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.
