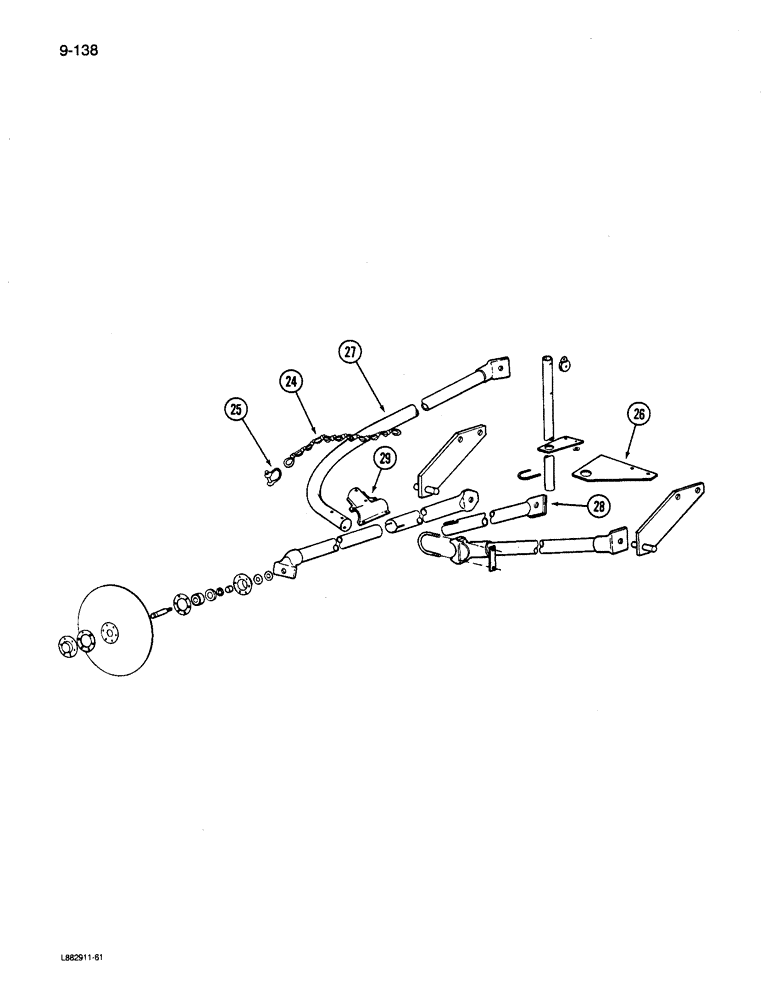

Запчасти Case IH 6200 (9-138) - DISC MARKER, MANUAL, CABLE TYPE, CONTD (09) - CHASSIS/ATTACHMENTS

24

NSS

NOT SOLD SEPARAT

CHAIN - marker lock-up (See Note)

1шт.

25

819167C1

SHACKLE

- chain, 1/4 inch

1шт.

26

819961C2

BAR

- marker rope mast pipe (For use on lead machine with endwise transport)

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

27

818326C1

TUBE

- disc marker brace (Multiple drill marker)

1шт.

28

818338C1

TUBE,1878.3 mm Length

- disc marker inner (Multiple drill marker)

1шт.

29

818309C1

TEE

- marker tube junction (Multiple drill marker)

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

9413953

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

6шт.
