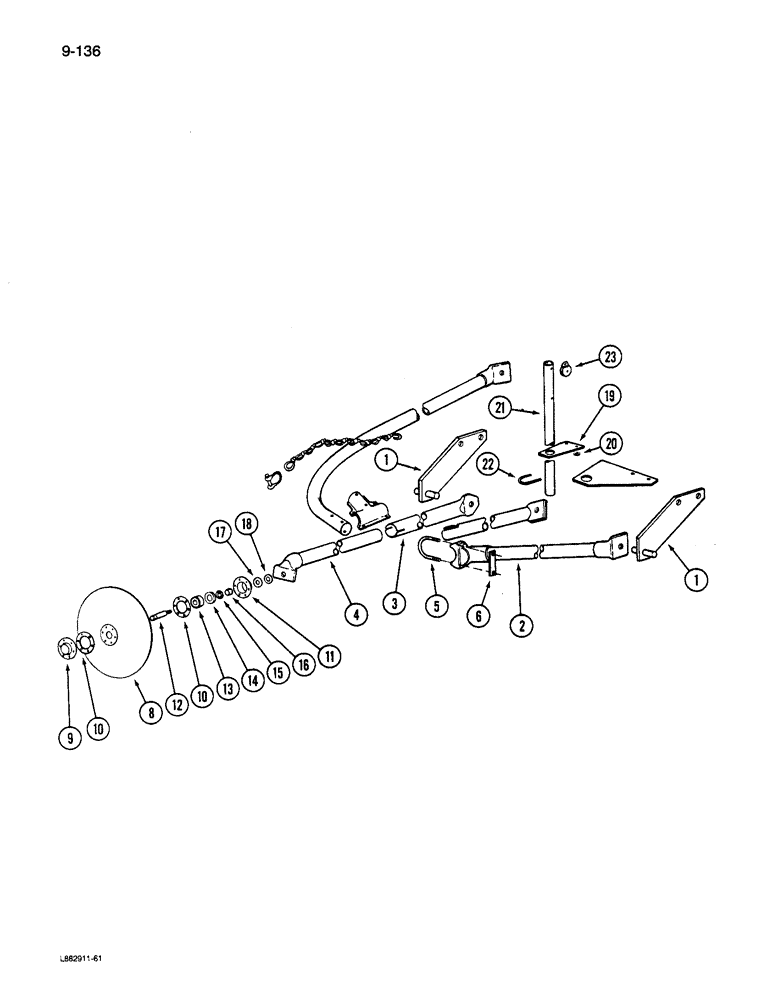

Запчасти Case IH 6200 (9-136) - DISC MARKER, MANUAL, CABLE TYPE (09) - CHASSIS/ATTACHMENTS

1

816472C1

PIVOT

- marker front and rear (Only one used with endwise trans- port)

2шт.

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

4шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

21753R1

WASHER

- flat, 25/32 x 1-1/2 x 1/16 inch

2шт.

2

816419C1

BRACE

- marker support (Single drill marker)

1шт.

3

815742C1

TUBE,1.775" ID, 2" OD, 26, 2.5" Length

- marker disc (Single drill marker)

1шт.

4

596516R11

TUBE,1767.8, 33 mm Length

- disc telescoping (Single drill marker)

1шт.

4

816672C1

TUBE,2730.5, 33 mm Length

- disc telescoping (Multiple drill marker)

1шт.

5

596521R2

BOLT,U, 5/16" - 24 x 3 3/4"

U-BOLT - marker disc tube (Single drill marker)

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

- flat, 11/32 x 3/4 x 3/64 inch

2шт.

129-122

NUT,5/16"-24, G5

2шт.

6

816581C1

BAR

- U-bolt clamping (Single drill marker)

1шт.

815746C92

DISC

ASSEMBLY - marker

1шт.

8

603004R2

PLOW DISC

DISC - marker

1шт.

9

602990R1

CAP

RETAINER - bearing

1шт.

10

602992R1

GASKET

- bearing retainer

2шт.

11

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

- bearing

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

- binding head, 1/4 x 1/2 inch

6шт.

12

602987R1

BOLT

BOLT - disc

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

121358

YOKE

- hex, 5/8 inch NF

1шт.

13

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

- disc

1шт.

14

602994R1

FLANGE

- dirt seal

1шт.

15

464628R1

SEAL

- dirt (Replaces 602993R1)

1шт.

16

602988R1

SPACER

- seal retainer

1шт.

17

591714R1

WASHER

- flat, 23/32 x 1-1/4 x 3/64 inch

1шт.

18

21712R1

WASHER

- flt, 23/32 x 1-1/2 x 7/64 inch

1шт.

19

815747C1

BAR

SUPPORT - disc marker rope mast

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

20

21309R1

WASHER

- flat, 13/32 x 7/8 x 11/64 inch(Used with grass seed)

1шт.

21

815748C1

TUBE,33.4 mm OD, 980.4 mm Length

MAST - pipe, rope pulley

1шт.

22

18344K

BOLT,3/8" - 16 x 2 1/8", Steel

U-BOLT - mast pipe

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

23

819043C91

PULLEY

- rope (Single drill marker)

2шт.

23

819043C91

PULLEY

- rope (Multiple drill marker)

3шт.

119203

PIN,3/8" x 3"

Split (Cotter), , 1 per pulley 3/8" x 3"

1шт.
