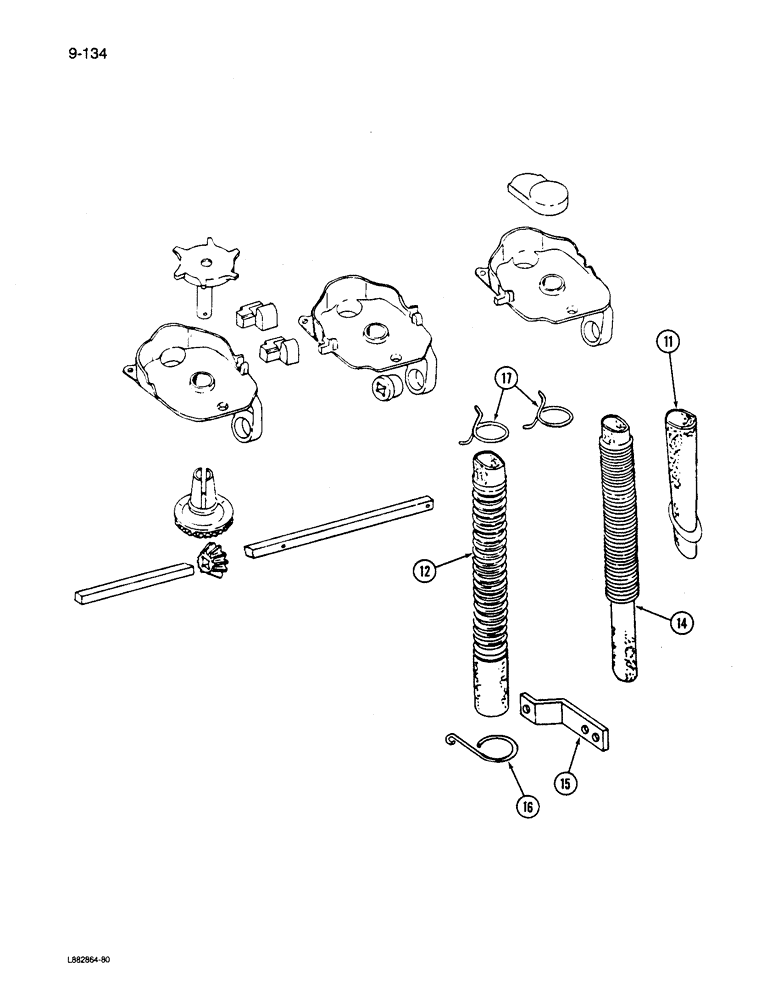

Запчасти Case IH 6200 (9-134) - FERTILIZER FEED, CONTD (09) - CHASSIS/ATTACHMENTS

11

607289R2

TUBE,1.25" OD, 7" Length

- combined delivery fertilizer (1 per feed)

1шт.

12

603589R3

TUBE

- separate delivery fertilizer (See Note A)

1шт.

14

819353C2

TUBE

- separate delivery fertilizer (See Note B)

1шт.

15

603722R2

BRACKET

- drag chain (Drills with single disc furrow opener)

1шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

16

603592R1

SPRING CLIP

CLAMP - separate delivery tube lower (drills with single disc furrow opener)

1шт.

17

603591R1

SPRING

- separate delivery tube upper

1шт.
