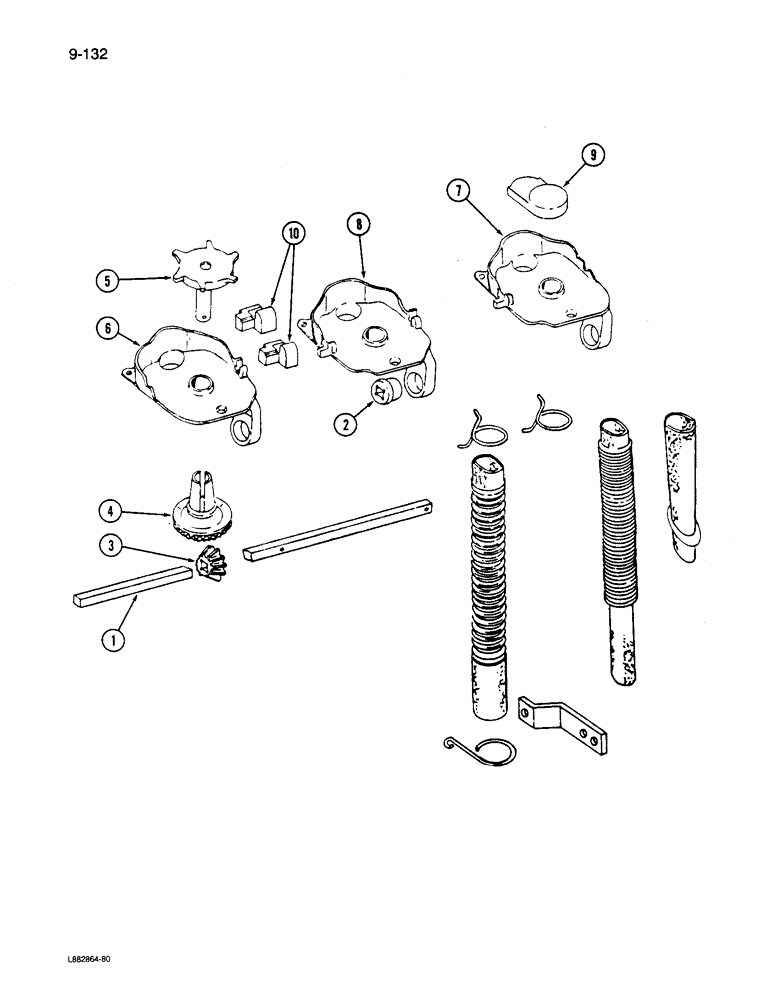

Запчасти Case IH 6200 (9-132) - FERTILIZER FEED (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

BAR - fertilizer feed shaft, 80-1/4 inch (14x7) (See Note)

1шт.

1

816228C1

BAR

- fertilizer feed shaft, 92-1/4 inch (16x6)

1шт.

1

NSS

NOT SOLD SEPARAT

BAR - fertilizer feed shaft, 58-1/4 inch (20x6 and 16x8) (See Note)

1шт.

1

NSS

NOT SOLD SEPARAT

BAR - fertilizer feed shaft, 68-1/4 inch (24x6 and 20x7) (See Note)

1шт.

1

NSS

NOT SOLD SEPARAT

BAR - fertilizer feed shaft, 79-1/4 inch (24x7 and 28x6) (See Note)

1шт.

112050

PIN,4.76mm OD x 22.23mm L

- square end straight, 3/16 x 7/8 inch

1шт.

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

569875R1

SQ HOLE WASHER

- square hole, 25/32 x 1-3/4 x 3/64 inch

1шт.

2

603462R1

TRUNNION

- bevel pinion (1 per bottom plate)

1шт.

3

603463R2

GEAR

- bevel pinion 12 tooth

1шт.

4

F282C

GEAR

- feed shaft bevel (1 per star wheel)

1шт.

5

602554R11

DRIVE SPROCKET

WHEEL ASSEMBLY - star feed (1 per feed)

1шт.

N62414

PIN,3.96mm OD x 28mm L

- shear

1шт.

6

603451R2

PLATE

- bottom end left (1 used 14x6, 16x6; 2 used 20x6, 24x6, 28x6, 20x7, 24x7, 16x8)

1шт.

7

603452R2

PLATE

- bottom end right (1 used 14x6, 16x6; 2 used 20x6, 24x6, 28x6, 20x7, 24x7, 16x8)

1шт.

8

603453R2

PLATE

- bottom intermediate (12 used 14x6, 16x8; 14 used 16x6; 16 used 20x6, 20x7; 20 used 24x6, 24x7; 24 used 28x6)

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (2 per plate)

1шт.

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch (1 per drive)

1шт.

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

- slotted fillister head, 1/4 NC x 5/8 inch

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

21801R1

WASHER

- flat, 9/32 x 3/4 x 3/64 inch

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(1 per bolt) 1/4"-20, G5

1шт.

9

603593R1

BLOCK

- fertilizer feed shut-off

1шт.

10

603457R1

SPACER

- bottom plate (12 used 13x7; 15 used 16x7; 16 used 18x7)

1шт.

10

815390C1

SPACER

- bottom plate (18 used 20x6)

18шт.

10

603457R1

SPACER

- bottom plate (22 used 24x7)

22шт.

10

815391C1

BLOCK

SPACER - bottom plate (14 used 16x8)

14шт.

10

816229C1

SPACER

- bottom plate (18 used 20x7)

18шт.
