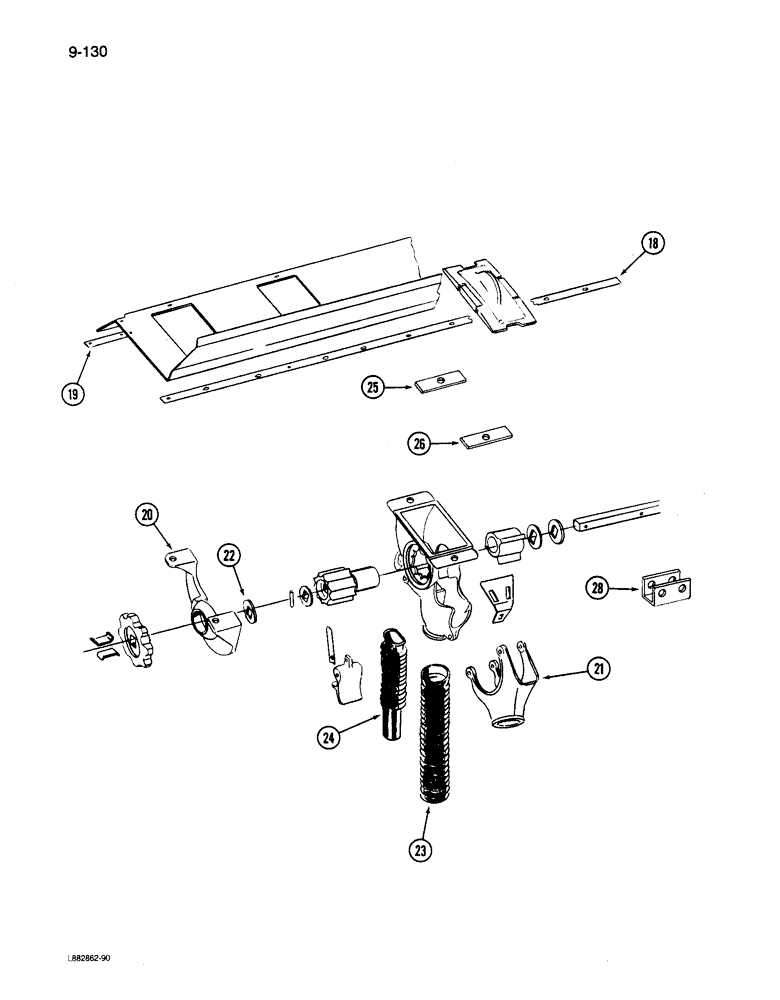

Запчасти Case IH 6200 (9-130) - GRAIN FEED, CONTD (09) - CHASSIS/ATTACHMENTS

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch (16x8, 20x6)

2шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch (20x6 and 16x8)

15шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch (24x6 and 20x7)

19шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch (24x7 and 28x6)

23шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120376

NUT,5/16"-18, G5

2шт.

18

816140C1

BAR

- feed cup guide rear (14x6)

2шт.

18

816141C1

BAR

- feed cup guide rear (16x6)

2шт.

18

815319C1

BAR

- feed cup guide rear (20x6)

2шт.

18

815320C1

BAR

- feed cup guide rear (24x6)

2шт.

18

816142C1

BAR

- feed cup guide rear (20x7)

2шт.

18

816143C3

BAR

- feed cup guide rear (24x7)

2шт.

18

816897C1

BAR

- feed cup guide rear (18x6)

2шт.

18

819089C2

BAR

- feed cup guide rear (16x8)

2шт.

19

816972C1

BAR

- feed cup guide front (14x6)

2шт.

19

816973C1

BAR

- feed cup guide front (16x6)

2шт.

19

816974C1

BAR

- feed cup guide front (20x6)

2шт.

19

816975C1

BAR

- feed cup guide front (24x6)

2шт.

19

816978C1

BAR

- feed cup guide front (20x7)

2шт.

19

816979C3

BAR

- feed cup guide front (24x7)

2шт.

19

816976C1

BAR

- feed cup guide front (28x6)

2шт.

19

819146C1

BAR

- feed cup guide front (16x8)

2шт.

20

815499C2

HANGER

- grass seed drive sprocket (1 per drive)

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

- hex, 5/16 NC x 7/8 inch (2 per hanger)

1шт.

611344R1

WASHER

- flat, 11/32 x 7/8 x 3/64 inch

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

21

815805C91

CUP

KIT - grain seed viewing cup (See note)

1шт.

17083R1

COTTER PIN,3/16" x 3"

3/16" x 3"

48шт.

22

N11791

WASHER

- grass seed drive sprocket

1шт.

23

606146R2

TUBE,1.25" ID, 1.906" OD, 44, 9" Length

- grain seed (Use with single disc furrow opener)

1шт.

24

819354C1

TUBE

- grain seed

1шт.

25

90987C1

BAR

- feed cup spacer

1шт.

26

90988C1

BAR

- feed cup spacer

1шт.

28

816133C1

CHANNEL

- shaft coupler (20x6, 24x6, 28x6, 20x7, 24x7, 16x8)

1шт.

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.
