Запчасти Case IH 6200 (4-08) - MARKER CONTROL HYDRAULICS ELECTRICAL SYSTEM, AUTOMATIC SEQUENCING (04) - ELECTRICAL SYSTEMS

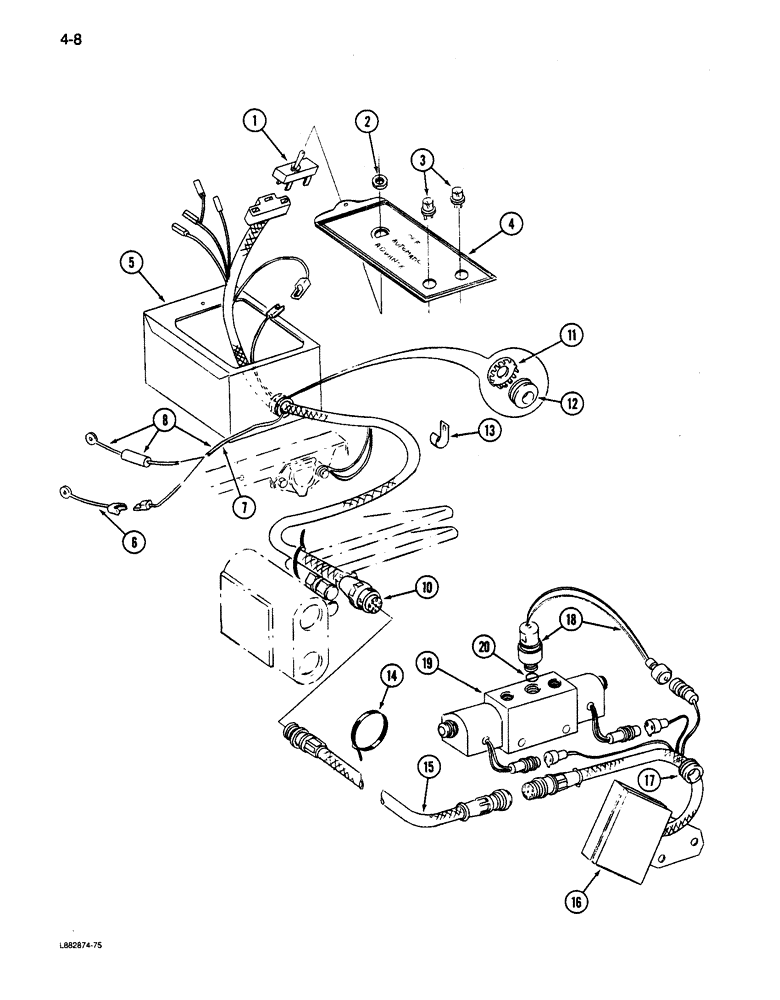

Схема запчастей Case IH 6200 - (4-08) - MARKER CONTROL HYDRAULICS ELECTRICAL SYSTEM, AUTOMATIC SEQUENCING (04) - ELECTRICAL SYSTEMS
8
11
4
7
1
18
19
10
5
15
14
2
17
3
13
6
16
20
12

Артикул

Название

Примечание

Количество

1

1250682C1

SWITCH

- marker control

1шт.

2

57603C1

NUT

- switch

1шт.

3

109369C91

LIGHT ASSY.

LAMP ASSEMBLY - indicator

2шт.

200557H1

BULB,C2V, #1815, 14V

- lamp, No. 1815

2шт.

71652C1

LENS

- lamp

1шт.

4

149493C1

PLATE

- control box

1шт.

24374R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

SCREW, SELF TAPPING, Cross Pan Hd, #8 x 3/8"

1шт.

5

116259C3

BOX

- control

1шт.

416-416

BOLT - hex, 1/4 NC x 1 inch

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

6

NSS

NOT SOLD SEPARAT

CABLE - fusible link (Order 149506C1)

1шт.

7

NSS

NOT SOLD SEPARAT

CABLE - power supply (Order 149506C1)

1шт.

8

149506C1

CABLE

- switch (Replaces 125141C1 and 125142C1)

1шт.

117142

FUSE,10 Amp, Type 3AG

- 10 ampere

1шт.

10

141405C1

HARNESS

- control wiring

1шт.

11

116270C1

PLUG

- control box

2шт.

12

169851C1

GROMMET

BUSHING - harness strain relief

2шт.

13

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - harness retaining

3шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120376

NUT,5/16"-18, G5

3шт.

14

58556C1

CABLE TIE

STRAP - harness and hose retaining

1шт.

15

840964C92

HARNESS

- control wiring, 7 foot (Drill half)

1шт.

15

840965C92

HARNESS

- control wiring, 10 foot (Optional)

1шт.

15

144910C1

HARNESS

- control wiring, 13 foot (Optional)

1шт.

16

144911C3

CONTROL

ASSEMBLY - electric with cables

1шт.

16

144911C4R

REMAN ELECT CONTROL

6200 CASE IH PRESS WHEEL GRAIN DRILL, ASSEMBLY - electric with cables, Reman for New PN 144911C3

1шт.

16

144911C4C

CORE-ELECTRONIC CONT

Return Number

1шт.

18

142526C3

SWITCH

ASSEMBLY - pressures, 1900PSI (See Note)

1шт.

19

REF

INSTRUCTION

VALVE ASSEMBLY - marker control (See page 4-11)

1шт.

20

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

841052C1

SPRING

- pressure, 1300 PSI (See note)

1шт.

111322C1

CABLE

- fuse to solenoid switch (In tractor fuse box)

1шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.
