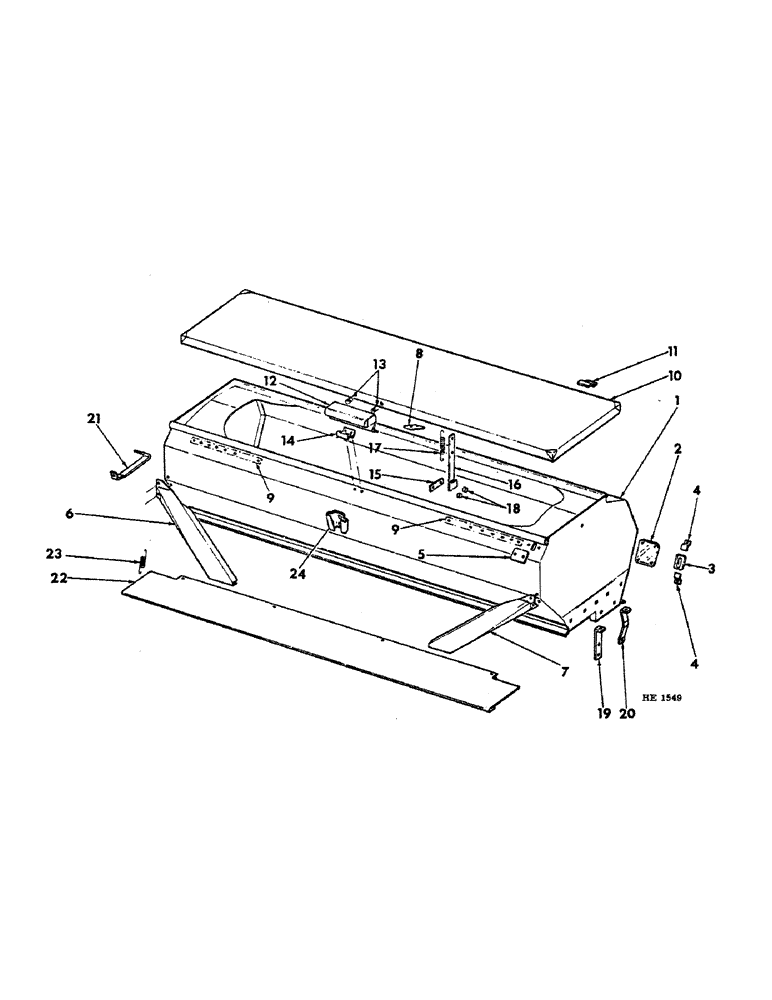

Запчасти Case IH 620 (A-08) - GRAIN AND FERTILIZER HOPPER UNIT

1

HOPPER ASSY, grain & fertilizer, 14 x 6, for service order 1, 816655C2 hopper assy, 2, 603264R1, window and 4, 604320R1, clip

1шт.

1

HOPPER ASSY, grain & fertilizer, 16 x 6 and 14 x 7, for service order 1, 816656C2, hopper assy, 2, 603264R1, window and 604320R1, clip

1шт.

1

HOPPER ASSY, grain & fertilizer, 20 x 6 and 16 x 8, for service order 1, 816657C2, hopper assy, 2, 603264R1, window and 604320R1, clip

1шт.

1

HOPPER ASSY, grain & fertilizer, 24 x 6 and 20 x 7, for service order 1, 816658C2, hopper assy, 2, 603264R1, window and 604320R1, clip

1шт.

1

HOPPER ASSY, grain & fertilizer, 28 x 6 and 24 x 7, for service order 1, 816659C3, hopper assy, 2, 603264R1, window and 604320R1, clip, machines built, Serial Range: prior-1970

1шт.

1

816655C2

HOPPER ASSY, grain & fertilizer, 14 x 6

1шт.

1

816656C2

HOPPER ASSY, grain & fertilizer, 16 x 6 and 14 x 7

1шт.

1

816657C2

HOPPER ASSY, grain & fertilizer, 20 x 6 and 16 x 8

1шт.

1

816658C2

HOPPER ASSY, grain & fertilizer, 24 x 6 and 20 x 7

1шт.

1

816659C3

HOPPER ASSY, grain & fertilizer, 28 x 6 and 24 x 7, machines built 1970 - 1973

1шт.

1

819067C92

HOPPER

ASSY, grain & fertilizer, 14 x 6

1шт.

1

819068C93

HOPPER

ASSY, grain & fertilizer, 16 x 6 & 14 x 7

1шт.

1

819075C93

HOPPER

ASSY, grain & fertilizer, 20 x 6 and 16 x 8

1шт.

1

819076C93

HOPPER

ASSY, grain & fertilizer, 24 x 6 and 20 x 7

1шт.

1

819082C93

HOPPER

ASSY, grain & fertilizer, 28 x 6 and 24 x 7, includes 1, 819809C1, prod graphic, machines built 1973 & since

1шт.

819809C2

DECAL

PRODUCT GRAPHIC, caution, no riders

1шт.

598808R1

SCREW,Short NK, 3/8"-16 x 1/2", G5, Full Thd

BOLT, 3/8-16 x 1/2 crg

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

6шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

2

815085C1

WINDOW

grain viewing, machines built, Serial Range: prior-1970

2шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 slt-pan-hd

8шт.

21801R1

WASHER

.281 x .734 x .056

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

3

603264R1

GLASS

WINDOW, seed vision machines built 1970 & since

2шт.

4

604320R1

CLIP

seed vision window machines built 1970 & since

4шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 slt-pan-hd

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

815115C1

PLATE

BAR, fertilizer indicator access hole, not required when machine equipped with fertilizer level indicator attachment

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

816074C2

BRACE

hopper diagonal LH

1шт.

7

816075C2

BRACE

hopper diagonal RH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

8

816071C1

BAR, vent mast cover, 24 x 7, not applicable to machines equipped with liquid fertilizer

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

816683C1

BAR

reinforcing, 20 x 6, 24 x 6, 20 x 7, 24 x 7 and 16 x 8, machines built 1970 & since

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

14шт.

120377

NUT,3/8" - 16, Gr 5

14шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

14шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga

14шт.

10

816082C1

COVER

ASSY, hopper, 14 x 6

1шт.

p/n 816082c1 is for a 7 1/2 ft door

1шт.

10

816083C1

COVER

ASSY, hopper, 16 x 6 and 14 x 7

1шт.

p/n 816083c1 is for a 8 1/2 ft door

1шт.

10

816084C1

COVER

ASSY, hopper, 20 x 6 and 16 x 8

1шт.

p/n 816084c1 is for a 10 1/2 ft door

1шт.

10

816085C1

COVER

ASSY, hopper, 24 x 6 and 20 x 7

1шт.

p/n 816085c1 is for a 12 1/2 ft door

1шт.

10

816086C1

COVER

ASSY, hopper, 28 x 6 and 24 x 7

1шт.

p/n 816086c1 is for a 14 ft door. MJP 6/4/99.

1шт.

11

815173C1

HINGE

cover, 5 used 14 x 6, 16 x 6 and 14 x 7, 7 used 20 x 6, 24 x 6, 28 x 6, 20 x 7, 24 x 7 and 16 x 8

1шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 sltd-pan-hd, 2 used per hinge

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 used per screw 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 used per screw 1/4"

1шт.

12

815174C1

LATCH

cover

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd, 20 x 6, 16 x 8, 24 x 6, 20 x 7, 28 x 6, 24 x 7

2шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

2шт.

9413952

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 hex lock PHC

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

N32176

SPRING

cover latch

2шт.

14

815175C1

CLIP

latch

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT, 1/4-20 x 1/2 carriage

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

815178C1

SPACER

BAR, hold open arm retainer

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

16

815176C1

ARM

cover hold open

2шт.

24660R1

CLEVIS PIN,5/16" x .719"

PIN, 5/16 x 23/32 rod-end-dld

2шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

2шт.

619855R1

WASHER

.344 x .750 x .054

6шт.

17

398304R1

SPRING

cover return

2шт.

18

594536R1

BUSHING

retainer bar

4шт.

19

816144C1

SUPPORT

hopper, 14 x 6, 16 x 6, 20 x 6, 24 x 6, 20 x 7, 28 x 6 and 16 x 8

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

12шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

20

816145C1

SUPPORT

hopper, 14 x 7 and 24 x 7

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-3/4 hex-hd

4шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

21

603538R1

BRACKET

BRACE, hopper centre, 20 x 6, 24 x 6, 28 x 6, 20 x 7, 24 x 7 and 16 x 8

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4-20 x 3/4 type 5 crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

22

816202C2

COVER

ASSY, fertilizer, 14 x 6

1шт.

22

816203C2

COVER

ASSY, fertilizer, 16 x 6 and 14 x 7

1шт.

22

816204C2

COVER

ASSY, fertilizer, 20 x 6 and 16 x 8

1шт.

22

816205C2

COVER

ASSY, fertilizer, 24 x 6 and 20 x 7

1шт.

22

816206C2

COVER

ASSY, fertilizer, 28 x 6 and 24 x 7, used w/fert attach

1шт.

23

815891C1

SPRING

fertilizer cover

4шт.

24

398976R1

BRACKET

S.M.V. mtg, see S.M.V. for service

1шт.
