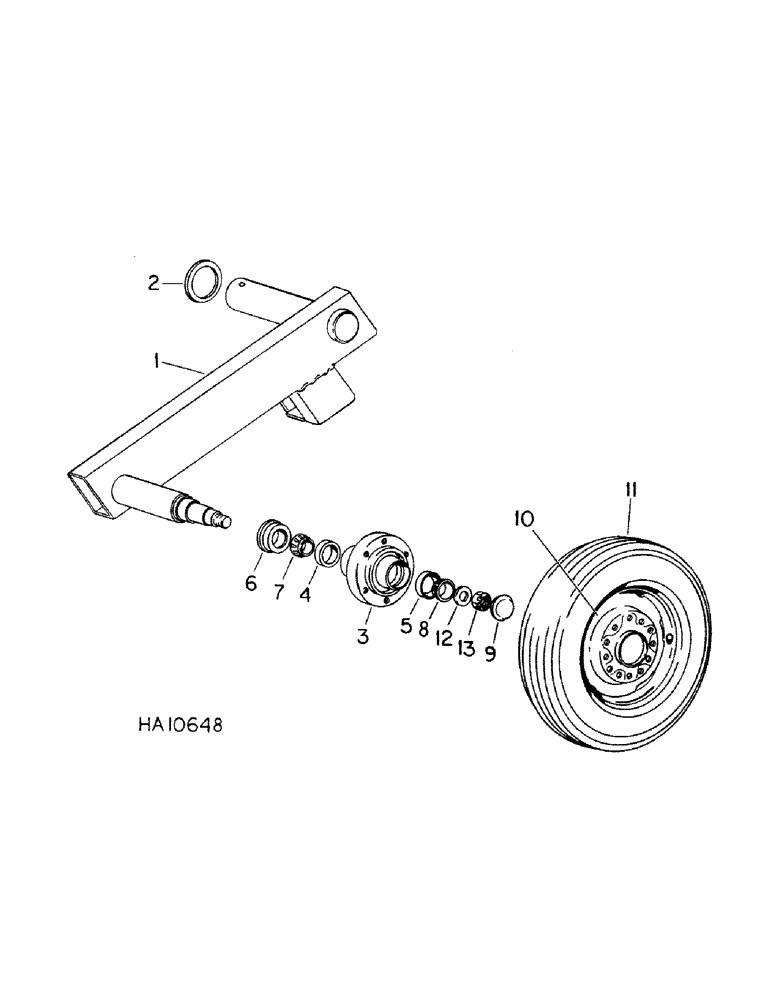

Запчасти Case IH 620 (C-10) - ENDWISE TRANSPORT, AXLES AND WHEELS

1

819959C92

AXLE

ASSY, transport wheel LH

1шт.

1

819960C92

AXLE

ASSY, transport wheel RH, consists of ref. nos. 12, 13

1шт.

19356R1

PIN,3/8" x 3", Coiled

1шт.

2

521159R1

WASHER

2.312 x 3.000 x .105, 1 per axle

1шт.

3

606468R11

HUB

ASSY, wheel, 1 per axle, includes 1, 663558R1 cup and 1, 651817R1 cup

1шт.

4

663558R1

BEARING CUP

CUP, wheel hub inner bearing, 1 per axle

1шт.

5

651817R1

BEARING CUP

CUP, wheel hub outer bearing, 1 per axle

1шт.

6

606556R91

OIL SEAL

SEAL ASSY, wheel hub oil, 1 per axle

1шт.

7

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, wheel hub inner bearing, 1 per axle

1шт.

8

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hub outer bearing, 1 per axle

1шт.

9

663906R1

CAP

hub, 1 per axle

1шт.

10

481344R91

WHEEL

14 x 8 KB, 1 per axle

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2-20 wheel, 6 per wheel

1шт.

11

TIRE, 9.5L-14 6 ply I-1 tubeless, 1 per wheel

1шт.

810768C1

VALVE

TR413, replaces 387841R91

1шт.

12

619373R1

WASHER

.906 x 2.000 x .164, 1 per axle

1шт.

13

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 hex SLTD, 1 per axle

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), , 1 per nut 1/8" x 1 3/4"

1шт.
