Запчасти Case IH 620 (C-04) - ENDWISE TRANSPORT, FRAME, SECOND OR THIRD MACHINE

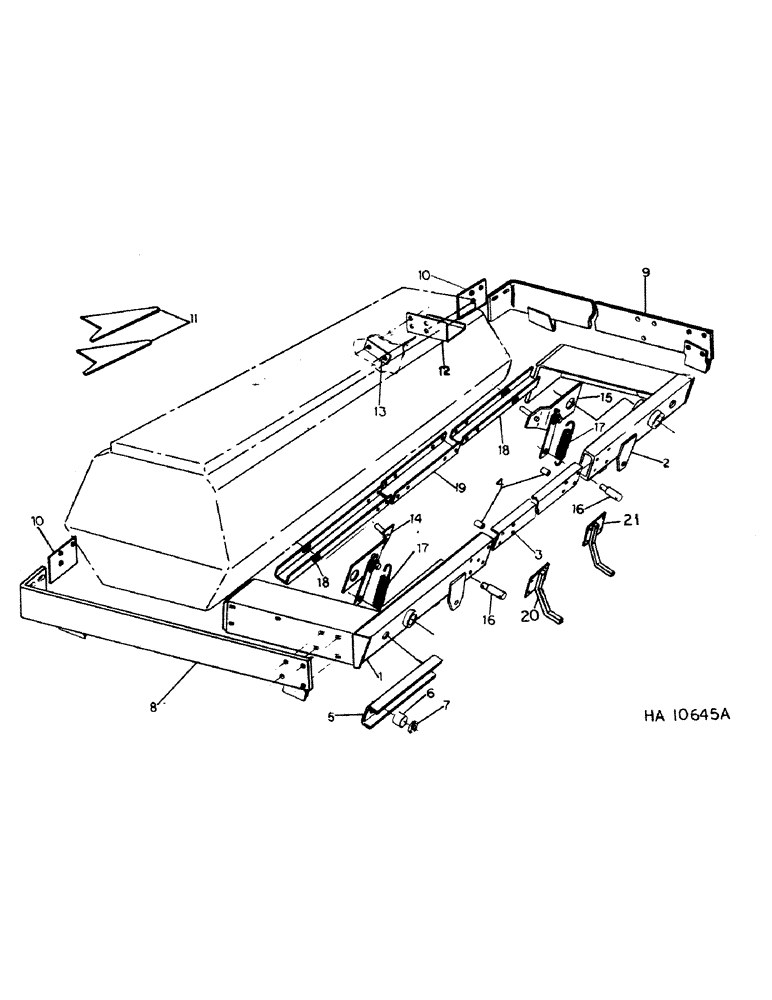

Схема запчастей Case IH 620 - (C-04) - ENDWISE TRANSPORT, FRAME, SECOND OR THIRD MACHINE
6
15
17
19
18
11
20
17
7
10
18
4
14
9
21
2
1
13
8
16
3
5
10
16
12

Артикул

Название

Примечание

Количество

1

819737C4

FRAME

ASSY, transport trail LH

1шт.

2

819738C4

FRAME

ASSY, transport trail RH

1шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 STR THD forming

4шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

3

819754C4

CHANNEL

transport frame tie

1шт.

4

819755C1

SPACER

pipe

8шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2 x 4 type 5

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

20601R1

WASHER

.531 x 1.250 x .105

8шт.

5

819806C1

CHANNEL

drill spreader

1шт.

608501R2

BOLT,Hex, 1" - 8 x 5 1/2", Drilled

1-8 x 5-1/2 hex hd dld

2шт.

427649

SLOTTED NUT,1"-8, G5

NUT, 1-8 hex SLTD

2шт.

NLS

NO LONGER SERVICED

SPLIT (COTTER), 3/16" x 2"

2шт.

6

819823C1

BUSHING

rear

2шт.

7

819814C1

SPACER

wear

2шт.

8

819852C2

SUPPORT

ASSY, transport frame LH

1шт.

9

819853C2

SUPPORT

ASSY, transport frame RH

1шт.

PO21281

PLOW BOLT,1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2-13 x 1-3/4 no. 3 plow type 5

6шт.

26588R1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 5

BOLT, 5/8-11 x 2-1/4 no. 3 plow type 5

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 used per bolt 1/2"-13, G5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex, 1 per bolt

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 1 per bolt 5/8"

1шт.

20601R1

WASHER

.531 x 1.250 x .105, 1 per bolt

1шт.

464623R1

WASHER

.656 x 1.500 x .105, 1 per bolt

1шт.

10

819753C2

BAR

frame spacer

4шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

467750R1

WASHER

.781 x 1.500 x .105

4шт.

11

819904C1

SUPPORT

caster tube reinforcing use w/620 drill prior to serial no. 4329

2шт.

12

819967C1

SUPPORT

marker tube bumper

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

13

819968C1

BAR

support backing

1шт.

14

819865C1

LEVER

ASSY, leveling LH

1шт.

15

819869C1

LEVER

ASSY, leveling RH

1шт.

464623R1

WASHER

.656 x 1.500 x .105

4шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

4шт.

16

819867C2

PIN

leveling spring anchor

2шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

17

819861C1

COIL SPRING

SPRING, leveling

2шт.

18

819791C1

CHANNEL

leveling

2шт.

19

819790C1

CHANNEL

connecting

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

20

840998C1

SUPPORT

ASSY, transport wheel lockout LH

1шт.

21

841020C1

SUPPORT

ASSY, transport wheel lockout RH

1шт.

Выбрано товаров: 54
