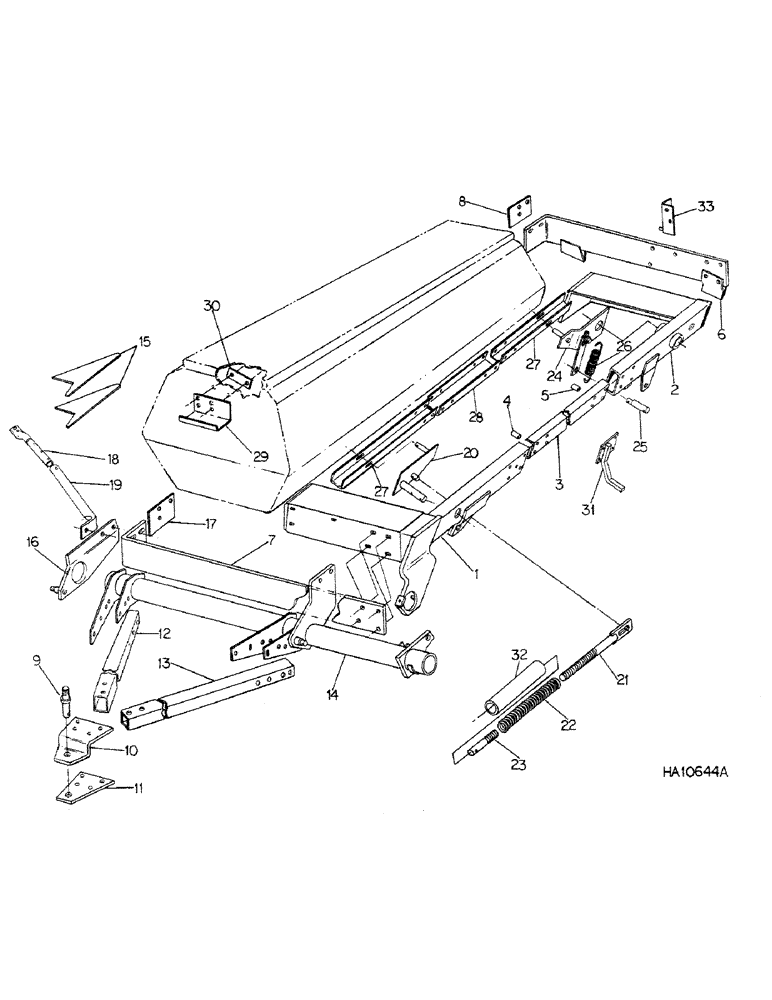

Запчасти Case IH 620 (C-02) - ENDWISE TRANSPORT, FRAME AND HITCH, LEADING MACHINE

1

819768C4

FRAME

ASSY, transport lead LH

1шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 STR THD forming lub

1шт.

PO21281

PLOW BOLT,1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2-13 x 1-3/4 no. 3 plow type 5

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

20601R1

WASHER

.531 x 1.250 x .105

3шт.

2

819738C4

FRAME

ASSY, transport RH

1шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 STR THD forming

2шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

3

819754C4

CHANNEL

transport frame tie

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 x 4 hex hd

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

20601R1

WASHER

.531 x 1.250 x .105

8шт.

4

819964C1

SPACER

pipe

4шт.

5

819755C1

SPACER

pipe

4шт.

6

819853C2

SUPPORT

ASSY, transport frame RH

1шт.

7

819751C2

SUPPORT

transport frame LH

1шт.

26588R1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 5

BOLT, 5/8-11 x 2-1/4 no. 3 plow type 5

8шт.

PO21281

PLOW BOLT,1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2-13 x 1-3/4 no. 3 plow type 5

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex, 1 per bolt

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 1 per bolt 5/8"

1шт.

20601R1

WASHER

.531 x 1.250 x .105

3шт.

464623R1

WASHER

.656 x 1.500 x .105, 1 per bolt

1шт.

8

819753C2

BAR

frame spacer

2шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

467750R1

WASHER

.781 x 1.500 x .105

2шт.

9

472790R2

STUD

hitch

1шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 hex.

1шт.

131049

HYD CONNECTOR

1-1/8 lock

1шт.

392181R91

PIN

klik

1шт.

10

819762C1

SUPPORT

hitch stud

1шт.

11

819763C1

PLATE

hitch stud

1шт.

12

819765C1

TUBE,55.8" Length

hitch LH

1шт.

13

819766C1

TUBE,61.1" Length

hitch RH

1шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8-11 x 4-1/2 hex hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

14

819756C1

TUBE

ASSY, hitch pivot

1шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 STR THD forming lub

1шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

5/8-11 x 4 hex hd

2шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8-11 x 4-1/2 hex hd

2шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

5/8-11 x 5 hex hd

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

6шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

464623R1

WASHER

.656 x 1.500 x .105

4шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

15

819904C1

SUPPORT

caster tube reinforcing use w/620 drill prior to serial no. 4329

2шт.

16

819958C1

SUPPORT

ASSY, hitch pivot tube front

1шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 STR THD forming lub

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

3/4-10 x 2-3/4 hex hd

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

17

819753C2

BAR

spacer

2шт.

18

819803C3

BRACE

ASSY, hitch front

1шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

5/8 x 4 type 5

1шт.

NLS

NO LONGER SERVICED

BOLT, 5/8-11 x 1-3/4 hex hd

2шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8-11 hex flange lock

2шт.

464623R1

WASHER

.656 x 1.500 x .105

1шт.

19

819801C1

BRACE

ASSY, hitch rear

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

3/4-10 x 3-1/4 hex hd

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

467750R1

WASHER

.781 x 1.500 x .105

1шт.

21933R1

PIN

5/8 x 2-1/2 std-hd-dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

20

819810C1

LEVER

ASSY, leveling front

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

609836R1

WASHER

1.031 x 1.750 x .054

2шт.

464623R1

WASHER

.656 x 1.500 x .105

3шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

3шт.

21

819796C1

ROD

ASSY, leveling

1шт.

22

819863C1

SPRING

leveling rod

1шт.

23

819862C1

STUD

leveling spring

1шт.

22634R1

PIN,3/8" x 1 3/4"

3/8 x 1.750 HD type 1

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

24

819869C1

LEVER

ASSY, leveling RH

1шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

25

819867C2

PIN

leveling spring anchor

1шт.

464623R1

WASHER

.656 x 1.500 x .105

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

26

819861C1

COIL SPRING

SPRING, leveling

1шт.

27

819791C1

CHANNEL

leveling

2шт.

28

819790C1

CHANNEL

connecting

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

29

819967C1

SUPPORT

marker tube bumper

2шт.

30

819968C1

BAR

support backing

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

31

841020C1

SUPPORT

ASSY, transport wheel lockout RH, 1 per machine

1шт.

32

818283C1

TUBE,1.315" OD, 508 mm Length

spring rod

1шт.

33

819955C1

PIVOT

ASSY, marker

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2-13 x 2 hex hd

2шт.
