Запчасти Case IH 620 (A-76) - LIQUID FERTILIZER DRIVE, FOR USE ON 24 X 7 DRILL ONLY, MACHINES PRIOR TO 1974 SEASON

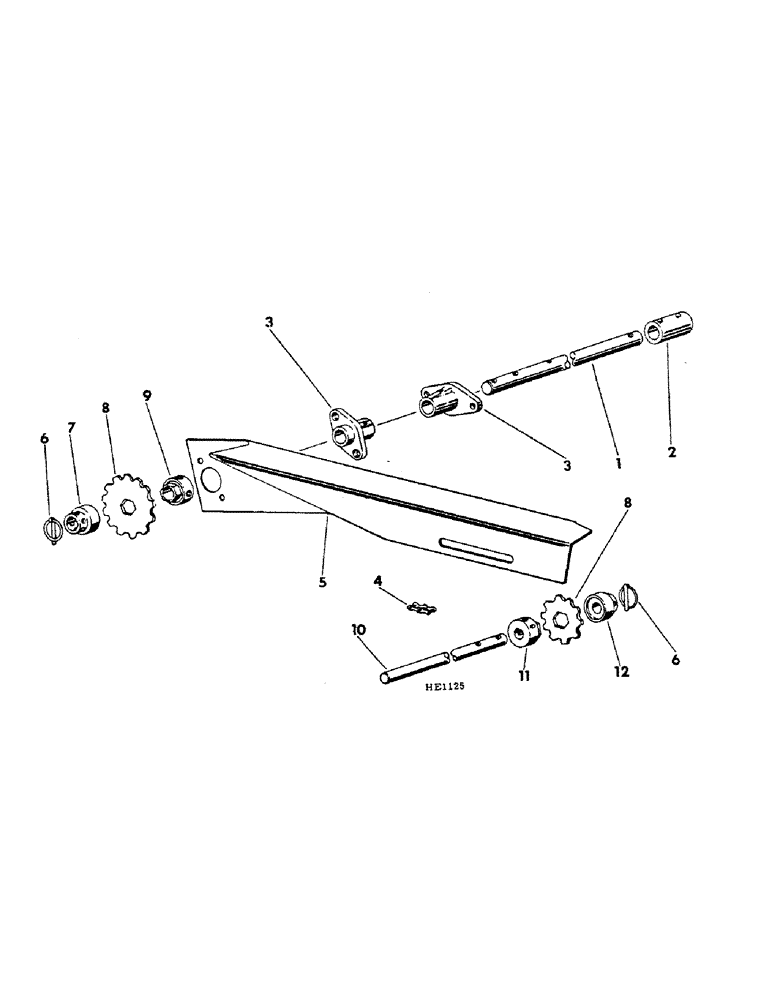

Схема запчастей Case IH 620 - (A-76) - LIQUID FERTILIZER DRIVE, FOR USE ON 24 X 7 DRILL ONLY, MACHINES PRIOR TO 1974 SEASON
3
10
12
6
4
6
9
5
7
11
2
8
8
1
3

Артикул

Название

Примечание

Количество

1

816516C1

ROD

fertilizer drive

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

2

816429C1

SPACER

drive rod coupling

1шт.

SB191

HEADED PIN,3/8" x 1 3/4"

PIN, 3/8 x 1-3/4 std-hd-dld

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

3

603121R1

HUB CAP

BEARING, fertilizer drive rod

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

4

CHAIN, squeeze pump drive, for service use 61 links of roller chain from 569088R91, 10 foot roll and add 1, 457113R91, connecting link and 2, 457114R91, offset links

1шт.

457113R91

CHAIN LINK

LINK, #2040 double pitch connecting

1шт.

457114R91

CHAIN LINK

LINK, #2040 double pitch offset

2шт.

5

816518C1

SHIELD, pump drive chain

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

6

200647C1

PIN

klik

2шт.

7

816664C1

COLLAR, sprocket countershaft

1шт.

8

816538C1

SPROCKET, 8T pump drive or driven

1шт.

8

816539C1

SPROCKET, 9T pump drive or driven

1шт.

8

816540C1

SPROCKET, 10T pump drive or driven

1шт.

8

816541C1

SPROCKET, 15T pump drive or driven

1шт.

8

816542C1

SPROCKET ASSY.

SPROCKET, 20T pump drive or driven

1шт.

9

816663C1

HUB, sprocket countershaft

1шт.

426374

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW, 3/8-16 x 1/2 soc-hd-cp-pt

4шт.

22099R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

2шт.

10

816582C1

SHAFT

squeeze pump

1шт.

11

816535C1

HUB, pump drive sprocket

1шт.

426374

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW, 3/8-16 x 1-2 soc-hd-cp-pt

1шт.

22099R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

1шт.

12

816537C1

COLLAR

sprocket pump shaft

1шт.

Выбрано товаров: 34
