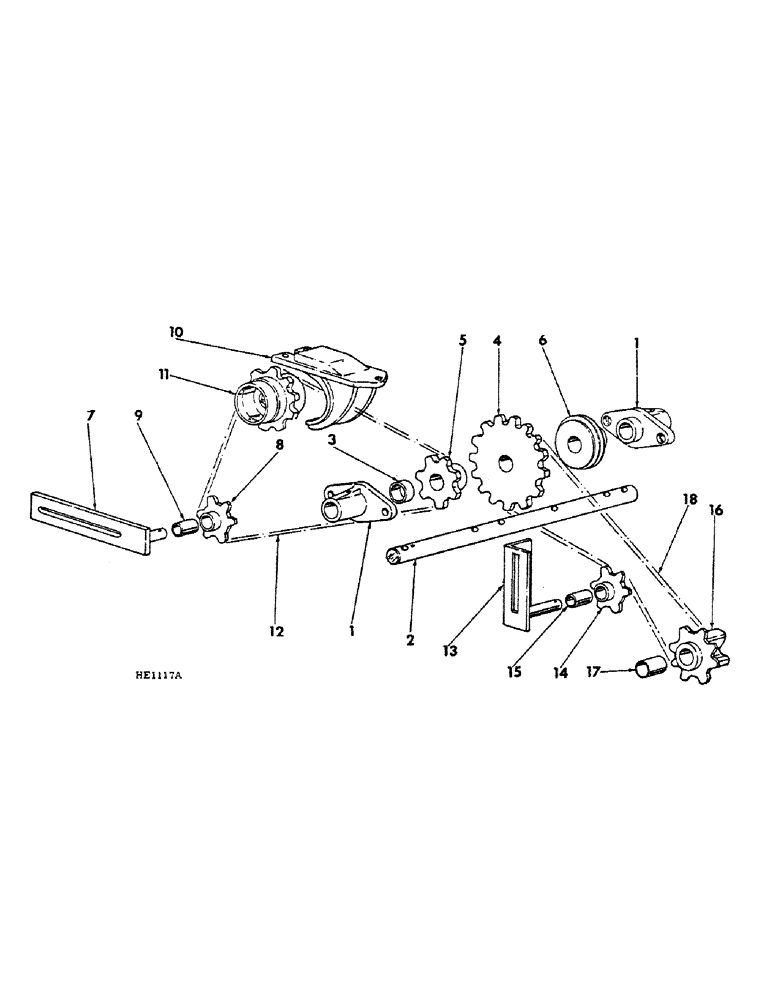

Запчасти Case IH 620 (A-07) - GRAIN DRIVE COUNTERSHAFT

1

603121R1

HUB CAP

BEARING, grain drive countershaft

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

2

816034C2

SHAFT

grain drive counter

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

3

M73125

SPACER,1" Pipe x 3/8"

sprocket

1шт.

4

816035C1

SPROCKET ASSY.

SPROCKET, grain countershaft driven 14T

1шт.

Q1331

HEADED PIN,3/8" x 2"

PIN, 3/8 x 2 std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

5

816035C1

SPROCKET ASSY.

SPROCKET, grain countershaft driver 14T, for fast speed

1шт.

5

816273C1

SPROCKET ASSY.

SPROCKET, grain countershaft driver 7T, for regular speed

1шт.

Q1331

HEADED PIN,3/8" x 2"

PIN, 3/8 x 2 std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

6

818050C1

GEAR

acreage counter worm

1шт.

Q1331

HEADED PIN,3/8" x 2"

PIN, 3/8 x 2 std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

7

816040C2

BRACKET

ASSY, grain drive tightener

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

21796R1

WASHER

.656 x 1.000 x .054

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 type 5 crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

.406 x 1.000 x .056

2шт.

8

819457C1

SPROCKET

6T chain tightener

1шт.

9

BUSHING, tightener sprocket for service order 1, 819457C1, sprocket, for service of cast sprocket

1шт.

10

816043C1

HANGER

grain shaft drive sprocket

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

11

816044C1

SPROCKET ASSY.

SPROCKET, grain feed shaft drive 9T

1шт.

12

CHAIN, grain feedshaft drive, for service use 23 links of 1-1/4 inch extended pitch agricultural roller chain from 569089R91, 10 foot roll and add 1, 587372R91, connecting link and 2, 456929R91, offset link

1шт.

456929R91

CHAIN LINK

LINK, #2050 double pitch offset

2шт.

587372R91

CONNECTING LINK

LINK, #2050 double pitch connecting

1шт.

13

816036C1

BRACKET

ASSY, grain shaft drive idler

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21796R1

WASHER

.656 x 1.000 x .054

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

14

819457C1

SPROCKET

6T grain shaft drive idler

1шт.

15

BUSHING, tightener sprocket for service order 1, 819457C1, sprocket, for service of cast sprocket

1шт.

16

816033C11

DRIVE SPROCKET

SPROCKET ASSY, grain drive clutch, includes 1, 289587R1, bushing

1шт.

17

289587R1

BUSHING

clutch sprocket

1шт.

18

CHAIN, grain countershaft drive, for service use 27 links of 1-1/4 inch extended pitch agricultural roller chain from 569089R91, 10 foot roll and add 1, 587372R91, connecting link and 2, 456929R91, offset links

1шт.

456929R91

CHAIN LINK

LINK, #2050 double pitch offset

2шт.

587372R91

CONNECTING LINK

LINK, #2050 double pitch connecting

1шт.
