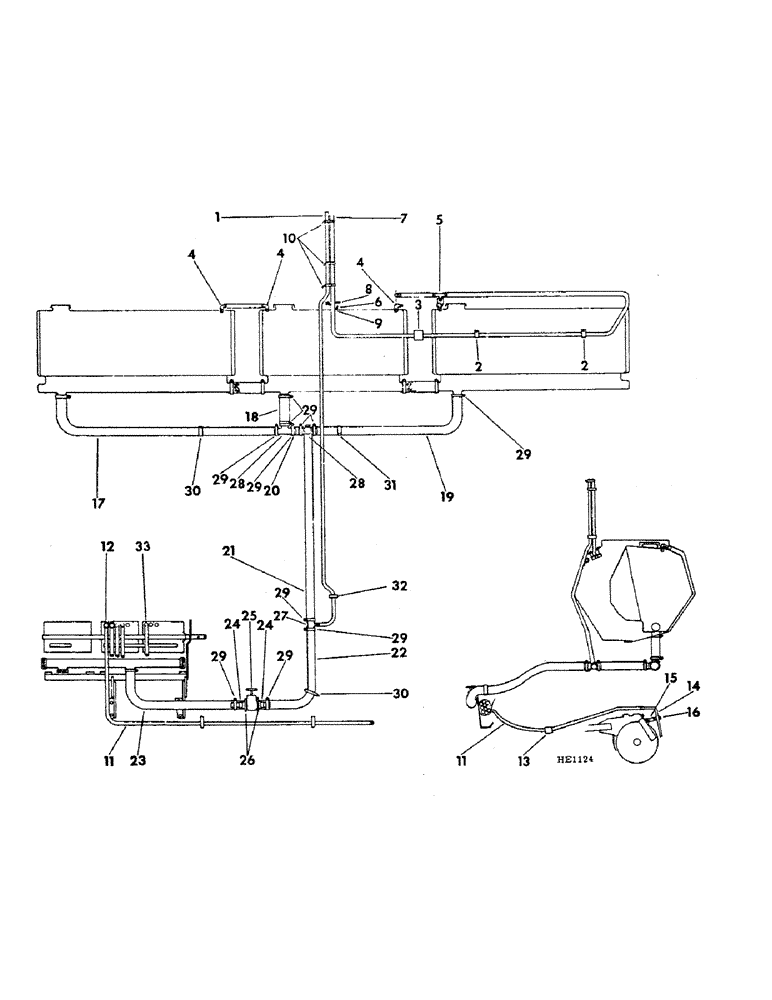

Запчасти Case IH 620 (A-74) - LIQUID FERTILIZER DELIVERY SYSTEM, FOR USE ON 24 X 7 DRILL ONLY, MACHINES PRIOR TO 1974 SEASON

1

816495C1

TUBE, vent and sight gauge, 1/2 inch I.D. x 5/8 inch O.D.

1шт.

2

179149

CLIP

CLAMP, vent tube

2шт.

3

86982772

GROMMET

hopper baffle vent tube

1шт.

4

816497C1

ELBOW

1/2-90 deg tank vent

4шт.

5

816498C1

TEE, 1/2 air vent tube

1шт.

6

816577C1

SUPPORT, vent mast tube

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

816500C1

TUBE, mast vent 1" OD, 32, 4" Length

1шт.

8

816501C1

BAR, mast mounting reinforcing

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

Vent mast to tube #06, .44/.78 Type F Worm

1шт.

10

816502C1

STRAP

, Serial Range: tube-mast

2шт.

11

TUBE, delivery and sight gauge, 3/8 I.D. x 1/2 O.D. tubing to be supplied by dealer from 100 foot rolls of bulk stock, part number for 1 foot, 816504C1

1шт.

12

210511R1

HOSE CLAMP,#8, 1/2", Spring

CLAMP, delivery tube

24шт.

13

816505C1

CLIP

delivery tube

24шт.

14

816506C1

PIPE

fertilizer applicator

24шт.

15

816507C1

BAR, applicator pipe support

24шт.

594212R1

WASHER, support bar

24шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

24шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

24шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

24шт.

16

595432R1

CLAMP

applicator pipe

24шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

24шт.

120377

NUT,3/8" - 16, Gr 5

24шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

24шт.

21741R1

WASHER

.406 x .875 x .105

24шт.

17

TUBE, fertilizer tank to tee, 1-1/4 I.D. x 1-3/4 O.D. x 65 inch tubing to be cut from 20 foot roll part number for 1 foot, 816509C1

1шт.

18

TUBE, centre fertilizer tank to tee, 1-1/4 I.D. x 1-3/4 O.D. x 5 inch tubing to be cut from 20 foot roll part number for 1 foot, 816509C1

1шт.

19

TUBE, fertilizer tank to tee, 1-1/4 I.D. x 1-3/4 O.D. x 42 inch tubing to be cut from 20 foot roll parts number for 1 foot, 816509C1

1шт.

20

TUBE, tee to tee, 1-1/4 I.D. x 1-3/4 O.D. x 3-1/2 in. tubing to be cut from 20 foot roll part number for 1 foot, 816509C1

1шт.

21

TUBE, tee to discharge tube tee, 1-1/4 I.D. x 1-3/4 O.D. x 29 inch tubing to be cut from 20 foot roll part number for 1 foot, 816509C1

1шт.

22

TUBE, gauge tee to gate valve, 1-1/4 I.D. x 1-3/4 O.D. x 20 inch tubing to be cut from 20 foot roll part number for 1 foot, 816509C1

1шт.

23

TUBE, squeeze pump to gate valve, 1-1/4 I.D. x 1-3/4 O.D. x 40 inch tubing to be cut from 20 foot roll part number for 1 foot, 816509C1

1шт.

24

816510C1

ADAPTOR, tank and pump tube valve

2шт.

25

816511C1

VALVE ASSY, 1-1/4 inch gate

1шт.

26

336886C1

U-BOLT, gate valve

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

27

816513C1

TEE, sight gauge tube

1шт.

28

816514C1

TEE, tank discharge tube

2шт.

29

279024R91

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP, discharge tube

14шт.

30

142846H1

CLAMP, tank to squeeze pump tube

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

31

142846H1

CLAMP, tank to pump tube

1шт.

180171

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2-13 x 3/4 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

32

179149

CLIP

CLAMP, sight gauge tube

1шт.

33

816479C91

PUMP

ASSY, fertilizer squeeze, for components refer to liquid fertilizer squeeze pump

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.
