Запчасти Case IH 620 (A-72) - LIQUID FERTILIZER PUMP AND MOUNTING, FOR USE ON 24 X 7 DRILL ONLY, MACHINES PRIOR TO 1974 SEASON

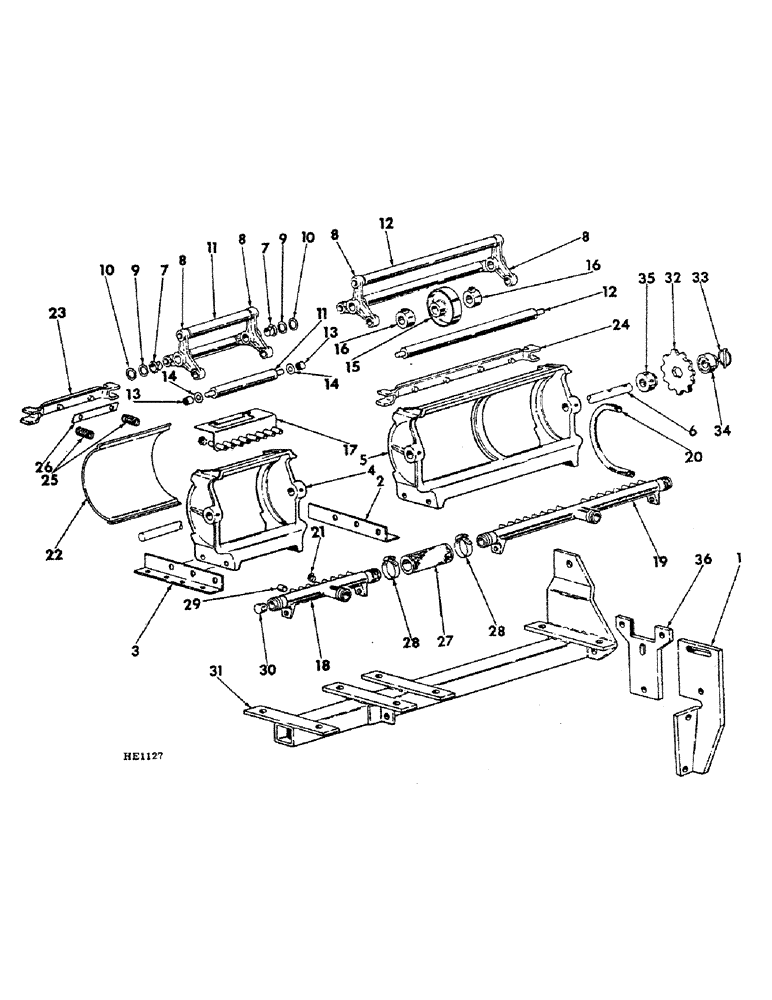

Схема запчастей Case IH 620 - (A-72) - LIQUID FERTILIZER PUMP AND MOUNTING, FOR USE ON 24 X 7 DRILL ONLY, MACHINES PRIOR TO 1974 SEASON
14
32
12
16
27
20
11
6
28
5
36
8
26
3
10
28
17
13
34
7
23
1
35
25
30
9
16
13
11
4
31
14
33
22
15
7
19
29
8
10
8
8
24
12
9
21
18
2

Артикул

Название

Примечание

Количество

816479C91

PUMP

ASSY, fertilizer squeeze, consists of all parts listed

1шт.

1

816481C1

SUPPORT, squeeze pump base, not part of pump assy

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

4шт.

231-1448

NUT,1/2"-13, GB

1/2-13 hex lock

2шт.

178374R1

WASHER

.531 x 1.250 x .054

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

2

493762R1

ANGLE, pump base LH

2шт.

3

493763R1

ANGLE, pump base RH

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

8шт.

619856R1

WASHER

.406 x 1.000 x .056

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

4

491664R1

FRAME, 8 port pump

1шт.

5

493752R1

FRAME, 16 port pump

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, straight drive lub

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

12шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

6

816582C1

SHAFT

squeeze pump

1шт.

7

373445R1

BUSHING,22.25mm ID x 22.99mm L

nylon

4шт.

8

493760R1

ARM, roller

4шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, cup-pt set

8шт.

9

22480R1

WASHER

.906 x 1.500 x .027

4шт.

10

Q113

WASHER

.906 x 1.375 x .042

4шт.

11

816583C1

ROLLER

8 port frame

3шт.

12

816584C1

ROLLER

16 port frame

3шт.

13

816536C91

BEARING, NEEDLE,0.5" ID x 0.6875" OD x 0.625"

12шт.

14

816585C1

WASHER

nylon

12шт.

15

816586C1

ROLLER

back-up

1шт.

16

816587C1

COLLAR

set

2шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, cup-pt set

2шт.

17

491685R1

MANIFOLD, discharge

3шт.

19281R1

BOLT

5/16-18 x 1 carriage

6шт.

134238R1

WASHER

.344 x 1.00 x .054

6шт.

7500032

BUSHING

NUT, 5/16-18 wing

6шт.

18

816588C1

MANIFOLD

8 port intake

1шт.

19

816589C1

MANIFOLD

16 port intake

1шт.

20

491684R1

HOSE

5/16 x 13 inch metering

24шт.

21

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

48шт.

22

491670R1

PLATE, back

3шт.

23

491674R1

BAR, 8 port spring anchor

2шт.

24

493761R1

BAR, 16 port spring anchor

2шт.

18896R1

BOLT, 5/16-18 x 1-3/4 sq-hd

8шт.

134238R1

WASHER

.344 x 1.000 x .054

8шт.

142745

NUT, WING

NUT, 5/16-18 wing

8шт.

25

491672R1

SPRING

back-plate

12шт.

26

816593C1

SHIM

back-plate

1шт.

27

816591C1

HOSE

connecting

1шт.

28

279027R91

CLAMP,#28, 1.31/2.25 Type F Worm

connecting hose

2шт.

29

491681R1

CAP, rubber

1шт.

30

816592C1

PLUG

manifold

3шт.

31

816590C1

PUMP

BASE ASSY, squeeze pump

1шт.

32

490584R1

SPROCKET, 8T pump drive

1шт.

32

490585R1

SPROCKET, 9T pump drive

1шт.

32

490586R1

SPROCKET, 10T pump drive

1шт.

32

490587R1

SPROCKET, 15T pump drive

1шт.

32

816542C1

SPROCKET ASSY.

SPROCKET, 20T pump drive

1шт.

33

200647C1

PIN

klik

2шт.

34

816537C1

COLLAR

sprocket pump shaft

1шт.

34

816664C1

COLLAR, sprocket countershaft

1шт.

35

490582R1

HUB, sprocket pump drive

1шт.

35

816663C1

HUB, sprocket countershaft

1шт.

426374

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW, 3/8-16 x 1/2 soc-hd-cp-pt

4шт.

22099R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

2шт.

36

816597C1

YOKE, pump mounting

2шт.

181698

BOLT,Hex, 1/2" - 20 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

Выбрано товаров: 66
