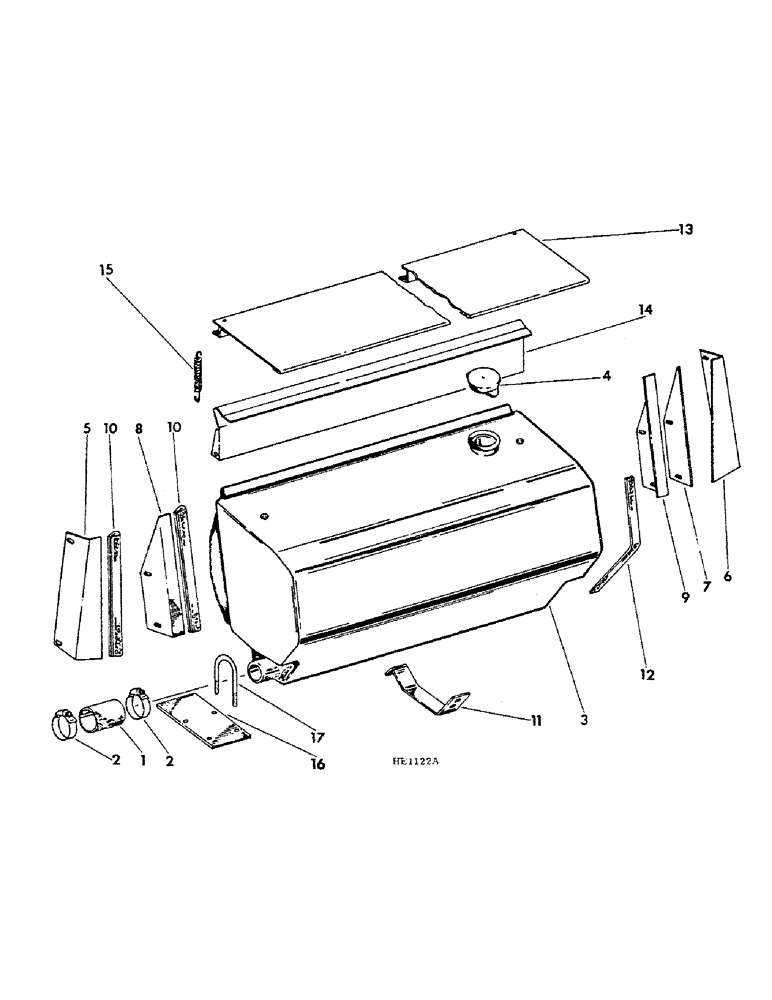

Запчасти Case IH 620 (A-71) - LIQUID FERTILIZER TANK, FOR USE ON 24 X 7 DRILL ONLY, MACHINES PRIOR TO 1974 SEASON

1

816494C1

TUBE, tank connecting

2шт.

2

279029R91

HOSE CLAMP,#48, 2.56/3.50 Type F Worm

CLAMP, connecting tube

4шт.

3

816477C1

TANK, fertilizer outer

2шт.

3

816478C1

TANK, fertilizer centre, shown

1шт.

4

816482C1

CAP, fertilizer tank

3шт.

5

816483C1

SUPPORT, tank end LH

1шт.

6

816484C1

SUPPORT, tank end RH

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8-16 x 5/8 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

816729C1

BAR, tank support shim, machines built 1971 & since

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

8

816485C2

SUPPORT, tank intermediate LH

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

816486C2

SUPPORT, tank intermediate RH

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

816487C1

SEAL

partition and support

2шт.

11

816489C1

SUPPORT, tank bottom

3шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4-20 x 3/4 carriage

6шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

120376

NUT,5/16"-18, G5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

12

816490C1

STRIP

fertilizer tank

9шт.

13

816492C1

COVER, fertilizer splash guard

1шт.

14

816578C1

SECTION, hinge end LH

1шт.

14

816579C1

SECTION, hinge end RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 he-xhd

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

14

816580C1

SECTION, hinge centre

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

15

4A

SPRING

cover retaining

2шт.

16

816660C1

BAR

tank hold down

4шт.

17

336888C2

U-BOLT, hold down bar

6шт.

596934R1

NUT

5/16-18 lock

12шт.
