Запчасти Case IH 620 (A-69) - THREE DRILL HITCH HYDRAULICS, RECOMMENDED HYDRAULICS, 16 X 6, 14 X 7, 24 X 7, 28 X 6

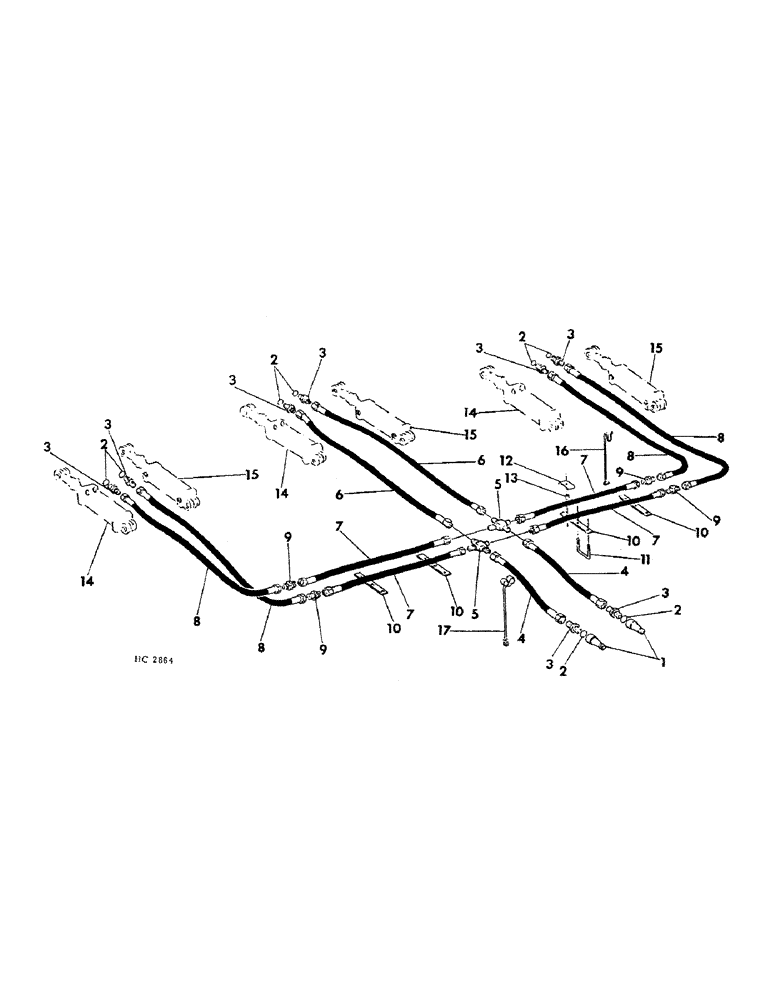

Схема запчастей Case IH 620 - (A-69) - THREE DRILL HITCH HYDRAULICS, RECOMMENDED HYDRAULICS, 16 X 6, 14 X 7, 24 X 7, 28 X 6
15
7
9
4
5
3
10
14
9
5
17
9
9
8
8
2
3
4
3
3
10
1
14
13
7
2
14
2
2
7
11
8
8
15
6
15
3
12
3
2
16
6
3
3
10
7
10

Артикул

Название

Примечание

Количество

1

395149R1

QUICK MALE COUPLING

COUPLER, male hose, opt to use 544787R91, coupler

2шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER, male hose, opt to use 395149R1, coupler

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

8шт.

3

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, reducer

8шт.

4

819970C1

HOSE

ASSY, 3/8 I.D. x 100 SAE 100R1 SGL wire braid rubber covered w/3/4-16 fem swivel 37 deg flare

2шт.

5

9403177

4 WAY CONNECTION,3/4"-16, 37 Degree

CROSS, 1/2 C-Z hyd flared tube

2шт.

6

675984R91

HOSE

ASSY, 3/8 I.D. x 80 SAE 100R1 SGL wire braid rubber covered w/3/4-16 fem swivel 37 deg flare

2шт.

7

819992C1

HOSE

ASSY, 3/8 I.D. x 128 SAE 100R1 SGL wire braid rubber covered w/3/4-16 fem swivel 37 deg flare

4шт.

8

179411C1

HOSE

ASSY, 3/8 I.D. x 61 SAE 100R1 SGL wire braid rubber covered w/3/4-16 fem swivel 37 deg flare, 4 used on 16 x 6 & 14 x 7, replaces 675987R91

1шт.

8

819992C1

HOSE

ASSY, 3/8 I.D. x 128 SAE 100R1 SGL wire braid rubber covered w/3/4-16 fem swivel 37 deg flare, 4, 24 x 7, 28 x 6

1шт.

9

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1/2 C-Z hyd flared tube

4шт.

10

819854C1

BAR

hose support

4шт.

11

811627C1

BOLT

U-BOLT

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

8шт.

12

379045R1

CLAMP

hose

4шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

5/16-18 x 1-3/4

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

13

618631R1

SPACER

clamp

4шт.

14

371291R97

CYLINDER

ASSY, 2.5 x 8 DA 2500 PSI, opt to use 1, 844025C92, cyl, for components refer to CYL-1 parts catalog

3шт.

14

363137R94

PACKAGE

KIT, o-ring and seal service

1шт.

15

844025C92

CYLINDER

ASSY, 2.5 x 8 DA 2500 PSI, opt to use 1, 371291R97, cyl, for components refer to CYL-1 parts catalog

3шт.

15

844042C91

PACKAGE

KIT, o-ring and seal service

1шт.

16

651793R2

SUPPORT

ROD, hyd hose support, 1 per machine

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd, 1 per rod

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex, 1 per bolt

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 1 per bolt 5/8"

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga, 2 per bolt

1шт.

17

SUPPORT, hose hydraulic, for service parts refer to hydraulic hose support

1шт.

Выбрано товаров: 29
