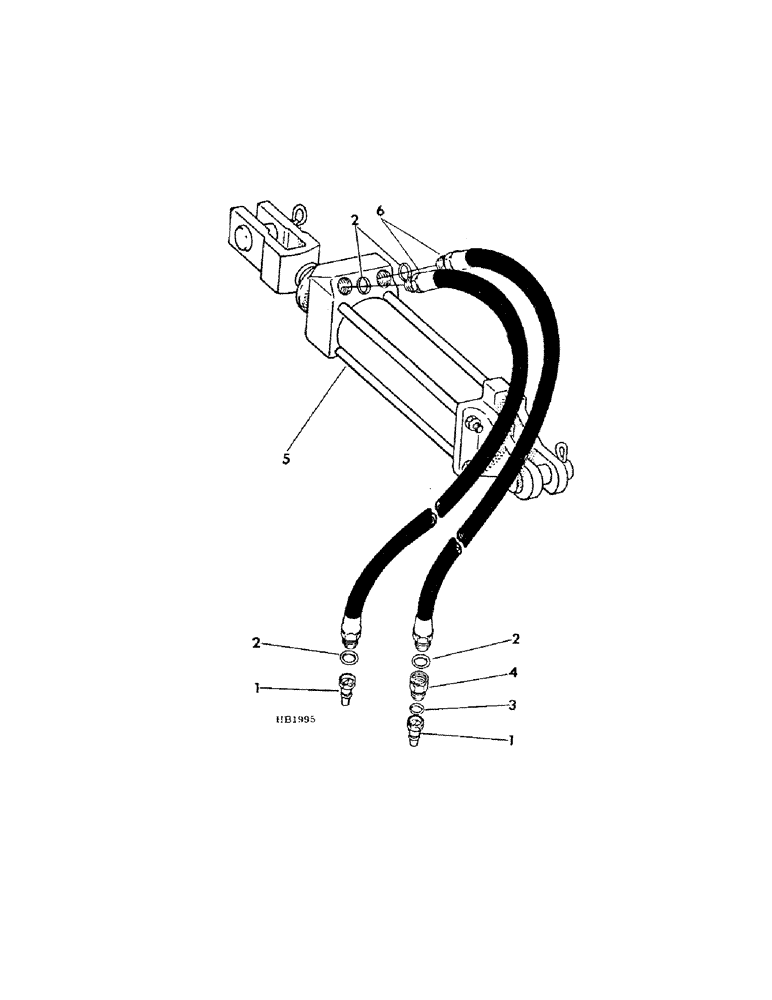

Запчасти Case IH 620 (A-67) - RECOMMENDED HYDRAULIC PARTS

1

395149R1

QUICK MALE COUPLING

COUPLER, hydraulic hose male, opt w/544787R91, coupler

2шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER, hydraulic hose male, opt w/359149R1, coupler

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

male coupler and hose

4шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector use w/hyd disk marker

1шт.

4

484723R1

LOCK VALVE

VALVE ASSY, restrictor use w/hyd disk marker

1шт.

5

371291R97

CYLINDER

ASSY, 2.5 x 8 DA 2500 PSI, optional to use 1, 371292R95, for components refer to CYL-1 parts catalog

1шт.

5

363137R94

PACKAGE

KIT, o-ring and seal service

1шт.

5

371292R95

CYLINDER

ASSY, 3.5 x 8 DA 2500 PSI, optional to use 1, 371291R97, for components refer to CYL-1 parts catalog

1шт.

5

363138R94

PACKAGE

KIT, o-ring and seal service

1шт.

6

372437R91

HOSE

1/2 inch I.D. one wire braid 112 inch long 7/8-14 ends, recommended length for use on machine equipped w/hydraulic lift

2шт.

6

478706R91

HOSE ASSY.

HOSE, 1/2 inch I.D. one wire braid 175 inch long 7/8-14 ends, recommended length for use on machine equipped w/hyd disk marker

2шт.
