Запчасти Case IH 620 (A-67[1]) - HYDRAULIC HOSE SUPPORT

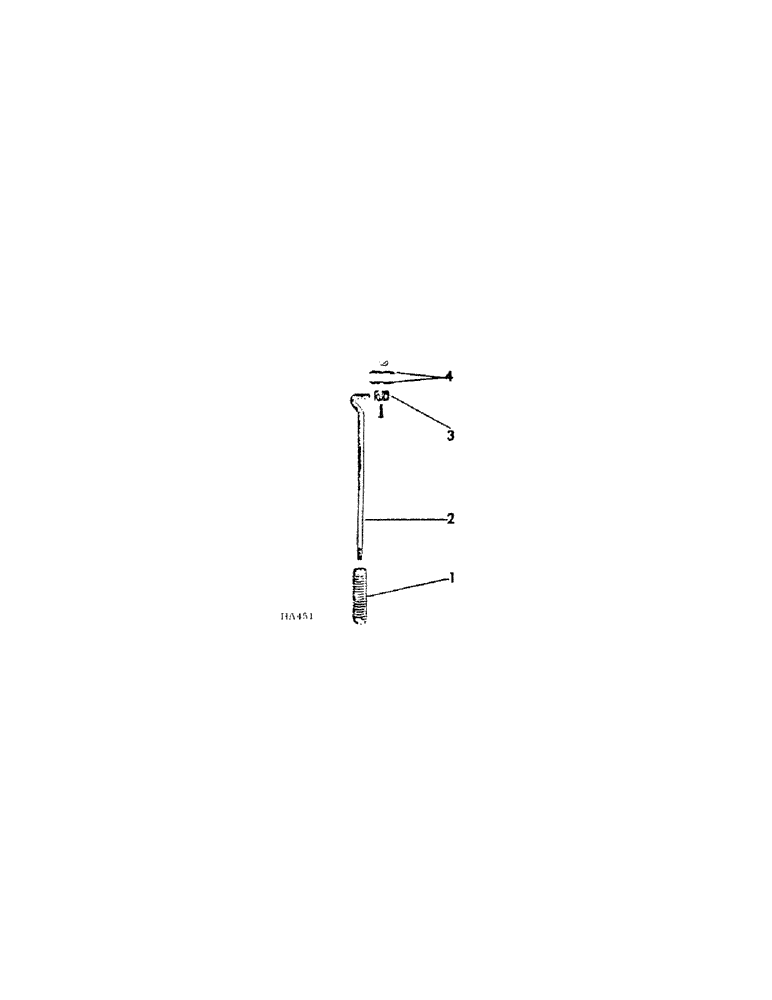

Схема запчастей Case IH 620 - (A-67[1]) - HYDRAULIC HOSE SUPPORT
3
4
2
1

Артикул

Название

Примечание

Количество

1

515031R11

SPRING

ASSY, hose support, includes 2, SA1378A, plug

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

SA1378A

PLUG

spring

2шт.

2

515028R1

ROD

hose support

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

3

515029R1

BRACKET

hose clamp

2шт.

4

515030R1

CLAMP

hose

4шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT, 3/8-16 x 1-3/4 carriage

2шт.

126032

WING NUT,3/8"-16

NUT, 3/8-16 wing

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

Выбрано товаров: 11
