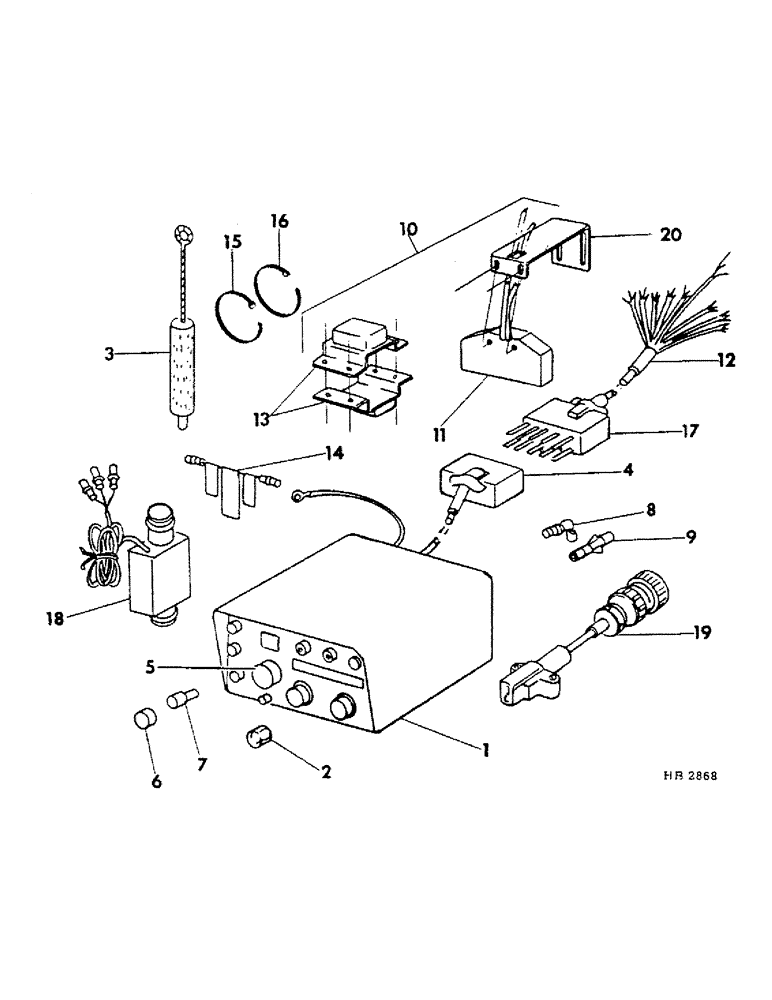

Запчасти Case IH 620 (A-65) - SEED FLOW MONITOR
№
Артикул
Название
Примечание
Количество
1
79299C1
CONSOLE
seed flow monitor, replaces R60709C1
1шт.
133924C1
DECAL
PRODUCT GRAPHIC, seed flow
1шт.
2
106652
FUSE,3 Amp, Type 3AG
3 amp
1шт.
3
128817C1
BRUSH, COMMUTATOR
BRUSH, seed sensor cleaning
1шт.
4
128814C1
SOCKET
female connector
1шт.
5
128816C1
BUZZER
sonalert
1шт.
6
58499C1
LENS
amber
1шт.
7
58554C1
BULB,C2F, #1892, 14V
LAMP
1шт.
8
58558C1
SUPPRESSOR
spark plug
1шт.
9
58559C1
SUPPRESSOR
distributor
1шт.
10
819972C91
SENSOR
KIT, granular shaft sensor, consists of (1) sensor 818367C91, (1) magnet 818368C91, (1) bracket 818369C91
1шт.
11
818367C91
SENSOR
ASSY, shaft rotation, consists of (4) straps 58556C1, (2) screw 167047, (2) washer 121841
1шт.
167047
SELF-TAP SCREW,Cross Pan Hd, #8 - 32 x 1/2"
SCREW, 8-32 x 1/2 type D pan-hd
2шт.
121841
LOCK WASHER,#8
WASHER, LOCK, #8
2шт.
12
819974C91
HARNESS
single drill wiring
1шт.
12
819975C91
HARNESS
second drill wiring
1шт.
12
819976C91
HARNESS
third drill wiring
1шт.
12
819977C91
HARNESS
fourth drill wiring
1шт.
13
818368C91
MAGNET
ASSY, feed shaft, consists of (2) magnet (NNS), (2) screw 25629R1, (2) nut 134524, (2) washer 131043
1шт.
25629R1
SCREW, 4-40 x 1/4 pan-hd-sltd
2шт.
225-14104
NUT,#4-40
4-40 hex.
2шт.
131043
LOCK WASHER,#4
Washer, Lock, #4
2шт.
14
58557C1
ELECTRICAL WIRE
WIRE, shortening
1шт.
15
58555C1
FASTENER
STRAP, tie 7 in.
1шт.
16
58556C1
CABLE TIE
STRAP, tie 14 in.
1шт.
17
128813C1
CONNECTOR,ELECTRIC
PLUG, male connection socket
1шт.
18
819971C91
SENSOR
seed
1шт.
19
819973C1
CABLE
adaptor, to convert cyclomiter 2 console to grain drill seed flow system
1шт.
20
818369C91
BRACKET
sensor feed shaft, consists of (1) bracket (NSS), (2) screw 450644, (2) nut 120622, (2) washer 131015, (2) washer 121841
1шт.
450644
BEARING ASSY,50 mm ID x 110 mm OD x 27 mm
8-32 x 3/8 hex-hd mach
2шт.
120622
NUT,#8-32
2шт.
NLS
NO LONGER SERVICED
.188 x .438 x .036
2шт.
121841
LOCK WASHER,#8
WASHER, LOCK, #8
2шт.
Выбрано товаров: 33
