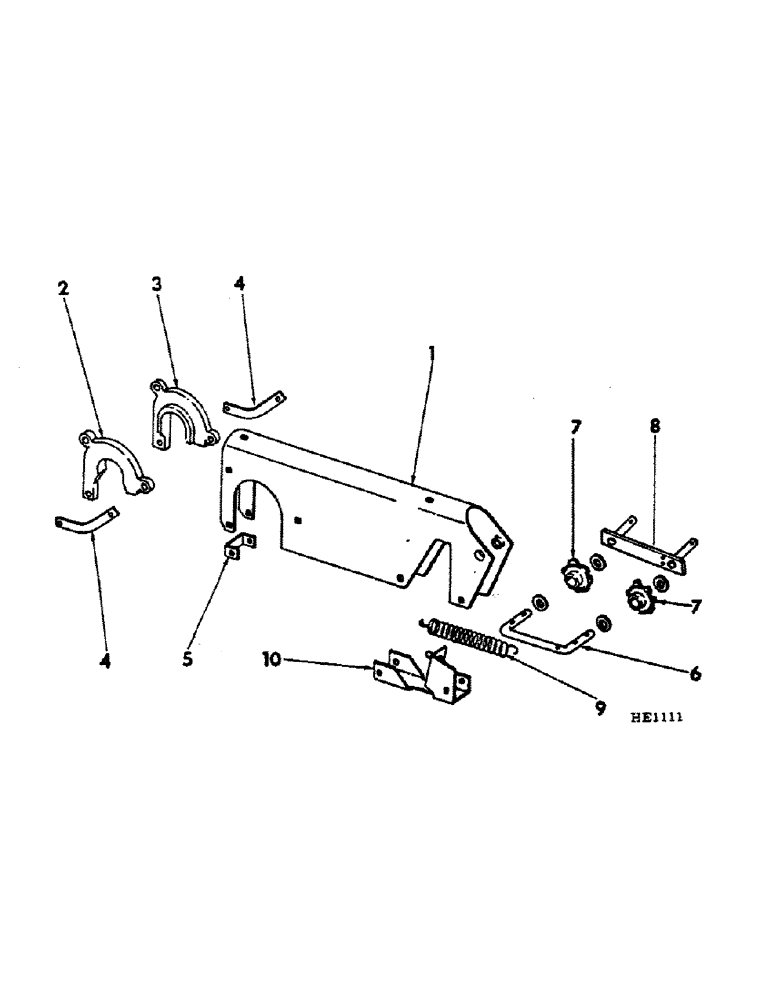

Запчасти Case IH 620 (A-06) - MAIN DRIVE CHAIN SHIELD

1

SHIELD, main drive chain for service order 1, 819459C1, shield, 1, 819455C1, bracket assy and 819457C1, sprocket

1шт.

1

819459C1

SHIELD

main drive chain, machines built June 1976 & since

1шт.

2

601225R1

SHIELD

BEARING, shield RH

1шт.

3

601226R1

SHIELD

BEARING, shield LH

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16-18 x 5/8 hex-hd

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

2шт.

19576R1

BOLT,Short NK, 5/16"-18 x 7/8", G2, Full Thd

5/16-18 x 7/8 type 1 crg

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 hex lock

6шт.

4

605979R1

BRACE

STRAP, bearing

2шт.

5

601241R1

CHANNEL

CLIP, shield rear tie

1шт.

6

ROD, chain tightener for service order 1, 819455C1, bracket assy and 2, 819457C1, sprocket

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

5шт.

178373R1

WASHER

.531 x 1.00 x .054

6шт.

7

819499C1

SPROCKET ASSY.

SPROCKET ASSY, chain tightener cast, for service of cast sprocket, machines built prior to June 1976

2шт.

7

819457C1

SPROCKET

chain tightener urethane, machines built June 1976 & since

2шт.

8

819455C1

BRACKET

ASSY, chain tightener, machines built June 1976 & since

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

21796R1

WASHER

.656 x 1.000 x .054

6шт.

9

626206R1

SPRING

tightener rod

1шт.

10

816617C1

SUPPORT

ASSY, chain shield

1шт.

Q3516

PIN

1/4 x 2 std-hd-dld

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.
