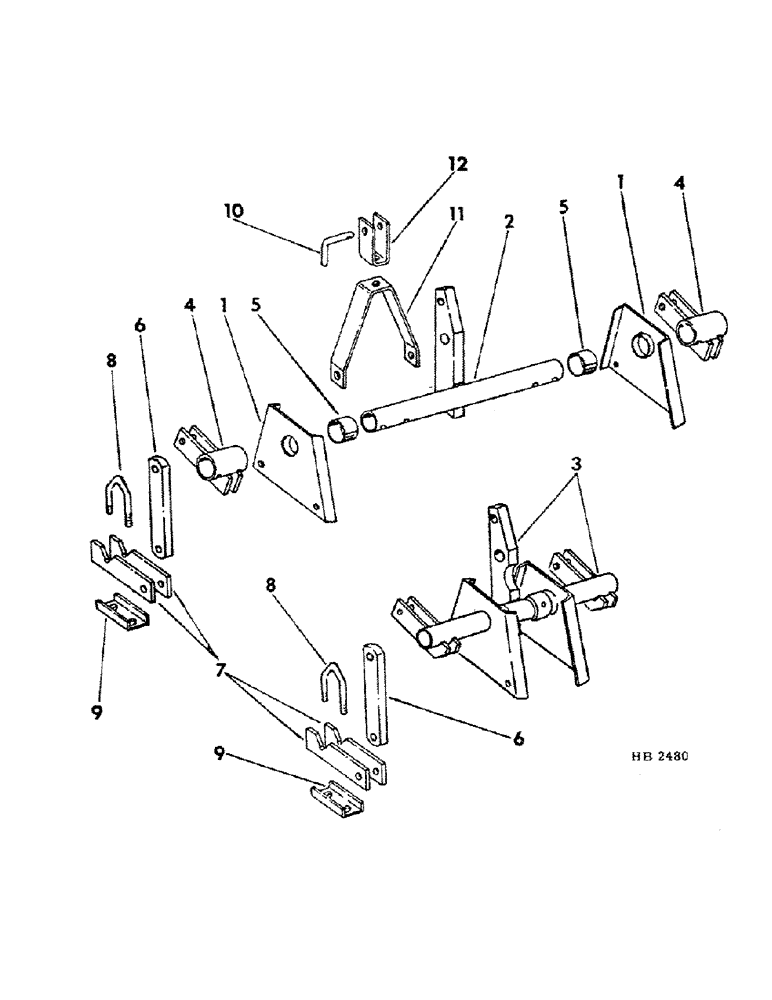

Запчасти Case IH 620 (A-64) - HYDRAULIC LIFT, 14 X 6, 16 X 6 AND 14 X 7 SIZES
№
Артикул
Название
Примечание
Количество
1
816381C1
BRACKET
hyd cyl rockshaft, machines prior to May 1974
2шт.
180173
BOLT,Hex, 1/2" - 13 x 1", Gr 5
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
2
ROCKSHAFT ASSY, hydraulic lift, machines prior to May 1974, for service order 1, 816382C3, rockshaft assy
1шт.
3
816382C3
ROCKSHAFT
ASSY, hydraulic lift machines built May 1974 & since
1шт.
180173
BOLT,Hex, 1/2" - 13 x 1", Gr 5
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
4
816388C1
ARM
ASSY, rockshaft pipe, machines prior to May 1974
2шт.
19998R1
PIN,1/2" x 2 1/2", Coiled
4шт.
5
270546R1
SPACER, rockshaft retaining, machines prior to May 1974
2шт.
6
816391C1
BAR
rockshaft connecting
2шт.
27-10161
CLEVIS PIN,5/8" x 1.610"
PIN, 5/8 x 1-23/32 rod-end-dld
2шт.
103385
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), 1/8" x 1"
2шт.
608701R1
WASHER
.656 x 1.250 x .054
2шт.
7
816392C1
ARM
rockshaft lift
4шт.
27-10161
CLEVIS PIN,5/8" x 1.610"
PIN, 5/8 x 1-23/32 rod-end-dld
2шт.
103385
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), 1/8" x 1"
2шт.
21782R1
WASHER
.656 x 1.250 x .054
2шт.
8
603392R1
BOLT,U, 5/8" - 11 x 3 9/16"
U-BOLT, rockshaft lift arm
2шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
5/8-11 hex.
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
9
603393R1
CHANNEL
rockshaft lift arm retainer
2шт.
10
600829R2
ROD
cylinder lock
1шт.
520175R1
CLIP
PIN, quick-attachable cotter
1шт.
11
816394C1
YOKE
hydraulic lift lock
1шт.
180173
BOLT,Hex, 1/2" - 13 x 1", Gr 5
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
12
816395C1
YOKE
rockshaft lock
1шт.
17585R1
BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8
5/8-11 x 2-1/2 hex-hd-dld
1шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
5/8-11 hex.
1шт.
103385
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), 1/8" x 1"
1шт.
Выбрано товаров: 34
