Запчасти Case IH 620 (A-62) - HYDRAULIC LIFT, 20 X 6, 24 X 6, 28 X 6, 20 X 7, 24 X 7, AND 16 X 8

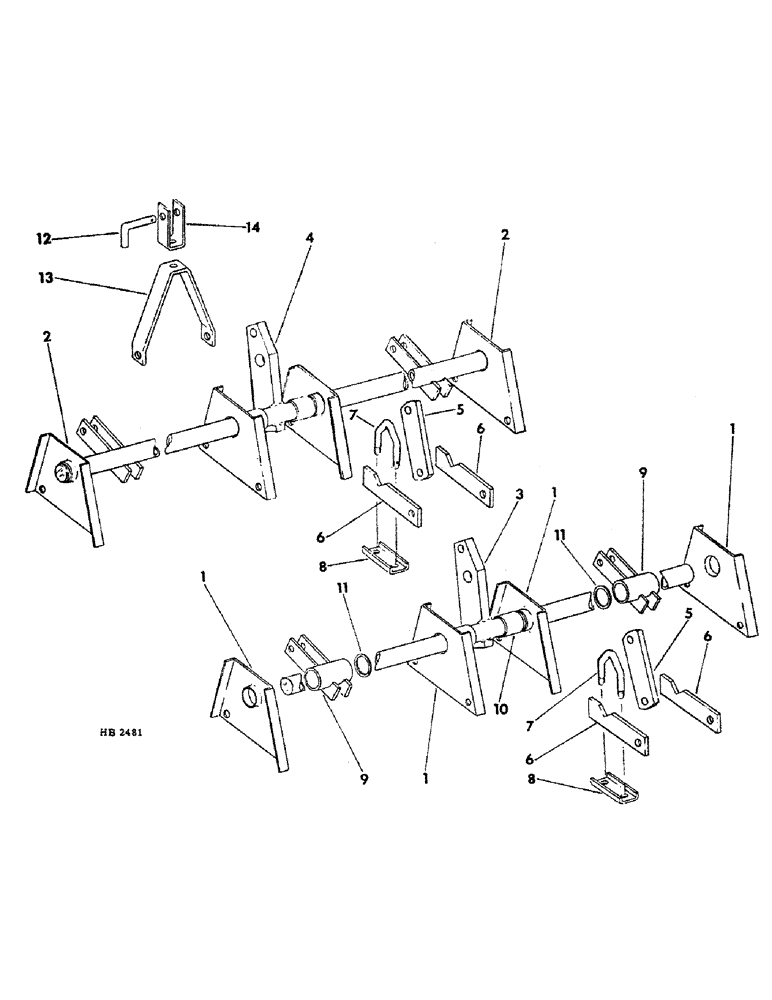

Схема запчастей Case IH 620 - (A-62) - HYDRAULIC LIFT, 20 X 6, 24 X 6, 28 X 6, 20 X 7, 24 X 7, AND 16 X 8
1
1
6
7
2
5
9
3
12
1
8
7
9
6
10
1
11
6
11
14
8
2
13
5
6
4

Артикул

Название

Примечание

Количество

1

816381C1

BRACKET

hyd cyl rockshaft, machines prior to May 1974

4шт.

2

816381C1

BRACKET

hydraulic cyl rockshaft machines built May 1974 & since

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2 per brkt Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

3

ROCKSHAFT ASSY, hydraulic lift, 20 x 6 and 16 x 8, machines prior to May 1974, for service order 1, 816383C3, rockshaft assy

1шт.

3

ROCKSHAFT ASSY, hydraulic lift, 24 x 7 size machine, machines prior to October 1973, for service order 1, 819069C1, rockshaft assy

1шт.

3

ROCKSHAFT ASSY, hydraulic lift, 24 x 6, 28 x 6 and 20 x 7, machines prior to October 1973, for service order 1, 819074C1, rockshaft assy

1шт.

4

816383C3

ROCKSHAFT

ASSY, hydraulic lift, 20 x 6 and 16 x 8, machines built May 1974 & since

1шт.

4

819074C1

SHAFT

ROCKSHAFT ASSY, hydraulic lift, 24 x 6, 28 x 6 and 20 x 7, machines built 1973 & since

1шт.

4

819069C1

SHAFT

ROCKSHAFT ASSY, hydraulic lift, 24 x 7, machines built 1974 & since

1шт.

5

816391C1

BAR

rockshaft connecting

2шт.

27-10161

CLEVIS PIN,5/8" x 1.610"

PIN, 5/8 x 1-23/32 rod-end-dld

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

608701R1

WASHER

.656 x 1.250 x .054

2шт.

6

816392C1

ARM

rockshaft lift

4шт.

27-10161

CLEVIS PIN,5/8" x 1.610"

PIN, 5/8 x 1-23/32 rod-end-dld

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

21782R1

WASHER

.656 x 1.250 x .054

2шт.

7

603392R1

BOLT,U, 5/8" - 11 x 3 9/16"

U-BOLT, rockshaft lift arm

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

603393R1

CHANNEL

rockshaft lift arm retainer

2шт.

9

816388C1

ARM

ASSY, rockshaft pipe, machines prior to May 1974

2шт.

19998R1

PIN,1/2" x 2 1/2", Coiled

4шт.

10

270546R1

SPACER, rockshaft retaining, machines prior to May 1974

2шт.

11

21719R1

WASHER

2-1/32 x 2-3/4 x 11 ga, machines prior to May 1974

4шт.

12

600829R2

ROD

cylinder lock

1шт.

520175R1

CLIP

PIN, quick-attachable cotter

1шт.

13

816394C1

YOKE

hydraulic lift lock

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

14

816395C1

YOKE

rockshaft lock

1шт.

17585R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

5/8-11 x 2-1/2 hex-hd-dld

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

Выбрано товаров: 37
