Запчасти Case IH 620 (A-61) - CASTER WHEEL AXLE, FOR USE ON 20 X 6, 24 X 6, 28 X 6, 20 X 7, 24 X 7, AND 16 X 8

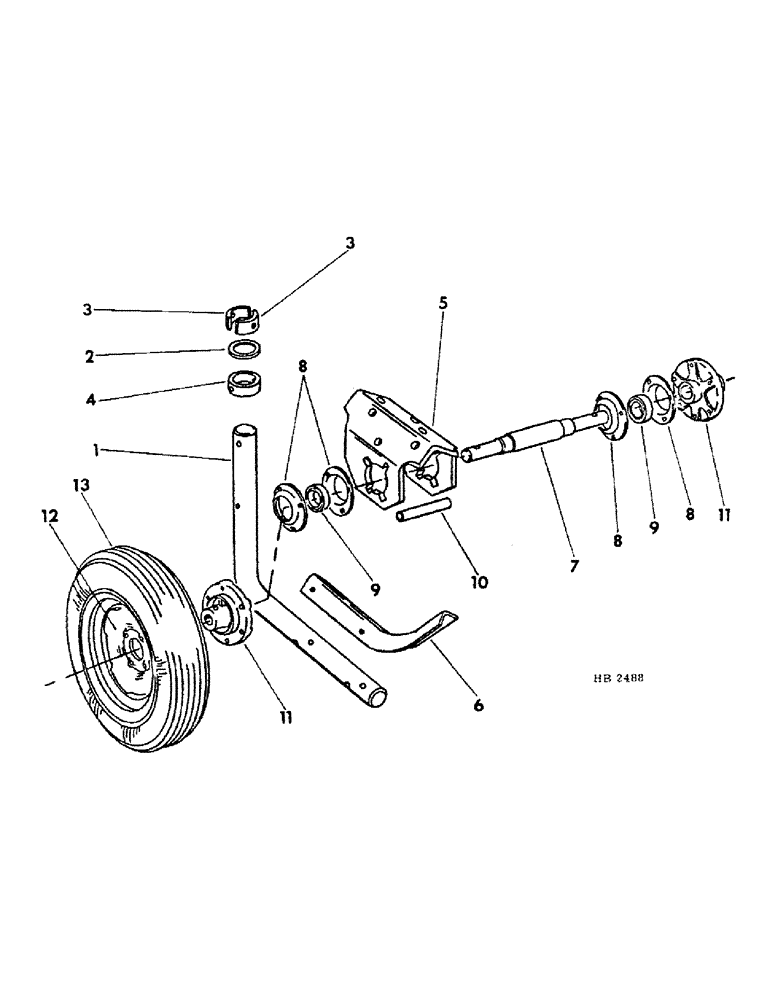

Схема запчастей Case IH 620 - (A-61) - CASTER WHEEL AXLE, FOR USE ON 20 X 6, 24 X 6, 28 X 6, 20 X 7, 24 X 7, AND 16 X 8
13
12
8
10
1
9
11
6
3
2
9
8
4
5
8
3
7
11

Артикул

Название

Примечание

Количество

1

816556C4

SHANK

axle

1шт.

2

521159R1

WASHER

2.312 x 3 x 11 ga plain

1шт.

3

819447C1

CLAMP

shank locking

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8-16 x 3 hex-hd

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex lock

1шт.

4

816007C2

SPACER

BUSHING, axle shank lock collar

1шт.

19356R1

PIN,3/8" x 3", Coiled

1шт.

5

819449C1

CARRIER

axle and bearing

1шт.

6

816557C2

ANGLE

stone kicker

1шт.

23061R1

BOLT,Hex, 5/8" - 11 x 4", Gr 8

5/8-11 x 4 hex-hd type 8

4шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8-11 hex serr flanged lock

4шт.

7

819448C2

AXLE

wheel

1шт.

8

663562R1

FLANGE

TTE, bearing

4шт.

18503R1

BOLT,Hex, 1/2" - 13 x 7 1/2", Gr 5

1/2-13 x 7-1/2 hex-hd

2шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2-13 x 1-1/2 crg

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 hex serr flange

6шт.

9

818370C91

SPHERICAL BEARING,40mm ID x 80mm OD x 26.92mm W

BEARING, wheel

2шт.

10

27797R1

SPACER,1/2" Pipe x 5"

1/2 STD x 5

2шт.

11

816559C3

HUB

wheel

2шт.

816576C1

PIN

caster wheel hub

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

4шт.

12

481344R91

WHEEL

14 x 8 KB

2шт.

617918R1

BOLT,9/16" - 18 x 1 15/32"

wheel

12шт.

13

TIRE, 8.5L-14 4 ply WI tubeless

2шт.

387841R91

VALVE

tubeless tire, TR413

2шт.

Выбрано товаров: 25
