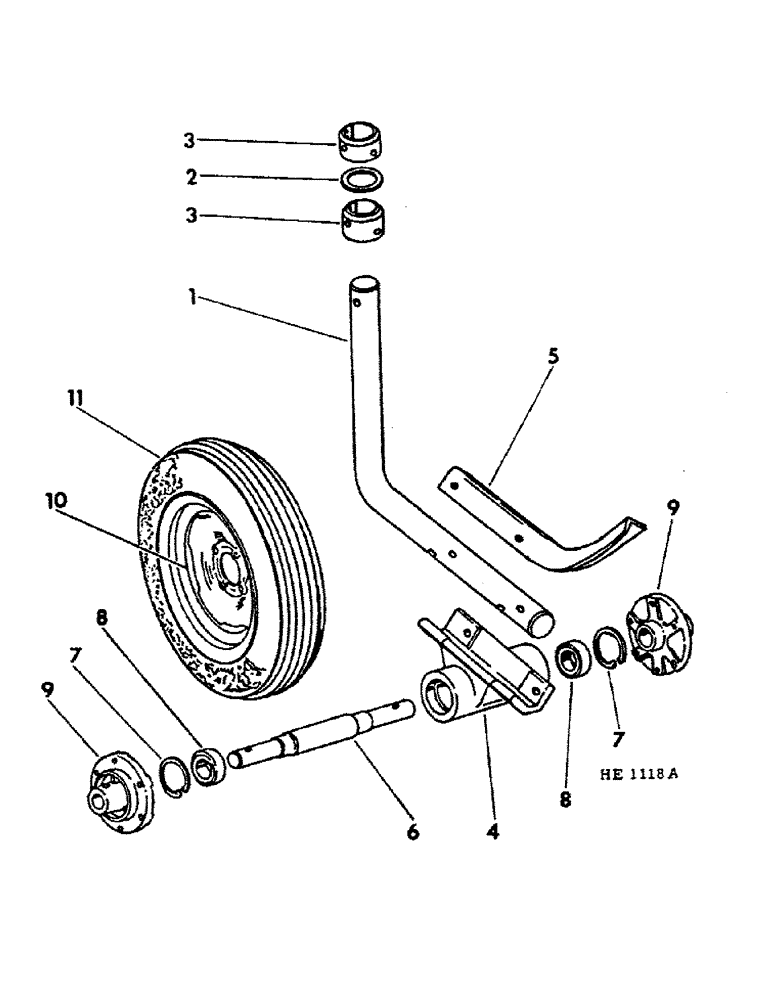

Запчасти Case IH 620 (A-60) - CASTER WHEEL AXLE, FOR USE ON 20 X 6, 24 X 6, 28 X 6, 20 X 7, 24 X 7, AND 16 X 8, PRIOR TO JUNE 1976

1

816556C4

SHANK

axle

1шт.

2

521159R1

WASHER

2/312 x 3 x 11 ga plain

1шт.

3

816007C2

SPACER

BUSHING, axle shank lock collar

1шт.

19356R1

PIN,3/8" x 3", Coiled

2шт.

4

816560C2

CARRIER

axle and bearing

1шт.

5

816557C2

ANGLE

stone kicker

1шт.

23061R1

BOLT,Hex, 5/8" - 11 x 4", Gr 8

5/8-11 x 4 hex-hd type 8

4шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8-11 hex serr flanged lock

4шт.

6

816558C1

AXLE

wheel

1шт.

7

659676R1

SNAP RING,3.156", Int, #315

Ring, Snap, , brg 3.156", Int, #315

2шт.

8

662519R91

BALL BEARING,1.5312" ID x 80 mm OD x 1.083"

wheel

2шт.

9

816559C3

HUB

wheel

2шт.

816576C1

PIN

caster wheel hub

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

4шт.

10

481344R91

WHEEL

14 x 8 KB

2шт.

617918R1

BOLT,9/16" - 18 x 1 15/32"

wheel

12шт.

11

TIRE, 8.5L-14 4 ply WI tubeless

2шт.

387841R91

VALVE

tubeless tire, TR413

2шт.
