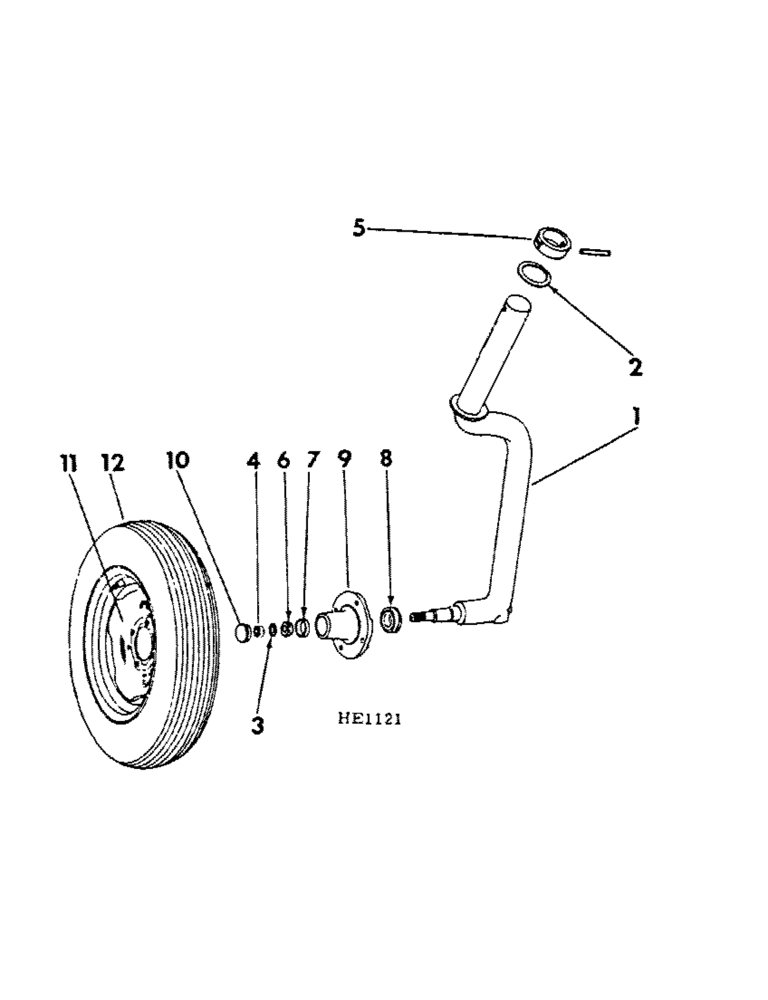

Запчасти Case IH 620 (A-59) - CASTER WHEEL AXLE, 14 X 6, 16 X 6, 14 X 7

1

619931R91

AXLE

ASSY, caster wheel

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

2

21719R1

WASHER

2.031 x 2.750 x .105

1шт.

3

467750R1

WASHER

2.781 x 1.500 x .105

2шт.

4

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 hex-sltd

1шт.

5

619930R1

BUSHING

axle lock collar

1шт.

19525R1

PIN,3/8" x 2 3/4", Coiled

3/8 x 3/4 coiled spring

1шт.

6

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, spindle outer bearing

1шт.

6

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

7

651814R1

BEARING CUP

CUP, spindle outer bearing

1шт.

8

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

w/SEAL, spindle inner

1шт.

9

591535R1

HUB

caster wheel, replaces 619353R1

1шт.

10

602959R1

PLUG

CAP, hub

1шт.

11

455169R92

WHEEL

15 x 4-1/2 KB

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

4шт.

12

TIRE, 7.60-15 4 ply I1 tubeless

1шт.

387897R91

VALVE STEM

VALVE, tubeless tire TR415

1шт.
