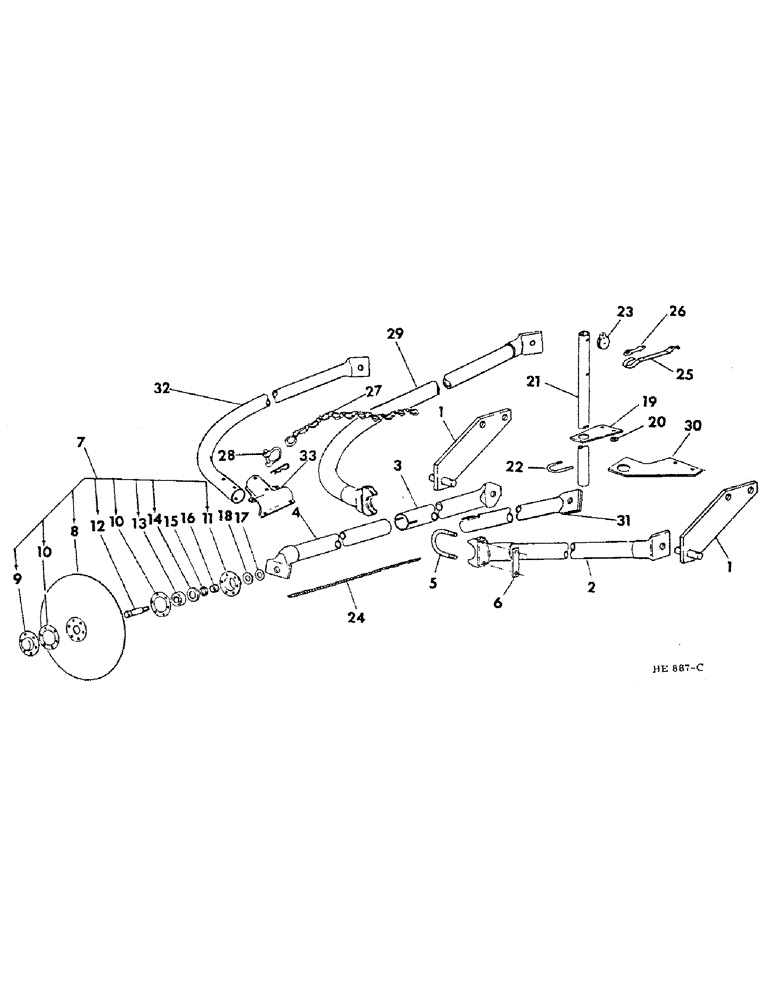

Запчасти Case IH 620 (A-58) - DISK MARKER

1

816472C1

PIVOT

ASSY, marker front and rear only one used w/endwise transport

2шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

21753R1

WASHER

.781 x 1.500 x .054

2шт.

2

816419C1

BRACE

ASSY, marker support, single drill marker all sizes, and two drill marker for 14 x 6

1шт.

2

596520R12

TUBE ASSY, disk marker brace, machines prior to 1978, not used w/endwise transport, two drill marker for 16 x 6, 20 x 6, 24 x 6, 28 x 6, 14 x 7, 20 x 7, 24 x 7 and 16 x 8, three drill marker for 14 x 6, 16 x 6 and 14 x 7

1шт.

3

815742C1

TUBE,1.775" ID, 2" OD, 26, 2.5" Length

ASSY, marker disk, single drill marker all sizes, and two drill marker for 14 x 6

1шт.

3

596518R11

TUBE,73.95, 0.95" Length

ASSY, disk marker inner, two drill marker for 16 x 6, 20 x 6, 24 x 6, 28 x 6, 14 x 7, 20 x 7, 24 x 7 and 16 x 8, three drill marker for 14 x 6, 16 x 6 and 14 x 7

1шт.

4

596516R11

TUBE,1767.8, 33 mm Length

ASSY, disk telescoping, single drill marker all sizes, and two drill marker for 14 x 6

1шт.

4

816672C1

TUBE,2730.5, 33 mm Length

ASSY, disk telescoping, two drill marker for 16 x 6, 20 x 6, 24 x 6, 28 x 6, 14 x 7, 20 x 7, 24 x 7 and 16 x 8, three drill marker for 14 x 6, 16 x 6 and 14 x 7

1шт.

5

596521R2

BOLT,U, 5/16" - 24 x 3 3/4"

U-BOLT, marker disk tube

1шт.

120368

NUT,5/16"-24, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

6

816581C1

BAR

u-bolt clamping

1шт.

7

815746C92

DISC

DISK ASSY, marker, consists of (1) disk 603004R1, (1) cap 602990R1, (2) gasket 602992R1, (1) retainer 602989R1, (6) rivet 104081, (1) bolt 602987R1, (1) nut 121358, (1) washer 121574, (1) bearing 465004R91, (1) flange 602994R1

1шт.

8

603004R2

PLOW DISC

DISK, marker

1шт.

9

602990R1

CAP

disk

1шт.

10

602992R1

GASKET

bearing retainer

2шт.

11

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

bearing

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 button-hd small

6шт.

12

602987R1

BOLT

BOLT, disk

1шт.

121358

YOKE

5/8-18 hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

13

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

disk

1шт.

14

602994R1

FLANGE

seal

1шт.

15

464628R1

SEAL

dirt, replaces 602993R1

1шт.

16

602988R1

SPACER

seal retainer

1шт.

17

591714R1

WASHER

.719 x 1.250 x .054

1шт.

18

21712R1

WASHER

.719 x 1.500 x .105

1шт.

19

815747C1

BAR

marker rope mast pipe

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20

21309R1

WASHER

.406 x .875 x .179 for use w/grass seed

1шт.

21

815748C1

TUBE,33.4 mm OD, 980.4 mm Length

PIPE, rope pulley mast

1шт.

22

18344K

BOLT,3/8" - 16 x 2 1/8", Steel

U-BOLT, mast pipe

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

23

819043C91

PULLEY

ASSY, rope

4шт.

119198

COTTER PIN,3/8" x 2 1/2"

PIN SPLIT (COTTER), 3/8" x 2 1/2"

4шт.

24

ROPE, 3/8 x 42 foot sisal pull, single drill marker all sizes, and two drill marker for 14 x 6, dealer to service locally

1шт.

24

ROPE, 3/8 x 60 ft sisal pull & balance, two drill marker for 16 x 6, 20 x 6, 24 x 6, 28 x 6, 14 x 7, 20 x 7, 24 x 7 and 16 x 8, three drill marker for 14 x 6, 16 x 6 and 14 x 7, dealer to service locally

1шт.

25

615712R91

GUIDE

ASSY, marker rope, includes 1, 106883, rivet and 1, FA4916, spring

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 x 3/4 carriage

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

21752R1

WASHER

.406 x 1.500 x .054

1шт.

26

FA4916

SPRING

marker rope guide

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

1шт.

27

819168C1

CHAIN, marker hold-up

1шт.

28

819167C1

SHACKLE

1/4 chain

1шт.

586591R1

COTTER PIN

PIN, quick-attachable cotter for use w/pin type shackle built, Serial Range: prior-1979

1шт.

29

819962C1

TUBE,61.4" Length

ASSY, disk marker brace machines built 1978 & since, use w/endwise transport two drill marker for 16 x 6, 20 x 6, 24 x 6, 28 x 6, 14 x 7, 20 x 7, 24 x 7 and 16 x 8 three drill marker for 14 x 6, 16 x 6 and 14 x 7

1шт.

30

819961C2

BAR

marker rope mast pipe, for use on lead machine with endwise transport or machines built 1978 & since

1шт.

31

818338C1

TUBE,1878.3 mm Length

ASSY, disk marker inner

1шт.

32

818326C1

TUBE

ASSY, disk marker brace

1шт.

33

818309C1

TEE

marker tube junction

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

4шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8-16 x 3 hex-hd

2шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex prev torque

6шт.

819670C91

PACKAGE, marker inner tube & brace use w/multi-drills consists of (1) tube 818338C1, (1) tube 818326C1, (1) tee 818309C1, (4) bolt 180124, (2) bolt 180138, (6) nut 9413953

1шт.
