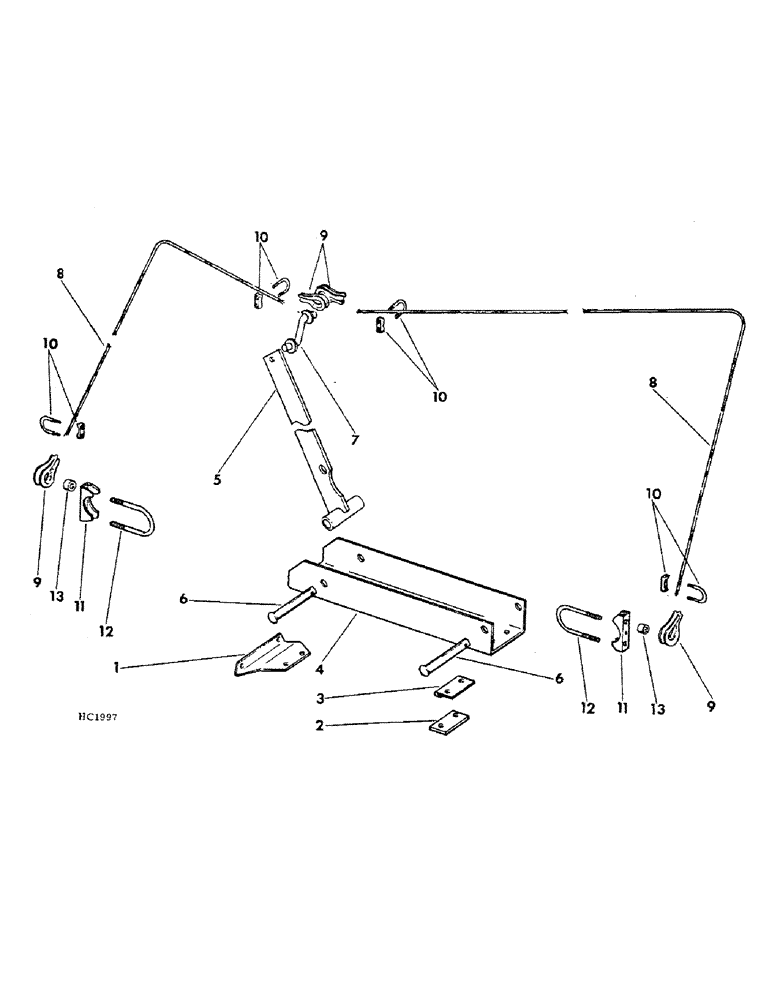

Запчасти Case IH 620 (A-57) - DISK MARKER HYDRAULIC

1

819050C1

SUPPORT

cylinder channel

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

2

819042C1

BAR

cylinder channel spacer

1шт.

3

819081C1

SUPPORT

cylinder channel spacer

1шт.

4

819051C1

CHANNEL

cylinder

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

819049C1

ARM

ASSY, cable crank

1шт.

6

651029R1

HEADED PIN,1" x 6 5/8"

PIN, 1 x 6-5/8 std-hd-dld

2шт.

471194R1

AXLE PIN

PIN, quick-attachable cotter

1шт.

614451R1

WASHER

1.031 x 1.750 x .105

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

7

819969C1

ROD

ASSY, cable crank

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

21782R1

WASHER

.656 x 1.500 x .054

4шт.

8

819052C2

CABLE

25 foot marker lift

1шт.

8

819053C1

CABLE

18 foot marker lift

1шт.

9

819054C1

EYE

THIMBLE, cable 3/16

4шт.

10

819055C1

CLAMP

cable 3/16

8шт.

11

190910R1

CLAMP

SADDLE, marker tube clamp

2шт.

12

596521R2

BOLT,U, 5/16" - 24 x 3 3/4"

U-BOLT, marker tube

2шт.

120368

NUT,5/16"-24, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

134238R1

WASHER

.344 x 1.000 x .054

8шт.

13

86224H

SPACER,1/4" Pipe x 3/8"

Cable thimble 1/4" Pipe x 3/8"

4шт.
